Fasco D0396 Motor 1/20 HP 1450 RPM 208-230V

Product Description

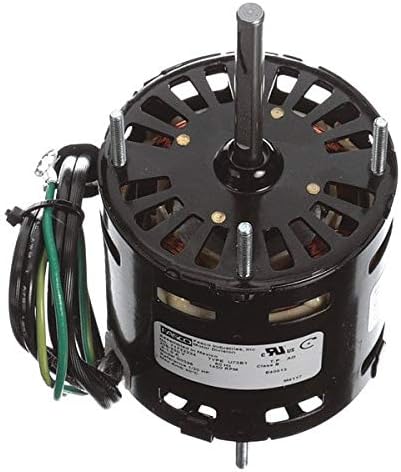

The Fasco D0396 is an OEM replacement motor designed for use in various applications. With a power rating of one twenty horsepower and a speed of one thousand four hundred fifty RPM, this shaded pole motor operates efficiently at a voltage of two hundred eight to two hundred thirty volts. The diameter of the motor is three point three inches, making it suitable for compact installations.

• Single-phase shaded pole design
• Thermally protected with automatic reset
• Compatible with various HVAC applications

Product Highlights

Ideal for general use in HVAC and blower applications, the Fasco D0396 motor meets default and specific requirements in electrical efficiency and operational safety.

Product Information

Standard Information

• Brand: Fasco
• MPN: D0396

Technical Specifications

• Motor Type: Shaded Pole
• Power: 1/20 HP
• Voltage: 208-230V
• RPM: 1450
• Diameter: 3.3 inches
• Speed: 1
• Service Factor: 1
• Amperage: 0.90-1.00 A
• Mounting Type: Extended Stud
• Enclosure: Open Air-Over
• Lead Length: 12.25 inches
• Max Ambient Temp: 40°C
