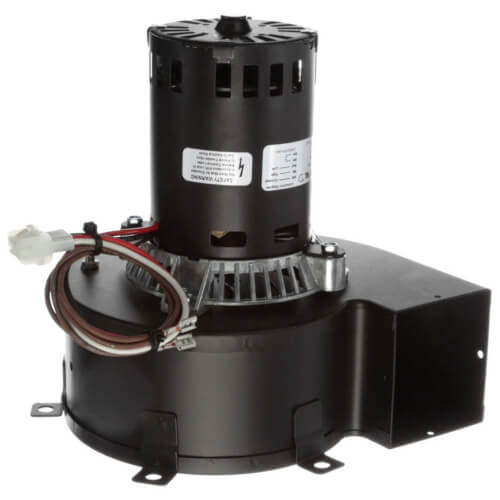

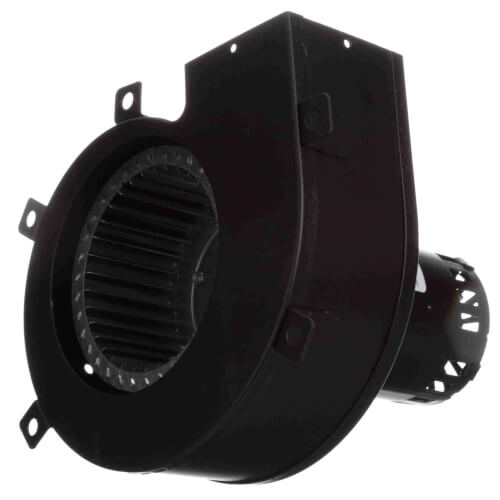

Fasco A306 2-Speed 3350/2900 RPM 1/30 HP Intercity Draft Inducer Motor (208/230V)

Product Description

The Fasco A306 is a 2-speed draft inducer motor designed for HVAC applications. It operates at speeds of 3350 and 2900 RPM and has a power rating of 1/30 HP. This motor is suitable for use with 208 or 230 volt systems. It is an aftermarket replacement component, requiring confirmation of compatibility with original equipment part numbers.

• Two speed operation for flexible performance
• Compatible with ICP part number 7062-4532 and 1097245
• Constructed for reliability in heating and cooling applications

Product Highlights

This draft inducer motor supports efficient venting in HVAC systems.

Product Information

Standard Information

• Brand: Fasco
• MPN: A306

Technical Specifications

• RPM: 3350/2900
• Type: Permanent Split Capacitor
• Voltage: 208/230V
• Amperage: 0.3
• Horse Power: 1/30
• Phase: 1
• Speeds: 2
• Rotation: CCW
• Weight: 6.4 lbs
• Shipping Dimensions: 11.38 x 9.88 x 8.25 inches
• Approvals: CSA, UL
• Max Ambient Temperature: 104°F
• Insulation Class: B
• Enclosure Type: Open Fan Cooled
• Bearings: Sleeve
• Overload Protection: Thermally
