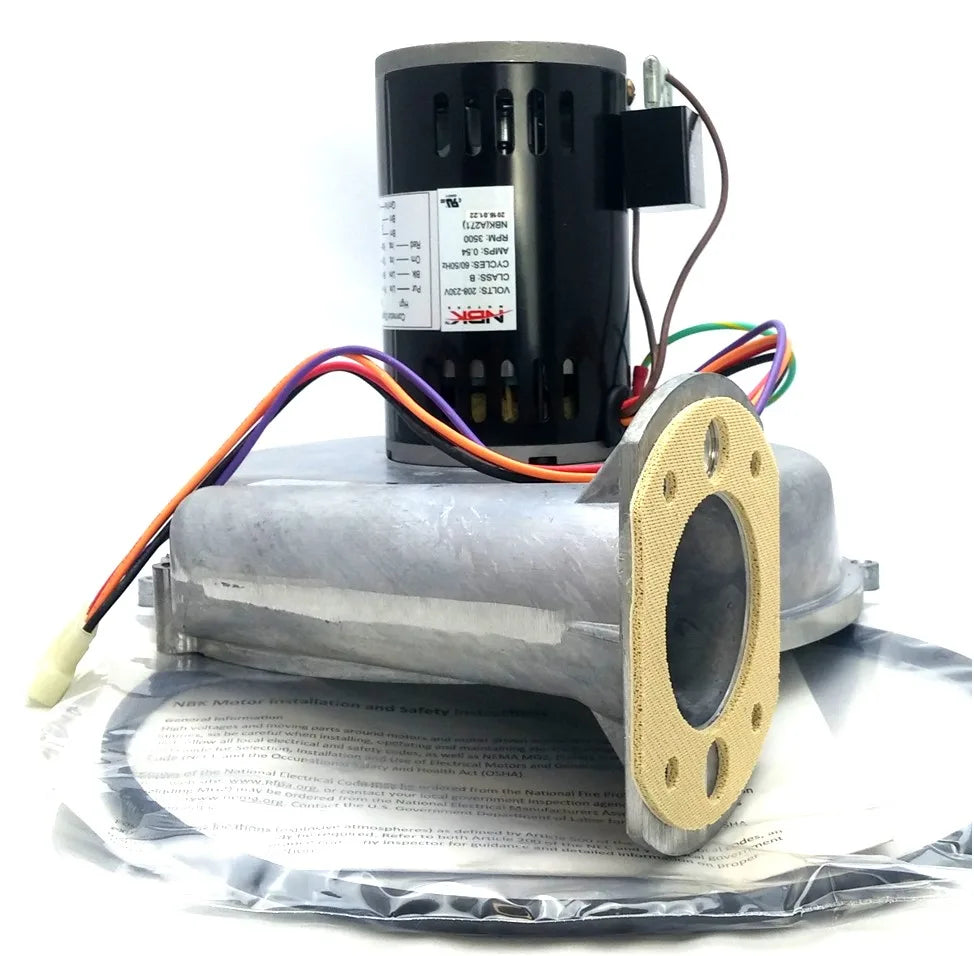

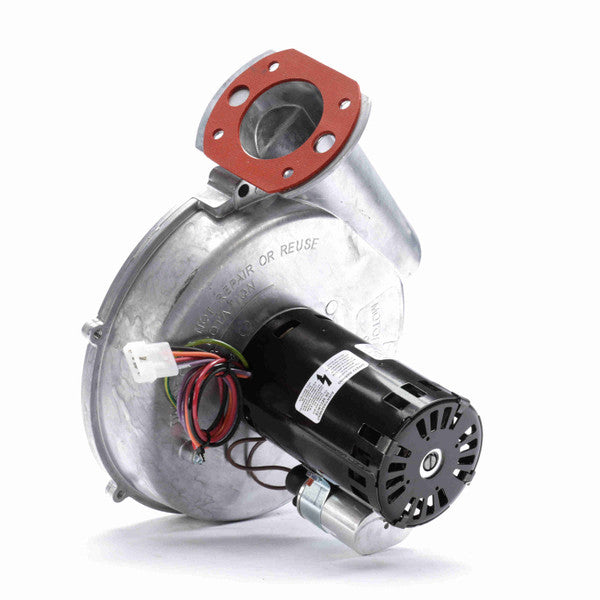

Fasco A271 Permanent Split Capacitor Blower 1/18HP 3500rpm 208-230V 60Hz Replacement Parts

Product Description

The Fasco A271 is a permanent split capacitor blower designed for specific purposes. This 1/18HP blower operates at 3500rpm with a voltage range of 208-230V and 60Hz frequency. It functions efficiently in various applications, replacing OEM parts such as Trane 7062-3969.

• 1/18HP motor with 3500rpm
• Voltage range: 208-230V
• OEM replacement for Trane 7062-3969

Product Highlights

This blower motor by Fasco is suitable for furnaces and other HVAC applications, ensuring reliable performance and durability in demanding environments.

Product Information

Standard Information

• Brand: Fasco
• Model: A271

Technical Specifications

• Horsepower: 1/18
• RPM: 3500
• Voltage: 208-230V
• Frequency: 50/60Hz
• Amperage: 0.62A
• Motor Type: Permanent Split Capacitor
• Blower Wheel Diameter: 7 7/8 inches
• Blower Wheel Width: 3/4 inches
• Inlet Diameter: 8 3/4 inches
• Outlet Diameter: 2 1/4 inches
• Overall Height: 10 1/2 inches
• Overall Width: 9 1/2 inches
• Overall Depth: 8 inches
• Max. Inlet Temp: 200 degrees F
• Insulation Class: B
• Thermal Protection: Auto
• Bearings: Ball
• Phase: 1
