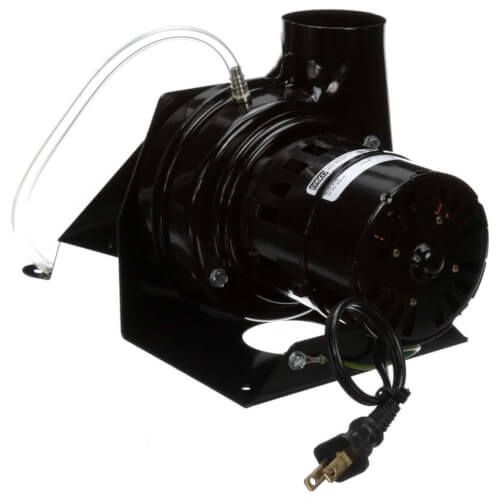

Fasco A139 1-Speed 3000 RPM 1/55 HP Rheem Draft Inducer Motor 115V

Product Description

The Fasco A139 is a 1-speed draft inducer motor with a speed of 3000 RPM and a rating of 1/55 horsepower. This motor operates at 115 volts and is designed for use as an aftermarket replacement part. Confirm compatibility with your original equipment before installation.

• 1-speed operation with a maximum RPM of 3000
• Compatible replacement for Rheem part number 7021-7577
• Features thermally protected overload for safety

Product Highlights

This draft inducer motor is ideal for heating and cooling systems needing efficient airflow. It fits several HVAC applications and is built to replace various Rheem models.

Product Information

Standard Information

• Brand: Fasco
• MPN: A139

Technical Specifications

• RPM: 2970
• Type: Shaded Pole
• Hertz: 50/60
• Phase: 1
• Speeds: 1
• Voltage: 115V
• Amperage: 0.95
• Bearings: Sleeve
• Rotation: CW
• Weight: 5.2 pounds
• Approvals: CSA, UL
• Horse Power: 1/55
• Outlet Shape: Round
• Outlet Flange: No
• Enclosure Type: Open Fan Cooled
• Insulation Class: B
• Shipping Depth: 13.94 inches
• Shipping Width: 6.75 inches
• Shipping Height: 6.38 inches
• Overload Protection: Thermally
• Max Ambient Temp (°F): 104°F
• Air Flow Capacity (CFM): 139
