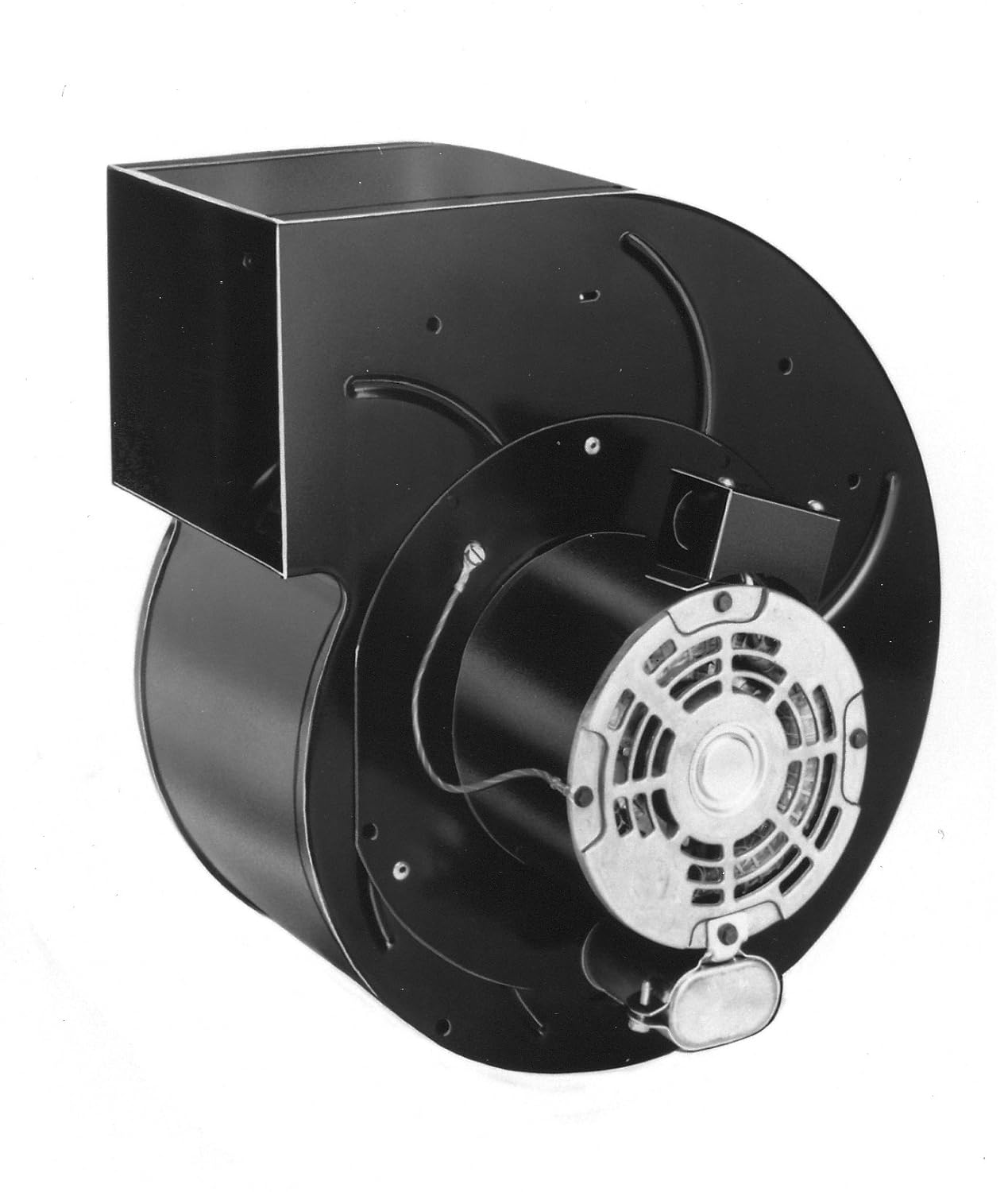

Fasco A1200 Centrifugal Blower 1500/1400 RPM 115/230V

Product Description

The Fasco A1200 Centrifugal Blower is designed for efficient air movement in various heating and ventilation applications. With its 115/230V power input, this blower supports different electrical setups. It features a sleeve bearing for the blower motor shaft, ensuring stability during operation. The motor is thermally protected to prevent overheating. This blower is recognized by Underwriters Laboratories and certified by the Canadian Standards Association, guaranteeing its quality and safety.

• 1,200 CFM free air output-rated centrifugal blower
• Sleeve bearing for blower motor shaft support
• Dual voltage, 115/230V, 60Hz, 8-6.8/4-3.4 amps power input

Product Highlights

The Fasco A1200 Centrifugal Blower offers reliable performance for heating and ventilation needs. Its two-speed operation allows for versatile air flow rates at different static pressures.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• Brand: Fasco
• Model: A1200

Technical Specifications

• Voltage: 230 Volts
• Cooling Method: Air
• Air Flow Capacity: 800 Cubic Feet Per Minute
• Maximum Rotational Speed: 1400 RPM
• Motor: 2-speed, 115/230V, 60 Hz, 8-6.8/4-3.4 amp, sleeve bearing, thermally protected, dual voltage
• Blower Type: Centrifugal, single inlet
• Free Air Output: 1,200 CFM at 1,500/1,400 RPM
• CFM at Static Pressure (SP): 1,260/1,065 CFM at 0.2 SP, 1,240/1,060 CFM at 0.4 SP, 1,200/1,050 CFM at 0.6 SP, 1,150/1,000 CFM at 0.8 SP, 1,075/950 CFM at 1.0 SP, 1,000/900 CFM at 1.2 SP, 925/800 CFM at 1.4 SP, 800/675 CFM at 1.6 SP, 200/200 CFM at 1.8 SP
