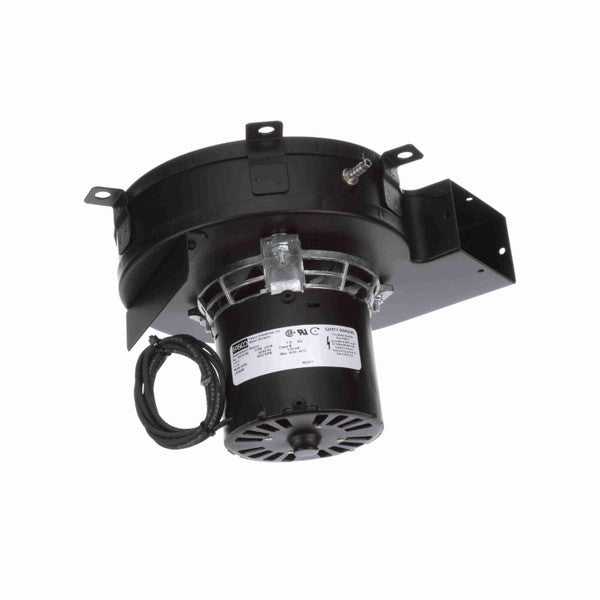

Genteq Motors A090 Draft Inducer 115 Volts 3000 RPM 1/50 HP Replaces Rheem 7021-10268

Product Description

The GENTEQ MOTORS A090 draft inducer operates at 115 Volts and 3000 RPM with 1/50 HP, replacing Rheem 7021-10268. This OEM direct replacement draft inducer blower features thermal protection and open air over design. It is suitable for HVAC applications, ensuring efficient and reliable performance. It comes with two leads, one 22" and one 31", both with stripped ends.

• OEM Direct Replacement - Draft Inducer Blower
• Thermally Protected
• Class B Insulation, 40°C Ambient

Product Highlights

Direct replacement draft inducer blower with thermal protection and open air over design, ideal for HVAC systems.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• Manufacturer Part Number: A090

Technical Specifications

• UPC: 815585025702
• Voltage: 115 V
• Motor Type: Shaded Pole
• Thermal Protection: Thermally
• Speed: 3000 rpm
• Current: 1.1 A
• Number of Speeds: 1
• Frequency: 50/60 Hz
• Phase: 1
• Ambient Temperature: 40 °C
• UL: Yes
• Insulation Class: B
• CSA: Yes
• Blower Outlet Shape: Rectangle
• Motor Enclosure: Open
• Blower Outlet Flange: No
• Bearing Type: Sleeve
• CPM at Static Pressure 0.0: 90
• CPM at Static Pressure 0.2: 86
• CPM at Static Pressure 0.4: 84
• CPM at Static Pressure 0.6: 78
• CPM at Static Pressure 0.8: 73
• CPM at Static Pressure 1.0: 66
• Brand: GENTEQ MOTORS
• MPN: A090
