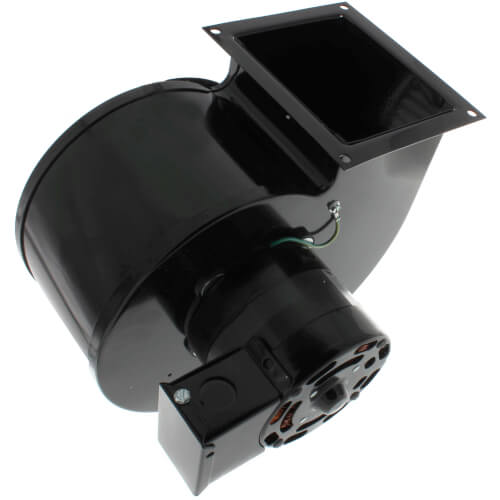

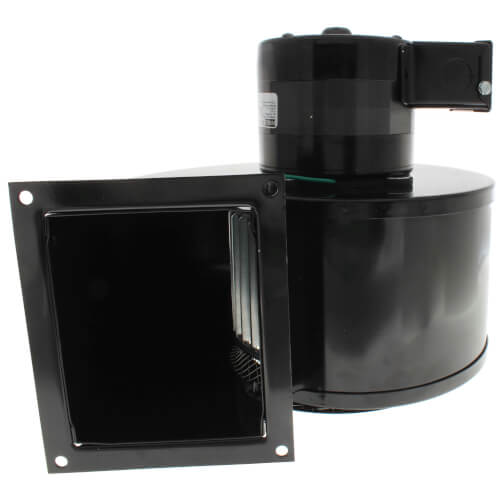

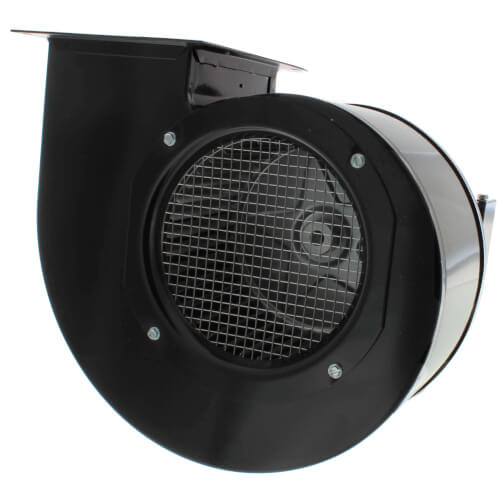

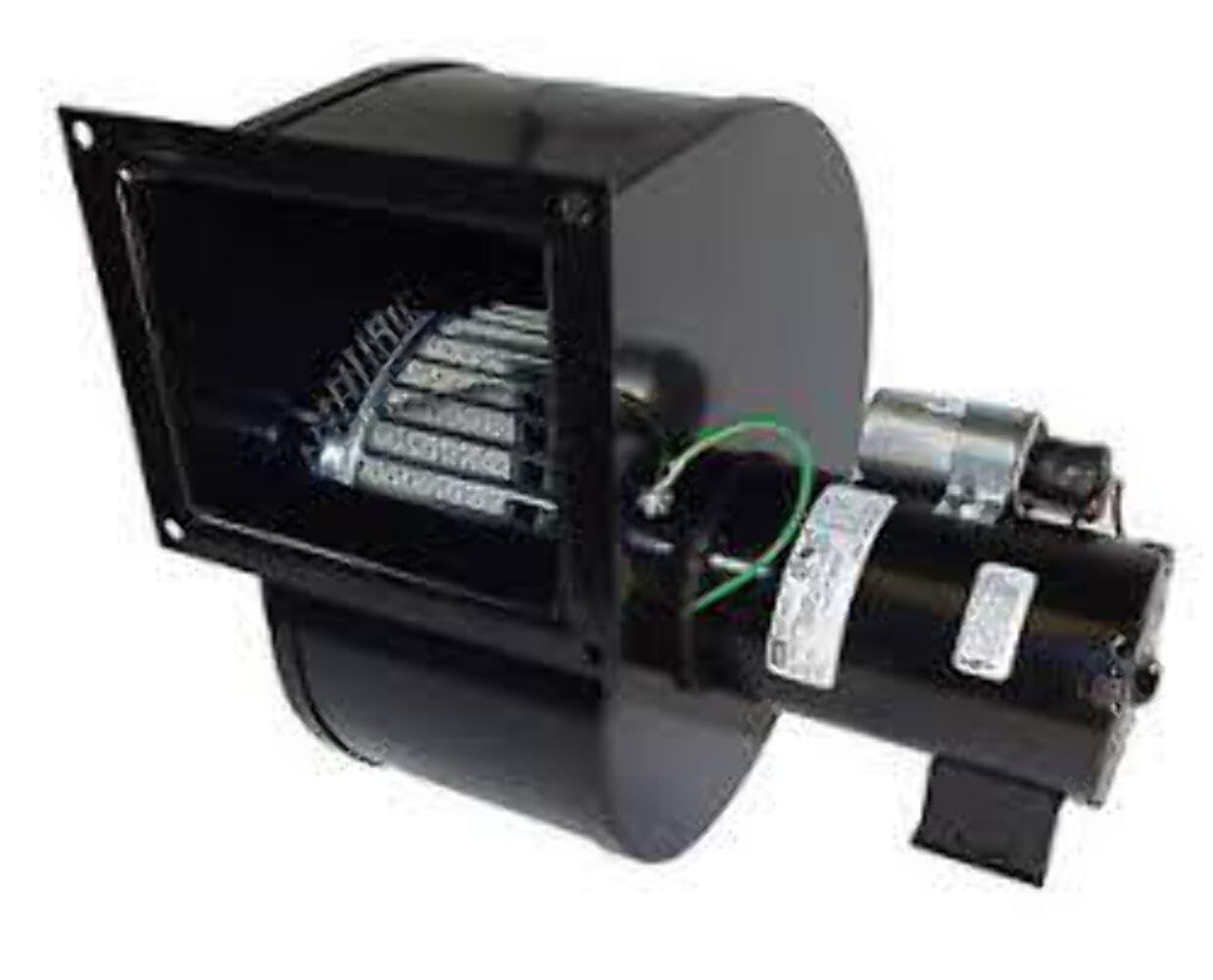

Fasco 50769-D500 Centrifugal Blower With Sleeve Bearing 115V 480 CFM 1,400/1,200 RPM

Product Description

The Fasco 50769-D500 centrifugal blower with sleeve bearing is designed for use in heating and ventilation applications, including exhaust vent fans for furnaces. It operates at 115V, 60Hz, and 3.55 amps, providing a reliable power input. This two-speed blower delivers a free air output of 480 cubic feet per minute (CFM) at 1,400/1,200 RPM, ensuring efficient air circulation.

• 480 CFM free air output
• Sleeve bearing for blower motor shaft support
• Operates at 115V, 60Hz, and 3.55 amps

Product Highlights

This centrifugal blower is equipped with a sleeve bearing for the motor shaft, thermally protected to prevent overheating. It has a maximum rotational speed of 1,200 RPM and operates quietly with a noise level of 69 dB, making it suitable for various HVAC applications.

Product Information

Standard Information

• Voltage: 115V
• Wattage: 507W

Technical Specifications

• Air Flow Capacity: 480 CFM
• Maximum Rotational Speed: 1,200 RPM
• Noise Level: 69 dB
• Cooling Method: Water
• Bearings: Sleeve
• Certification: UL recognized, CSA certified
• Weight: 13 pounds
• Dimensions: 11.02 x 4.72 x 5.51 inches
