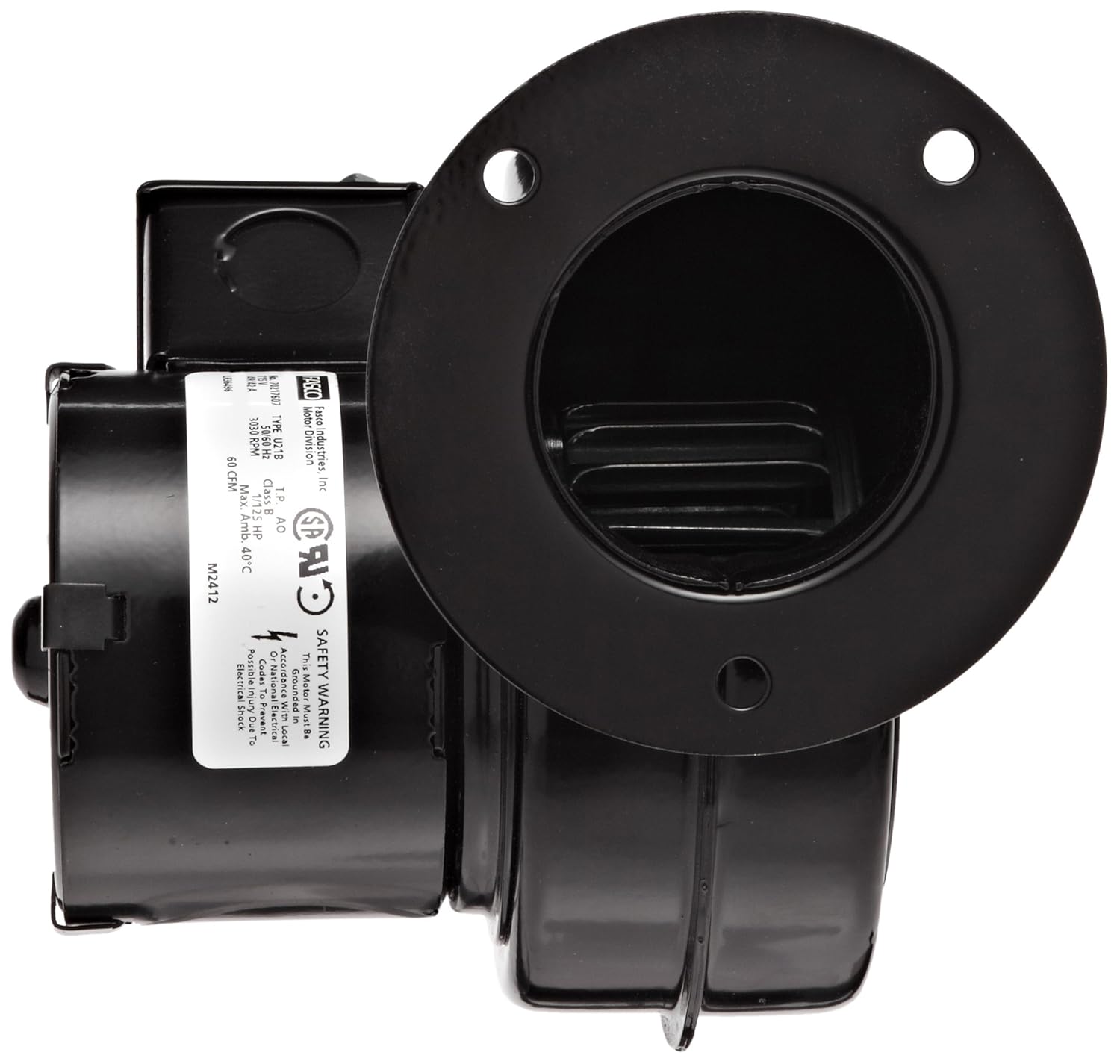

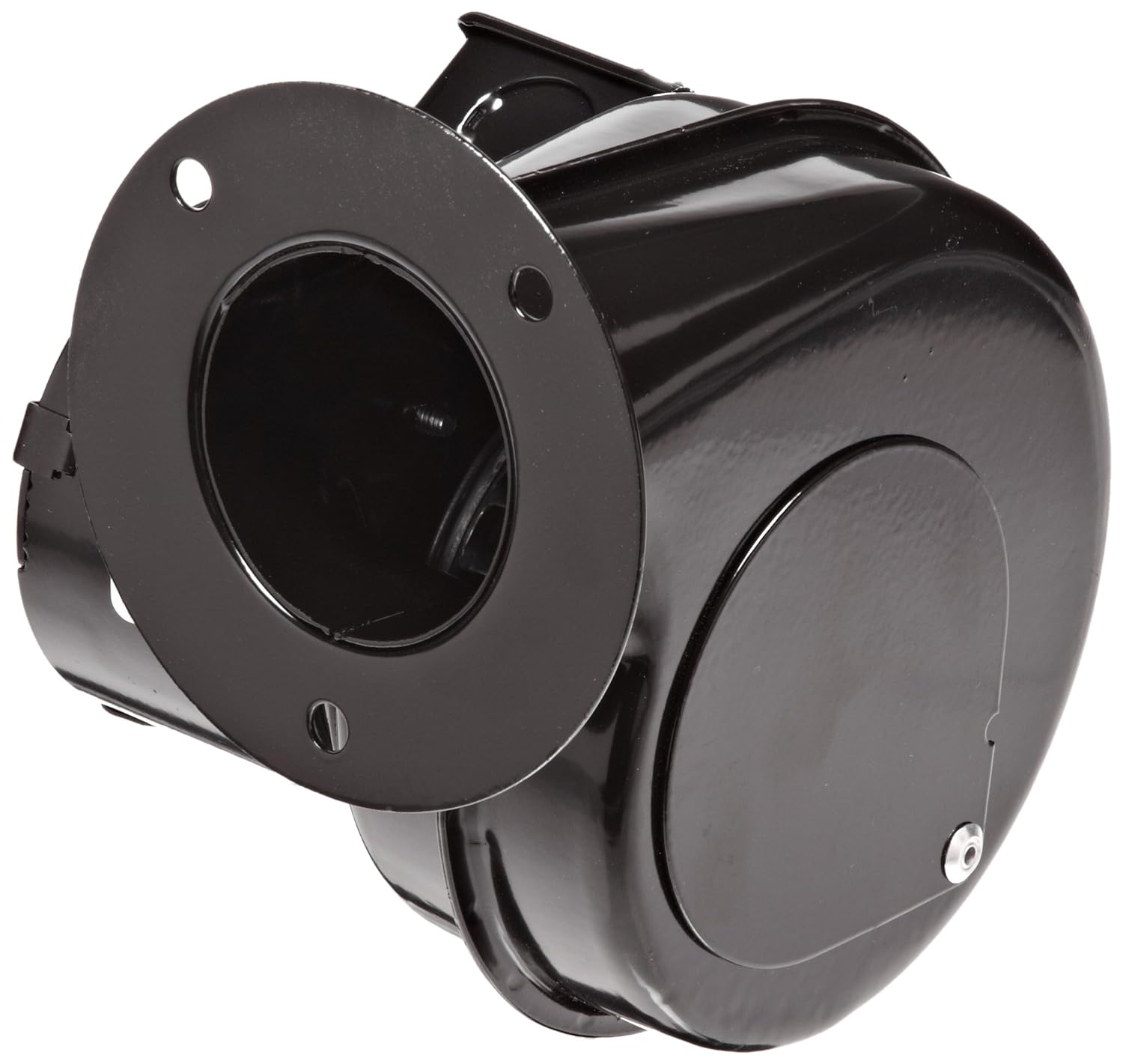

Fasco 50747-D401 Centrifugal Blower with Sleeve Bearing, 3200 RPM, 115V, 50/60Hz, 0.49 Amps

Product Description

The Fasco 50747-D401 centrifugal blower operates at 115V, 50/60 Hz, drawing 0.49 amps of power. This blower features a sleeve bearing to support the blower motor shaft. It is designed as a single-speed, single inlet blower with a maximum airflow output of sixty cubic feet per minute (CFM) at three thousand two hundred revolutions per minute (RPM). The blower maintains various CFM outputs at different static pressures, including 47 CFM at 0.1 inches of water gauge, 42 CFM at 0.2 inches, 37 CFM at 0.3 inches, 33 CFM at 0.4 inches, 21 CFM at 0.5 inches, and 7 CFM at 0.6 inches. This centrifugal blower is thermally protected to prevent overheating and is suitable for heating and ventilation tasks, especially for exhaust venting in furnaces.

• 60 CFM free air output, ideal for heating and ventilation
• Sleeve bearing for reliable motor support
• UL recognized and CSA certified for compliance

Product Highlights

This blower is dependable for various heating and ventilation applications. It meets quality assurance standards through certifications.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• Model Number: 50747-D401

Technical Specifications

• Power Input: 115V, 50/60Hz
• Current Draw: 0.49 Amps
• Type: Centrifugal, single inlet
• Max Airflow Output: 60 CFM at 3200 RPM
• Static Pressure Output: 47 CFM at 0.1 inches water gauge
• Construction: Sleeve bearing motor
• Protection: Thermally protected
• Certifications: UL, CSA recognized
