Fasco D374 Motor 1500 RPM 115 Volts 4.4 Diameter 1/8 HP CW
Fasco D374 Motor 1500 RPM 115 Volts 4.4 Diameter 1/8 HP CW

Fasco D374 Motor 1500 RPM 115 Volts 4.4 Diameter 1/8 HP CW

Brand: GENTEQ MOTORS
SKU: D374
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm
$383.81
$383.81
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

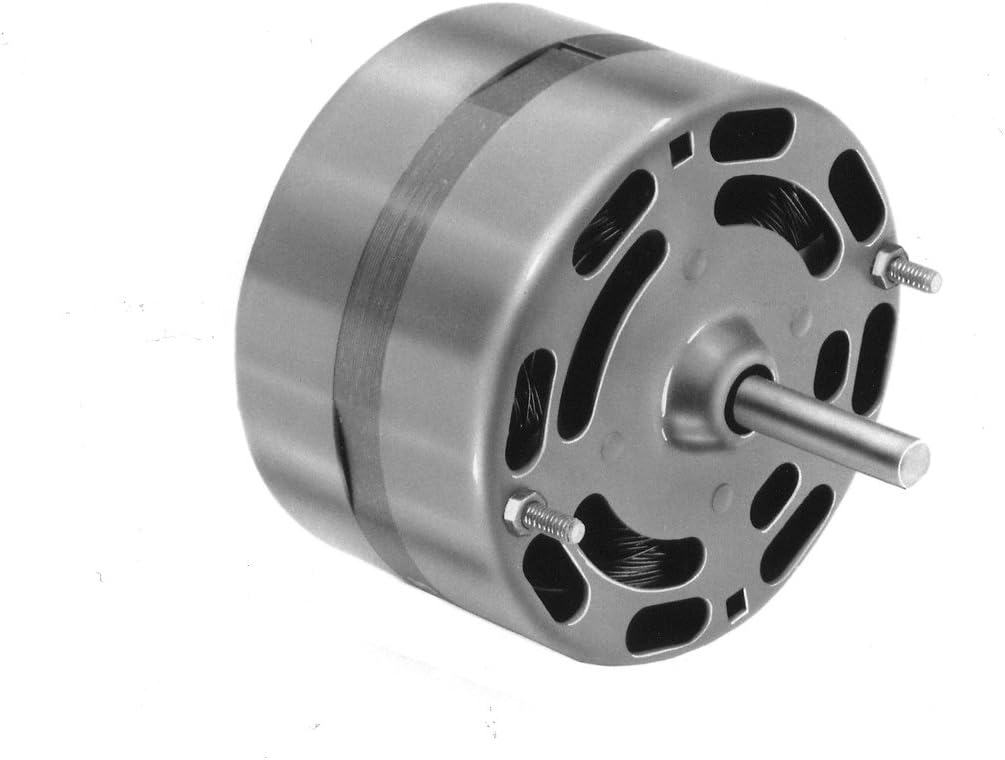

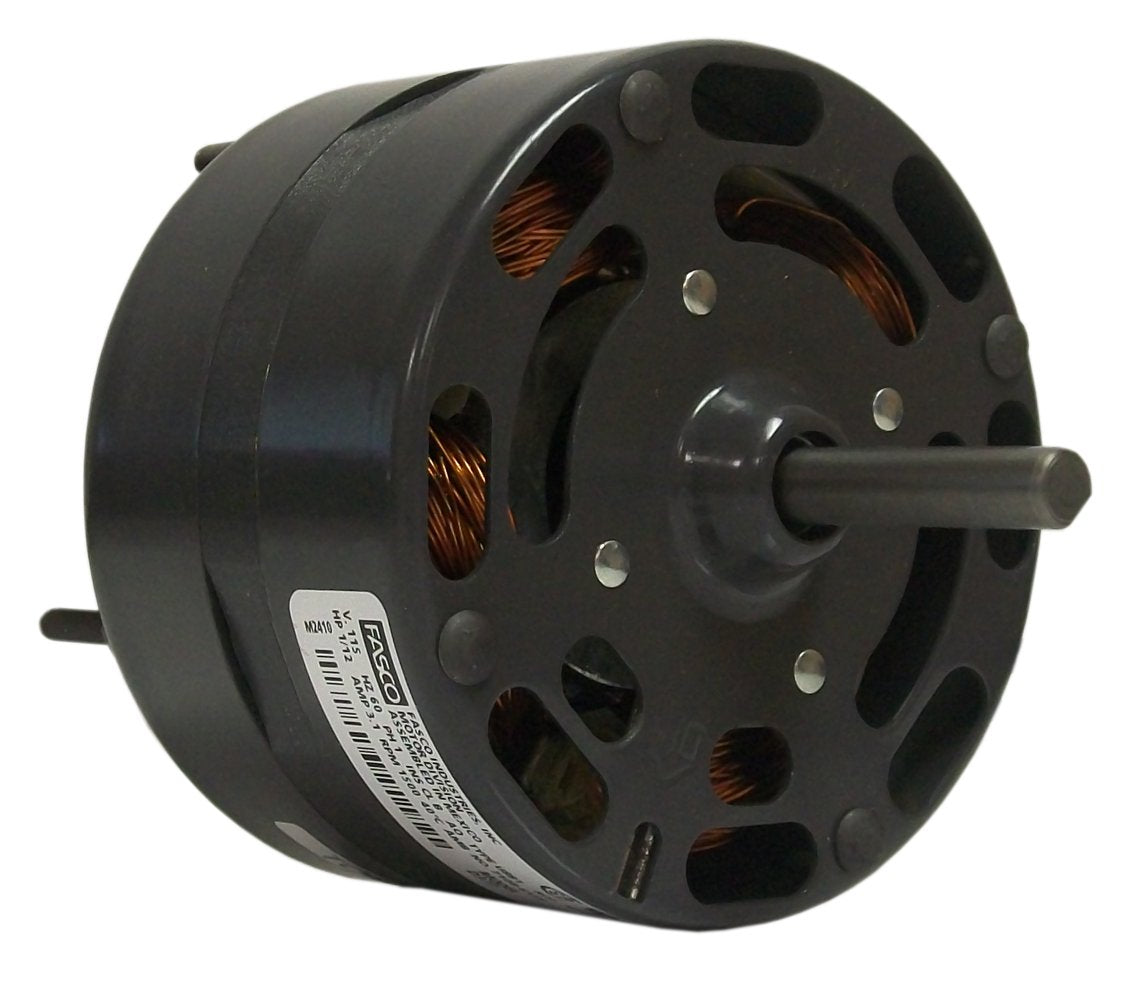

The Fasco D374 Motor is a reliable and efficient single-phase motor. With a power output of 1/8 HP and a speed of 1500 RPM, it is designed for a variety of HVAC applications. The motor operates with a 115-volt supply and features a 4.4-inch diameter frame.

  • 1/8 HP power output
  • 1500 RPM speed
  • 115 volts

Product Highlights

Ideal for fan and blower applications, the Fasco D374 Motor comes equipped with a shaded pole design for reliable performance and a clockwiwse shaft rotation. It offers automatic thermal protection.

Product Information

Standard Information

  • Phase: Single
  • Speeds: 2

Technical Specifications

  • Motor Type: Shaded Pole
  • Voltage: 115
  • Frame Size: 4.4 inches
  • Amperage: 4.0-2.5
  • Shaft Diameter: 0.313 inches
  • Shaft Length: 2.2 inches
  • Bearings: Sleeve
  • Rotation: Clockwise Shaft End
