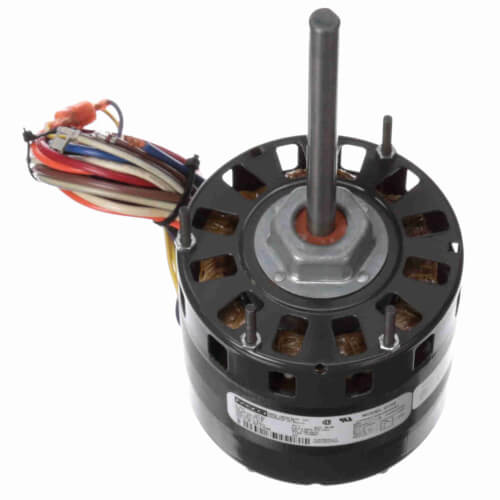

Fasco D152 Motor 1/4 HP 1050 RPM 277V 4-Speed SPDT

Product Description

The Fasco D152 Motor with MPN D152 is a versatile motor designed for HVAC applications. This motor is capable of operating at multiple speeds and is suitable for various HVAC systems.

• 4-speed motor for flexible operation
• 1/4 HP with 1050 RPM for efficient performance
• 277V single-phase power supply

Product Highlights

This motor is ideal for use in HVAC systems requiring a versatile and reliable blower motor. It features a reversible rotation and an open-air design for effective cooling.

Product Information

Standard Information

• Brand: Fasco
• MPN: D152

Technical Specifications

• Horse Power: 1/4-1/5-1/6-1/8 HP
• Speed: 1050 RPM
• Voltage: 277V
• Amperage: 1.5/1.1/0.8/0.7 amps
• Phase: Single
• Frame Size: 42
• Enclosure Type: Open Air Over
• Rotation: Reversible
• Overload Protection: Automatic
• Shaft Diameter: 0.5 inches
• Shaft Length: 6 inches
• Insulation Class: B
• Bearings: Ball
• Weight: 13.33 lbs
• Frequency: 60 Hz
• Ambient Temperature: 104°F
• UL Approval: Yes
