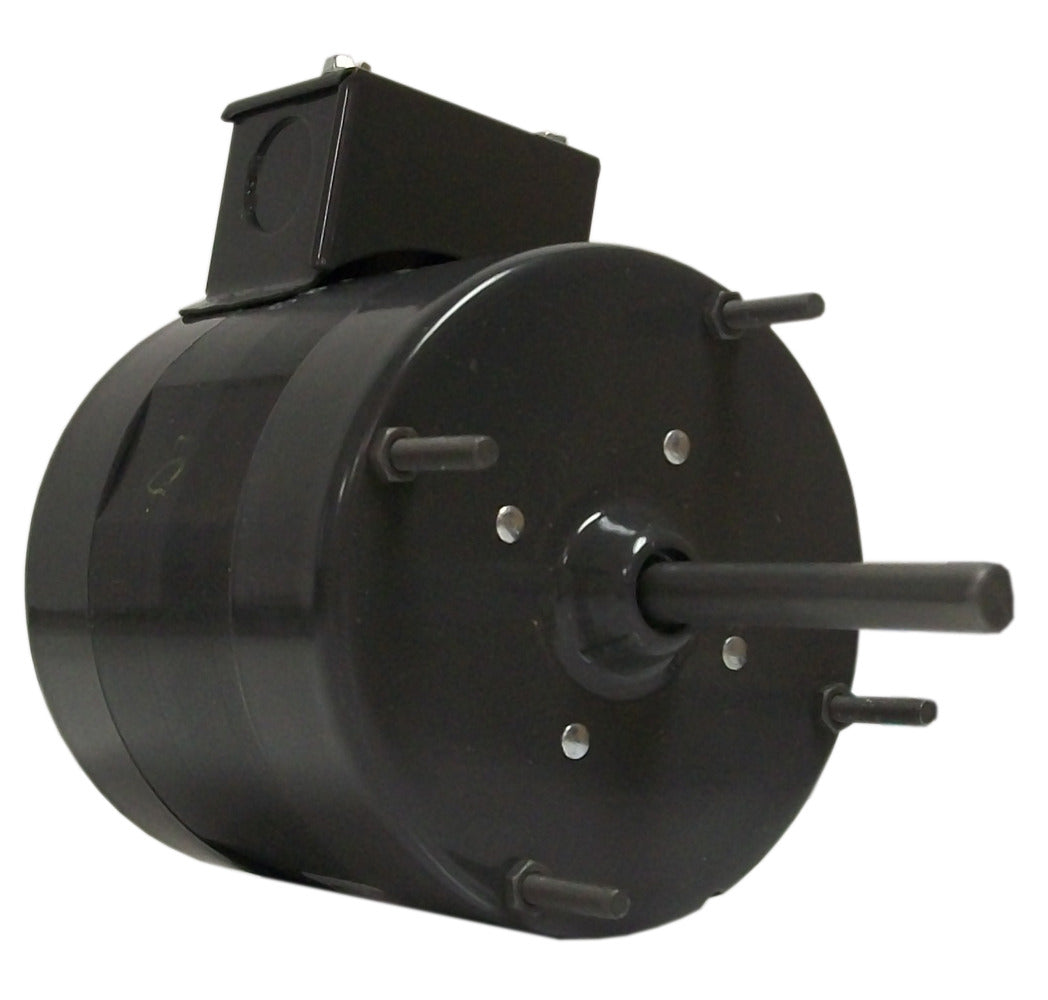

Fasco D115 1/12HP Motor 1550 RPM 115/230V OEM ILG Replacement

Product Description

The Fasco D115 is a 1/12HP motor designed for OEM replacements, suitable for ILG branded systems. Operating at 1550 RPM, this motor runs on 115/230 volts. Ideal for condenser fan applications.

• OEM Replacement
• 1550 RPM Speed
• Dual Voltage 115/230V

Product Highlights

This 1/12HP motor is designed for reliable performance in fan and blower systems, ensuring optimal air movement and efficiency.

Product Information

Standard Information

• Item: Motor
• Manufacturer: Fasco
• MPN: D115
• Replacement For: 7108-2237

Technical Specifications

• Horsepower: 1/12 HP
• Speed: 1550 RPM
• Voltage: 115/230V
• Amperage: 2.5/1.3A
• Frame Diameter: 4.4 inches
• Bearings Type: Sleeve
• Shaft Diameter: 1/2 inch
• Shaft Length: 2 inches
• Thermal Protection: Automatic
• Insulation Class: A
• Enclosure Design: Totally Enclosed Air Over
• Rotation: Counterclockwise Shaft End
• Service Factor: 1
• Mounting Type: Extended Studs
• Max Ambient Temperature: 40°C
• Certifications: UL Recognized, CSA Certified
