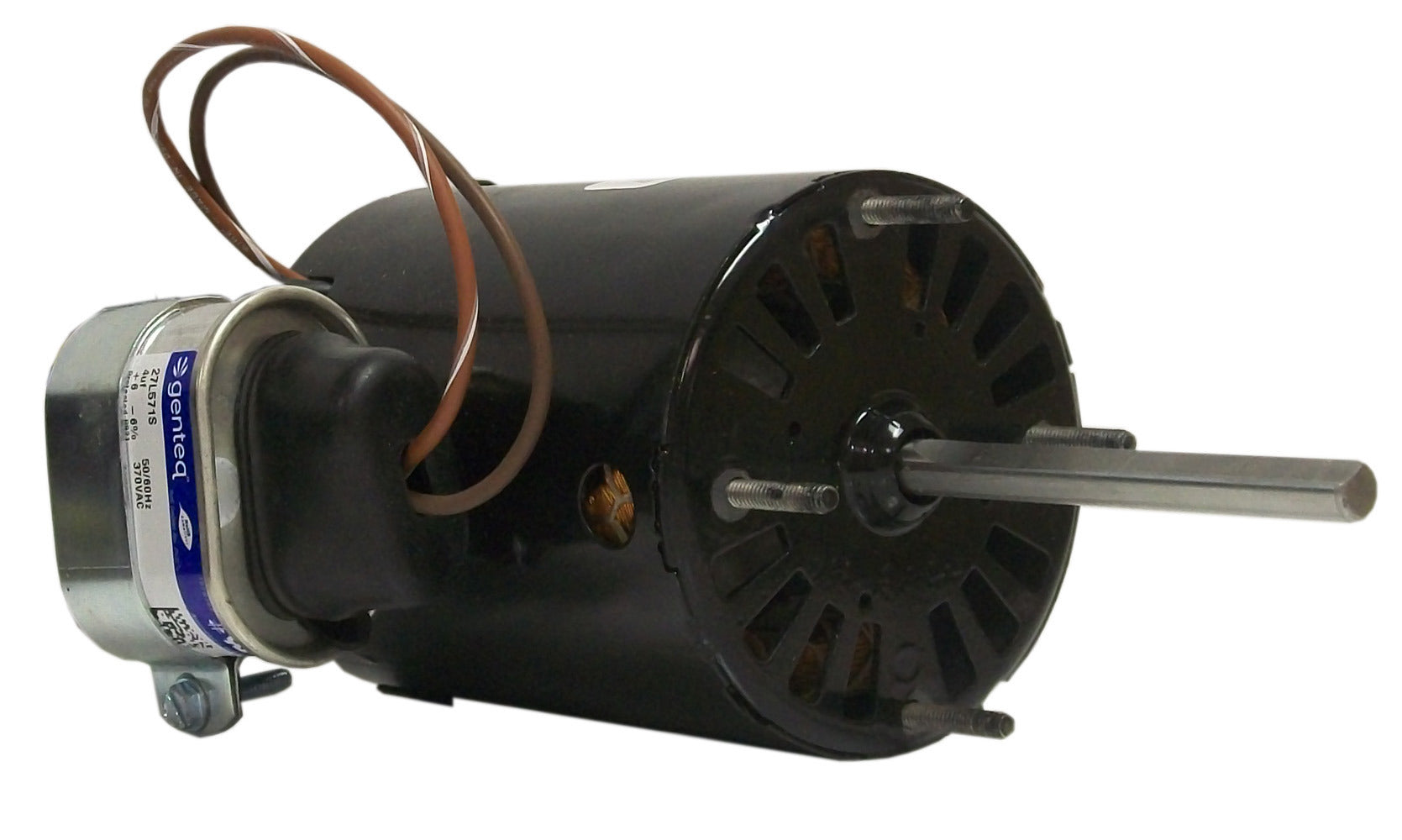

Fasco D404 1/10 HP 3200 RPM 208-230V PSC Motor

Product Description

The Fasco D404 is a reliable 1/10 HP Permanent Split Capacitor (PSC) motor designed for various HVAC applications. It operates at 3200 RPM with a voltage range of 208-230V and draws 0.8 amps. The motor features ball bearings and reversible rotation, ensuring smooth and efficient operation.

• Suitable for HVAC systems
• Reversible rotation for varied applications
• Thermally protected for safety

Product Highlights

This motor is ideal for use in HVAC systems due to its efficient design and reliable operation. It includes automatic thermal protection to prevent overheating.

Product Information

Standard Information

• Manufacturer: Fasco
• Brand: Fasco
• MPN: D404
• Voltage: 208-230V
• HP: 1/10

Technical Specifications

• Current: 0.8 amps
• Electrical Type: Permanent Split Capacitor
• KW: 0.07
• RPM: 3200
• Frame Length: 4.1 inches
• Diameter: 3.3 inches
• Enclosure: Open Air Over
• Phase: Single
• Rotation: Reversible
• Overload Protector: Thermally Protected
• Material: Steel
• Speeds: 1
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Mounting Type: Extended Studs
• Shaft Type: Flat
• Shaft Extension: 3.25 inches
• Ambient Temperature: 40°C
• Pole: 2
• Insulation Class: B
• Service Factor: 1
• Frequency: 60 Hz
• C Dimension: 7.8 inches
