Product Description

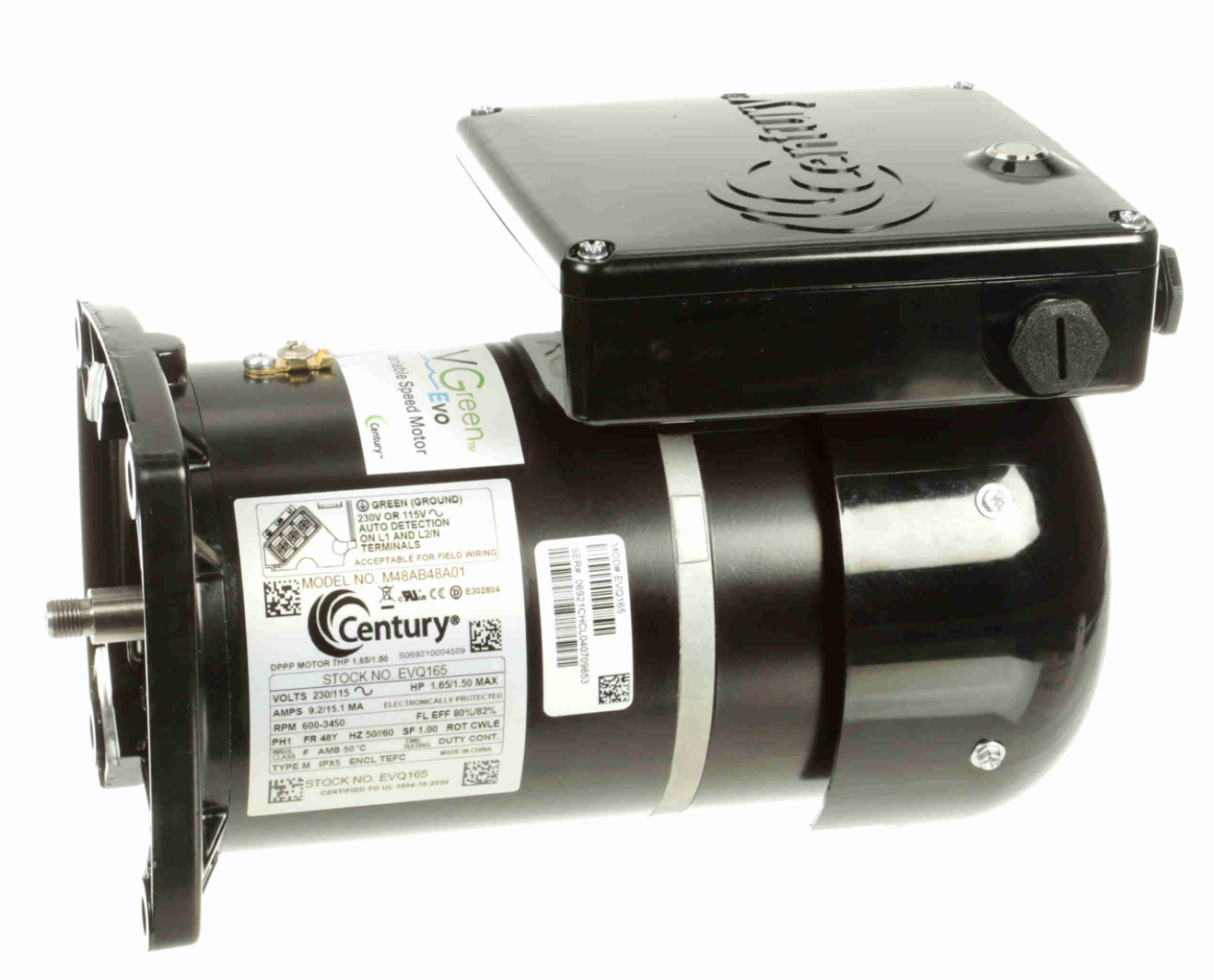

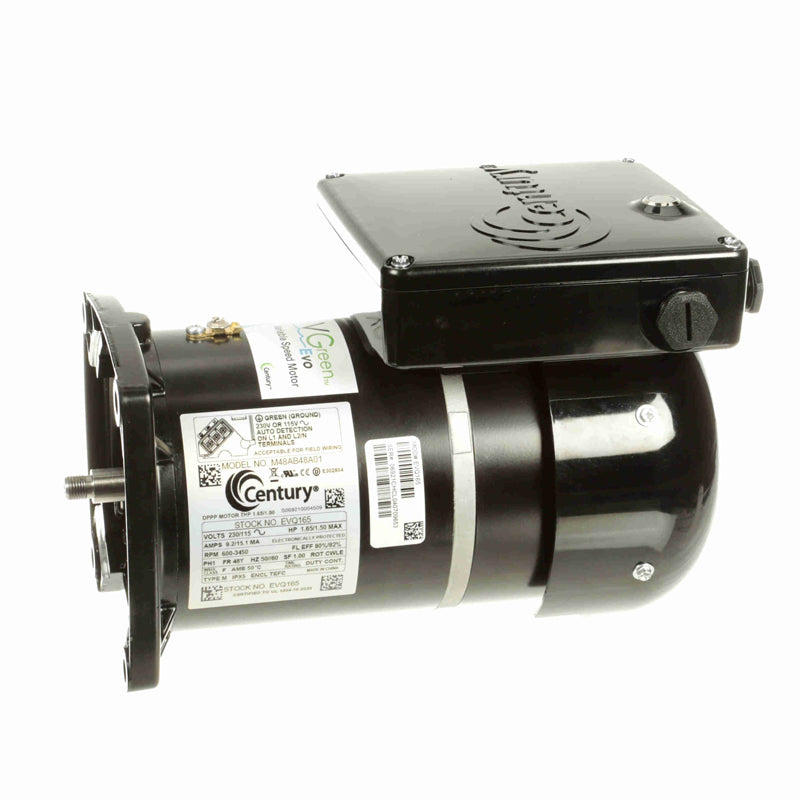

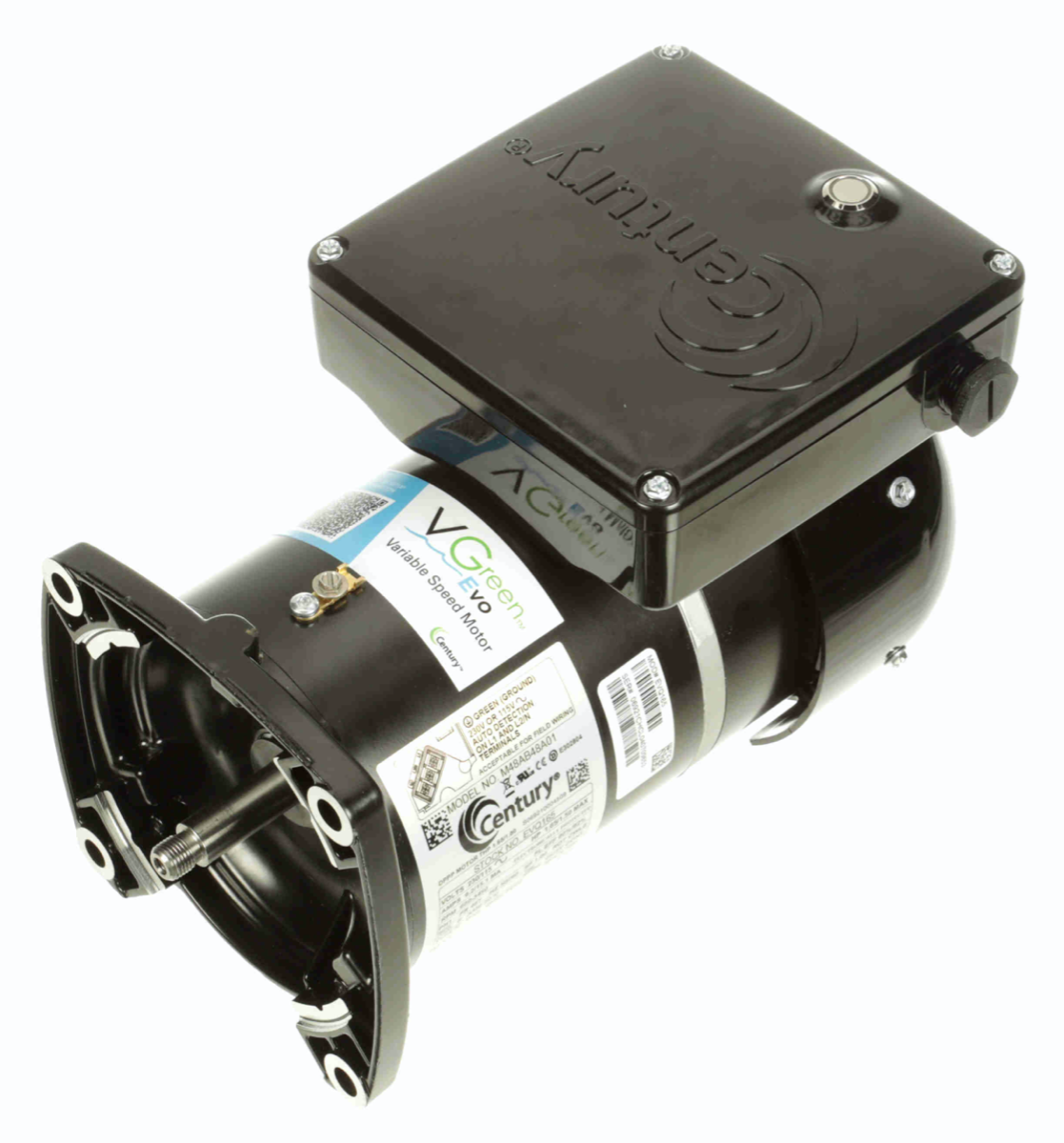

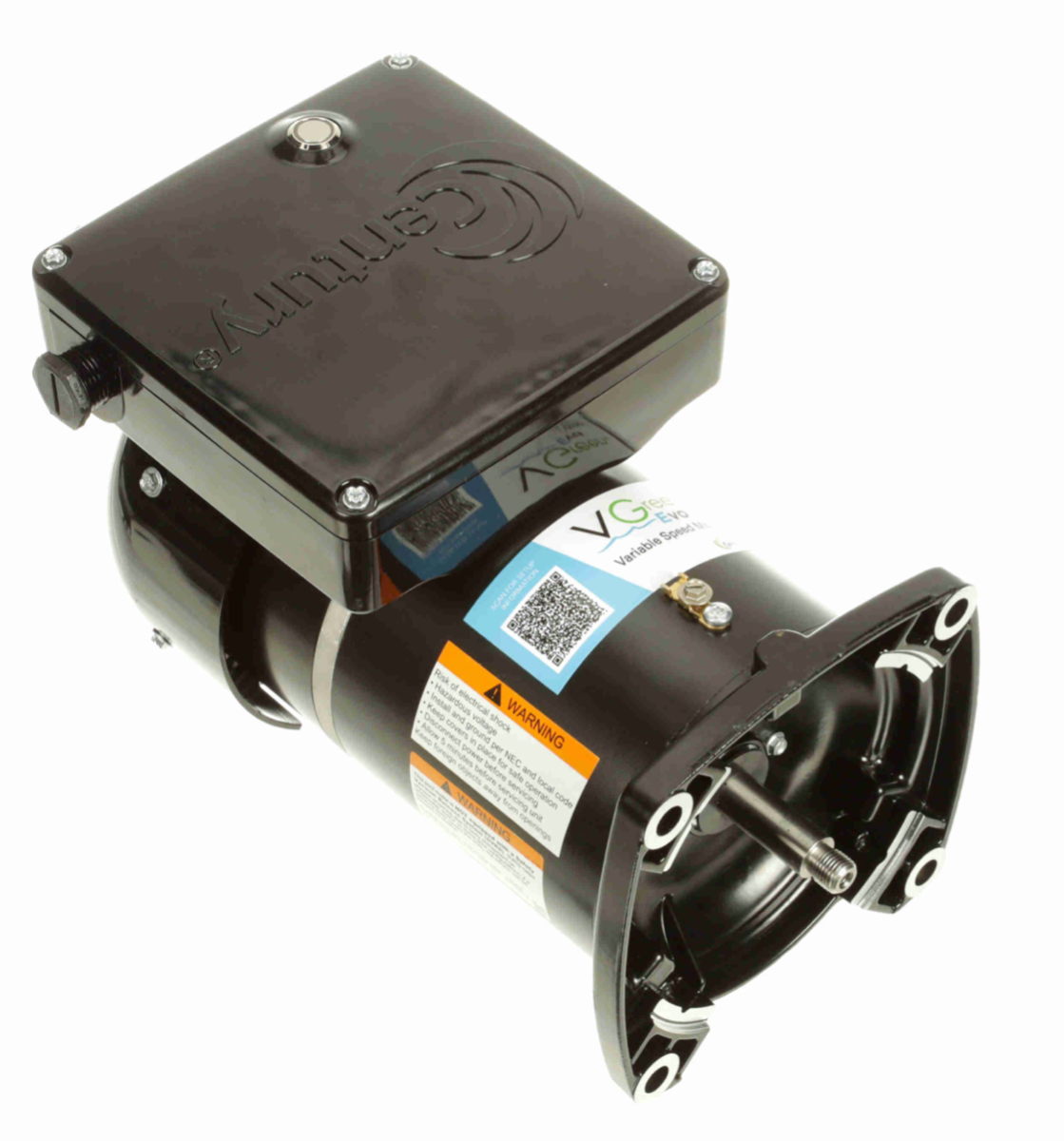

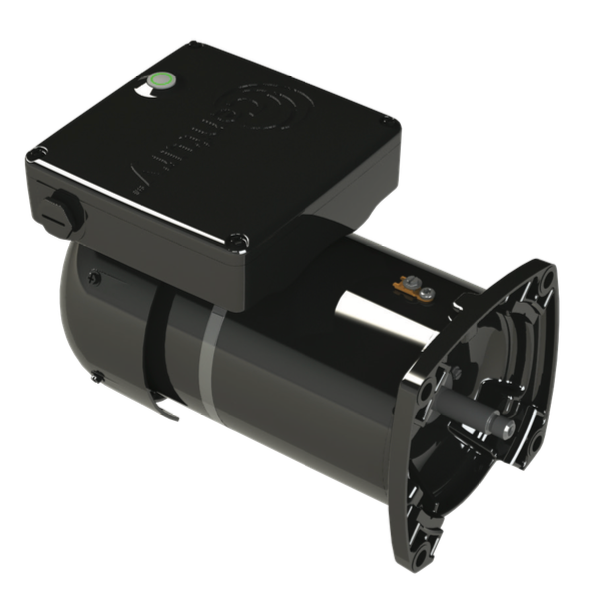

The REGAL BELOIT EVQ225 Century Electric VGREEN EVO is a premium-efficiency replacement motor that offers impressive energy savings. This variable-speed pool pump motor features an all-new redesigned user interface for easier installation and operation. Its integrated design reduces installation time, and its IPX5 moisture intrusion rating provides enhanced protection. It is available in a square flange mounting configuration.
- Integrated User Interface
- Full Variable Speed (1050-3450 RPM)
- ECM Design
Product Highlights
The VGreen motor can replace any single speed motor without replacing the pump, turning any pool into a high-efficiency system.
Product Information
Standard Information
-
Brand: REGAL BELOIT
-
Manufacturer Part Number: EVQ225
Technical Specifications
-
Manufacturer: Regal Beloit America, Inc
-
Brand: Century Electric ( Formally AO Smith )
-
Motor Series: VGreen EVQ225
-
Speed: Variable Speed
-
HP Rated: 2.25 HP
-
Service Factor: 1.0
-
THP: Up to 2.25 THP ( Max )
-
RPM Range: 1050 to 3450 RPM
-
Voltage: 230/115 Volts
-
Maximum Amp: 13.5/17.4amps
-
Flange: Square Flange
-
Frame: 48Y
-
TEFC: TEFC
-
Percent Energy Savings: 80%
-
Dual Voltage: 230/115 VAC with Automatic Voltage Detection
-
Freeze Protection: true
-
Sealed Ball Bearings: true
-
Single Phase: true
-
50/60 Hz: true
-
303 Stainless Steel Shaft: true
-
Class F Insulation: true
-
50°C Ambient: true
