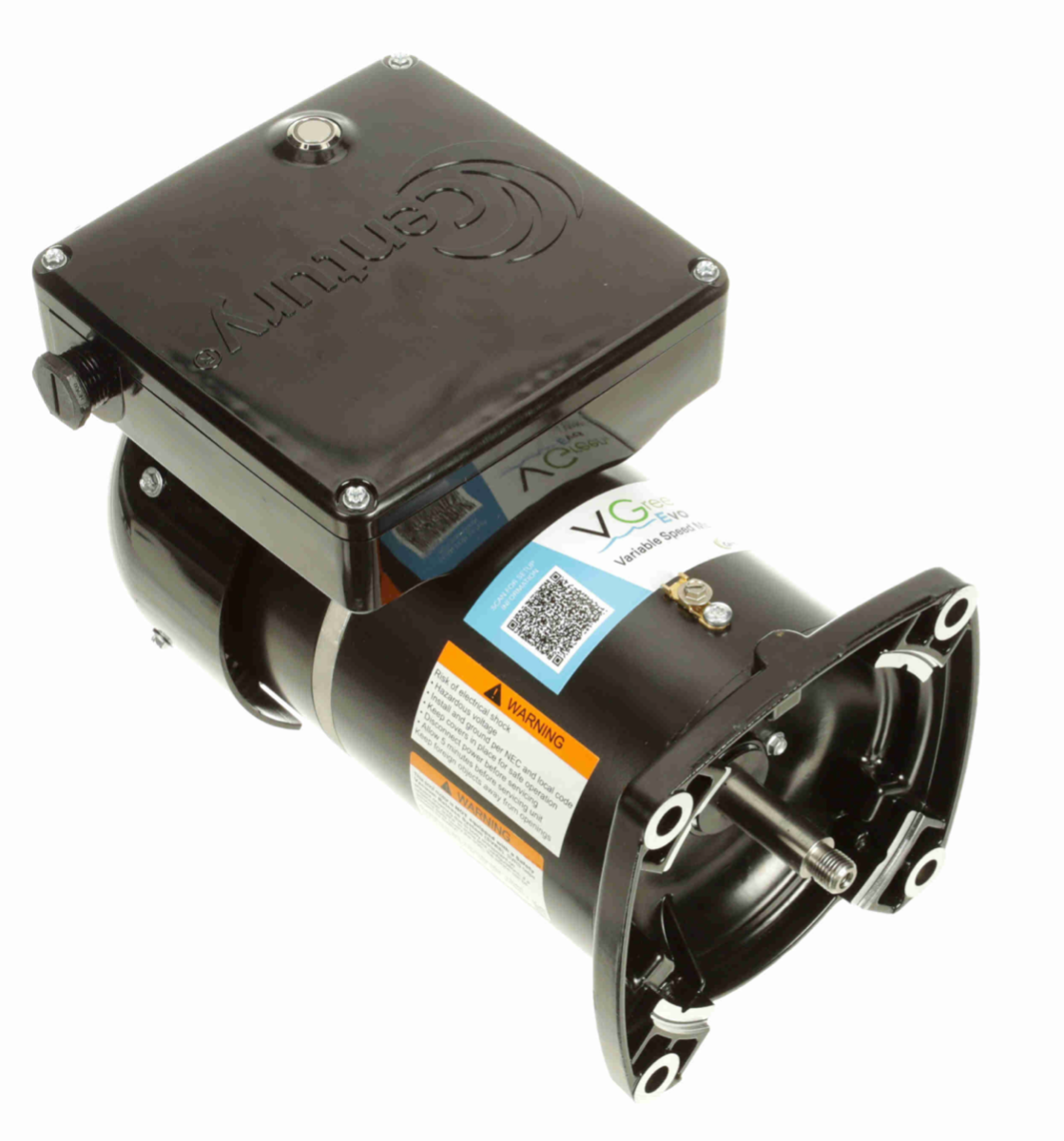

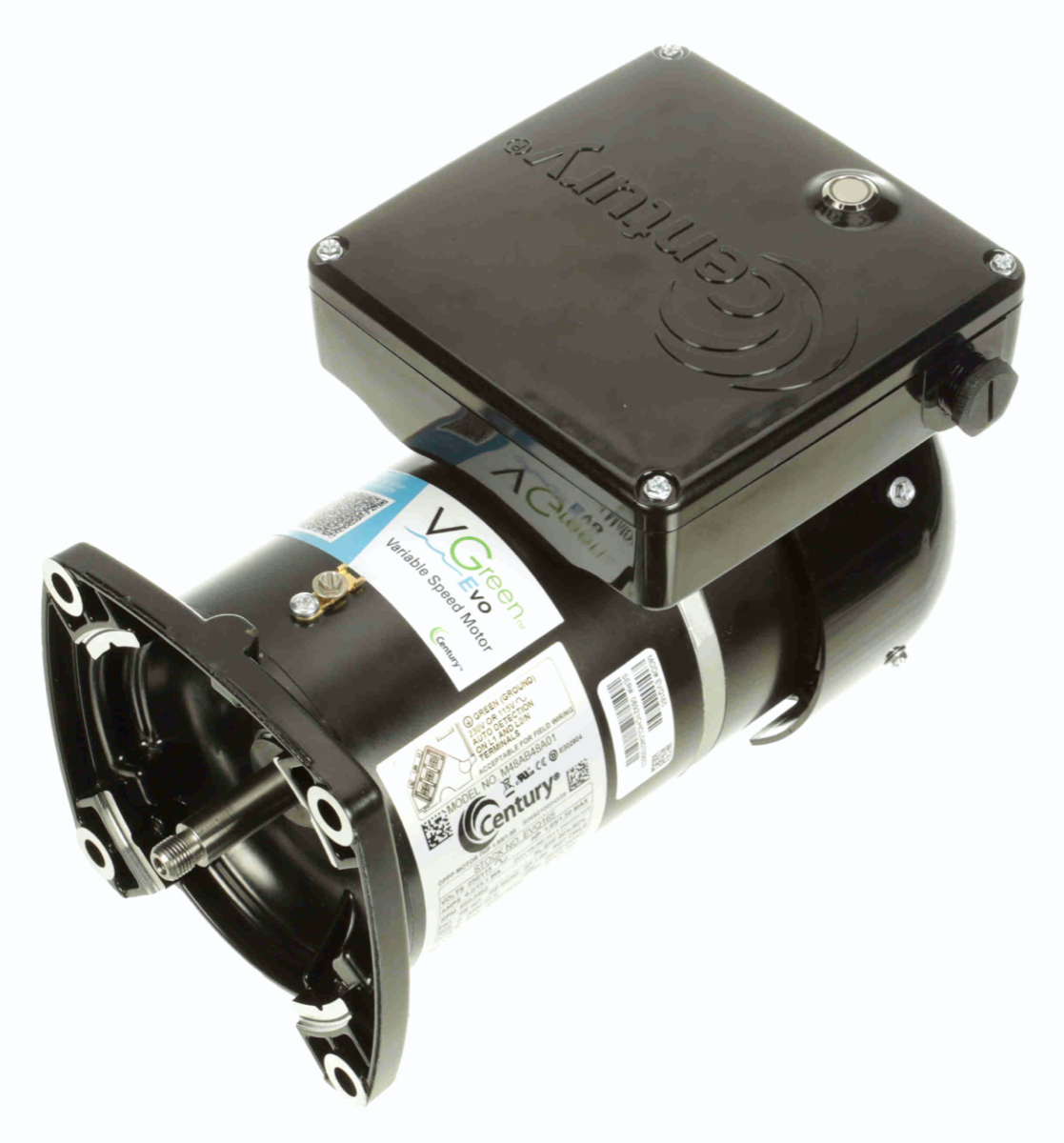

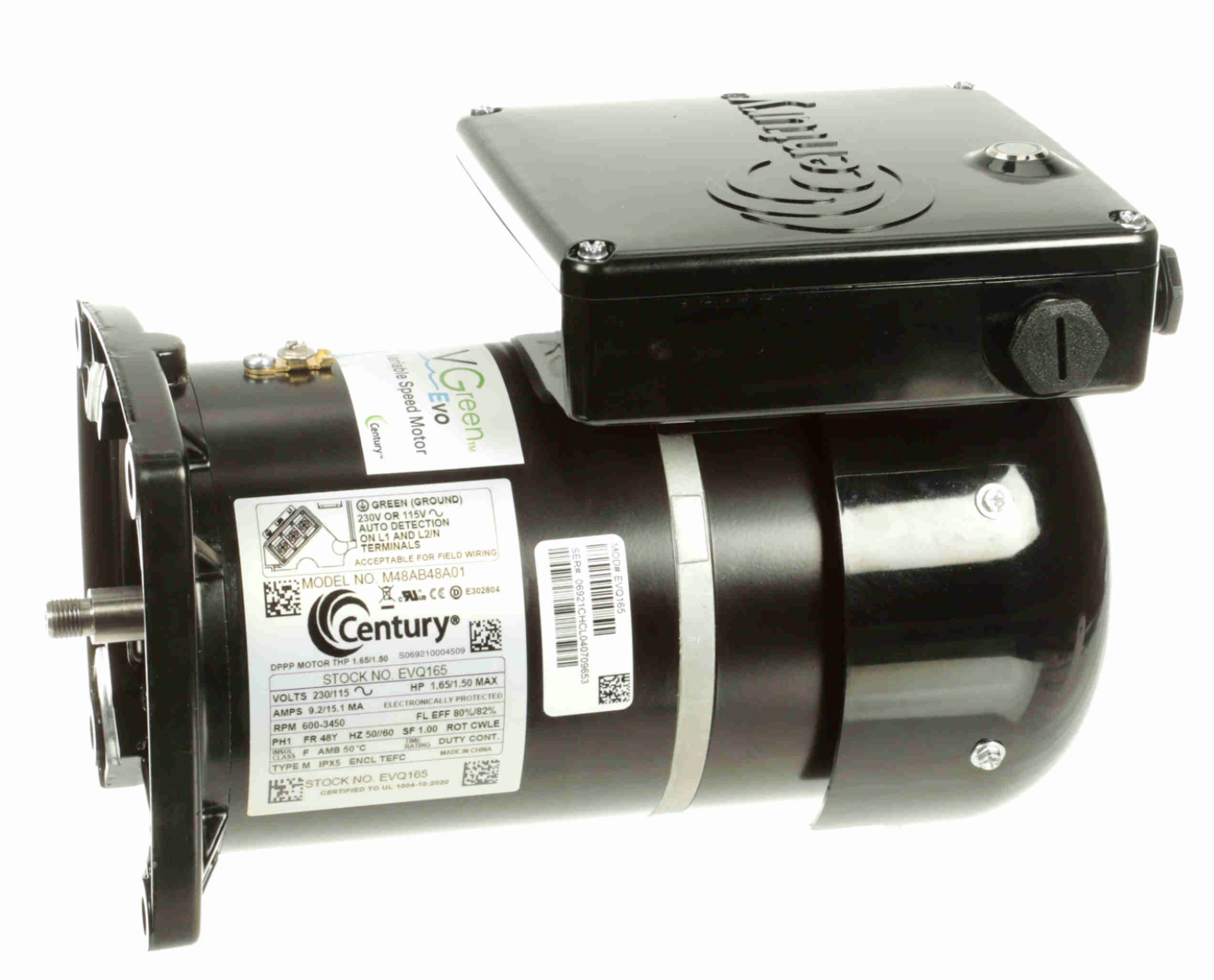

Regal Beloit EVQ165 VGreen Variable Speed Motors Pool Pump Motor 1.65/1.50 HP 230/115 V

Product Description

The Regal Beloit EVQ165 VGreen variable speed motor is a pool pump motor with 1.65/1.50 HP and a voltage of 230/115 V. It meets state efficiency standards for swimming pool replacement motors and features easy communication with most pool automation systems. The motor offers a simplified user interface and serves as a direct drop-in replacement.

• Meets state efficiency standards for swimming pool replacement motors.
• Easy communication with most pool automation systems.
• Simplified user interface.

Product Highlights

This variable speed motor provides energy efficiency and optimal performance for residential pools.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: EVQ165
• Country of Origin: China

Technical Specifications

• Phase: 1
• Output HP: 1.65/1.50 Hp
• Output KW: 1.2 kW
• Voltage: 230/115 V
• Speed: 600-3450 rpm
• Service Factor: 1
• Frame: 48Y
• Enclosure: Totally Enclosed Fan Cooled
• Thermal Protection: Automatic
• Ambient Temperature: 50 °C
• Frequency: 50 Hz
• Current: 10.5/17.7 MAX A
• Duty: Continuous
• Insulation Class: F
• UL: Recognized
• CSA: N
• CE: Y
• Number of Speeds: VAR
• Rotation: Clockwise Lead End
• Mounting: Round
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Threaded
• Frame Length: 8.68 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 1/2-20 THREAD in
• Horsepower: 1.5 HP
• Electric motor type: AC Motor
• Electrical phase: Single Phase
• Maximum motor speed: 3450 rpm
• Brand: Regal Beloit
• Motor Series: VGreen
• THP: Up to 1.65 THP ( Max )
• RPM Range: 600 to 3450 RPM
• Maximum Amp: 10.5 - 17.7 amps
• Flange: Square Flange
• Percent Energy Savings: 80%
• Pump Speed: Single Speed / Variable Speed
