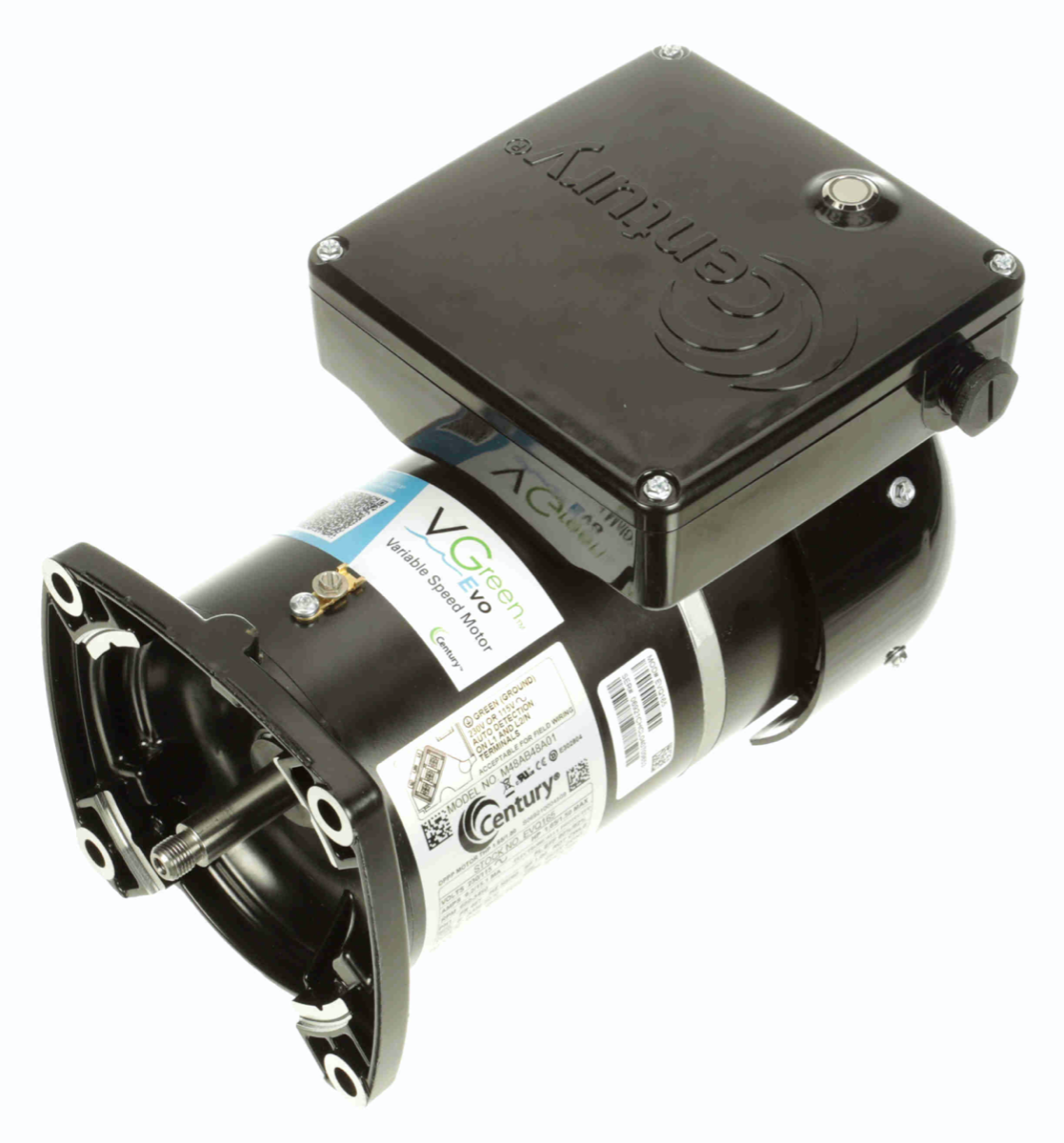

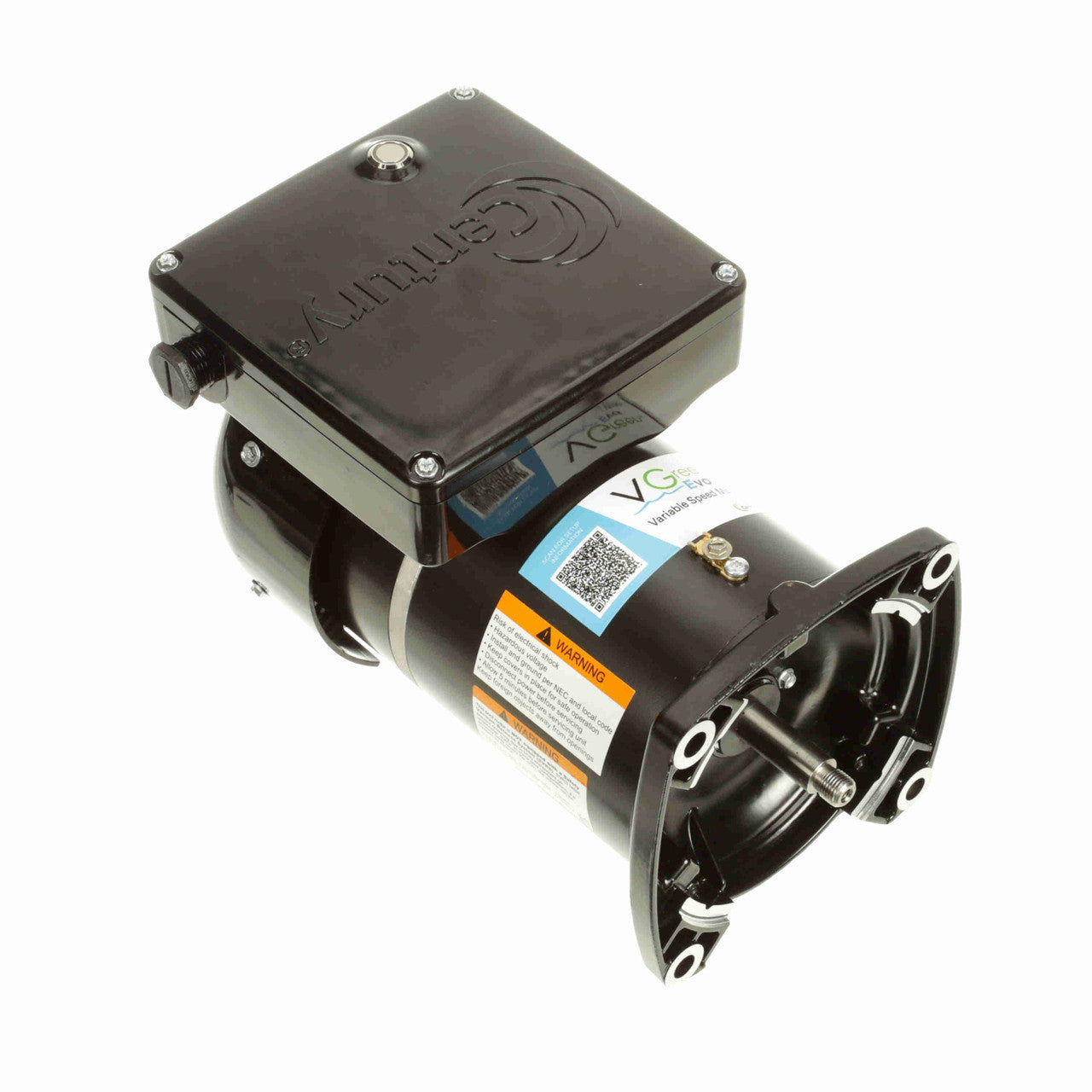

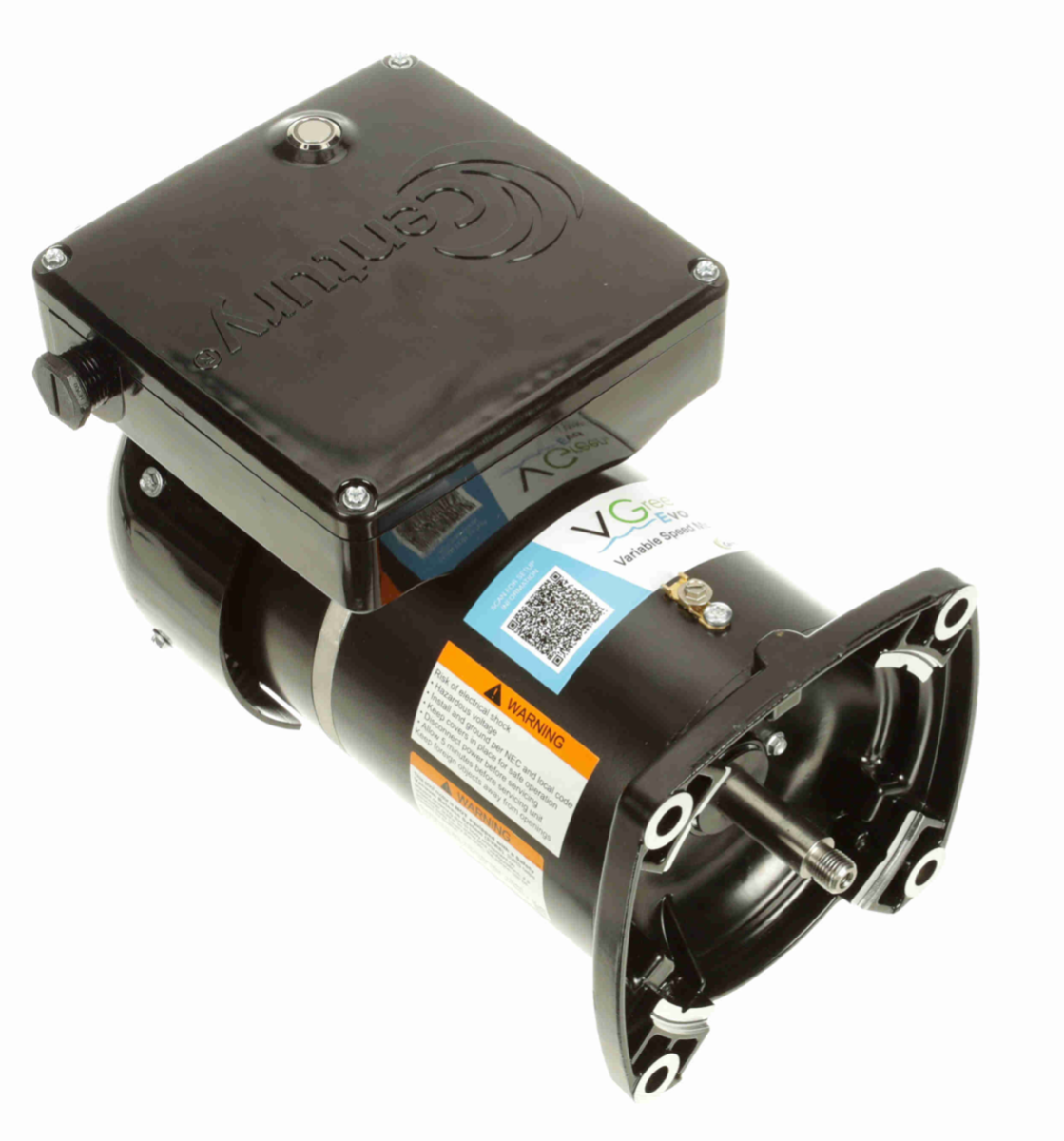

Regal Beloit EVQ130 VGreen Evo Variable Speed Motor 1.3 HP

Product Description

The REGAL BELOIT EVQ130 VGreen Evo motor is a variable speed pool pump motor designed for energy savings. It is a direct drop-in replacement for pool filter pump applications with an easy-to-program user interface. The motor is driven by advanced variable speed technology and is available in square flange and C-Face configurations for pool pump applications ranging from 1.30 to 2.25 total horsepower.

• Simplified user interface allows for easier programming and motor setup.
• IPX5 moisture intrusion rating provides enhanced protection against moisture.
• Lightweight, compact design, and rotatable mains wiring compartment allow for ease of installation.

Product Highlights

Offers programming flexibility with pre-programmed variable speed operating schedules to minimize energy consumption and lower the overall cost of pool ownership.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: EVQ130

Technical Specifications

• Dual Voltage: 230/115 VAC with Automatic Voltage Detection
• Freeze Protection: Yes
• Bearings: Sealed Ball Bearings
• Operation: Variable Speed
• RPM: 600-3450
• Design: TEFC
• Rotation: CCWPE
• Phase: Single Phase
• Frequency: 50/60 Hz
• Shaft: 303 Stainless Steel
• Insulation: Class F
• Ambient Temperature: 50°C
• Brand: Century Electric ( Formally AO Smith )
• Motor Series: VGreen EVQ130
• HP Rated: 1.30 HP
• Service Factor: 1.0
• THP: Up to 1.30 THP
• RPM Range: 1050 to 3450 RPM
• Voltage: 230/115 Volts
• Maximum Amp: 8.6 - 15.6 Amps
• Flange: Square Flange
• Frame: Will Fit 48Y & 56Y Frame
• Mounting: Square Flange Mounting
• Cooling: Total Enclosed Fan Cooling
