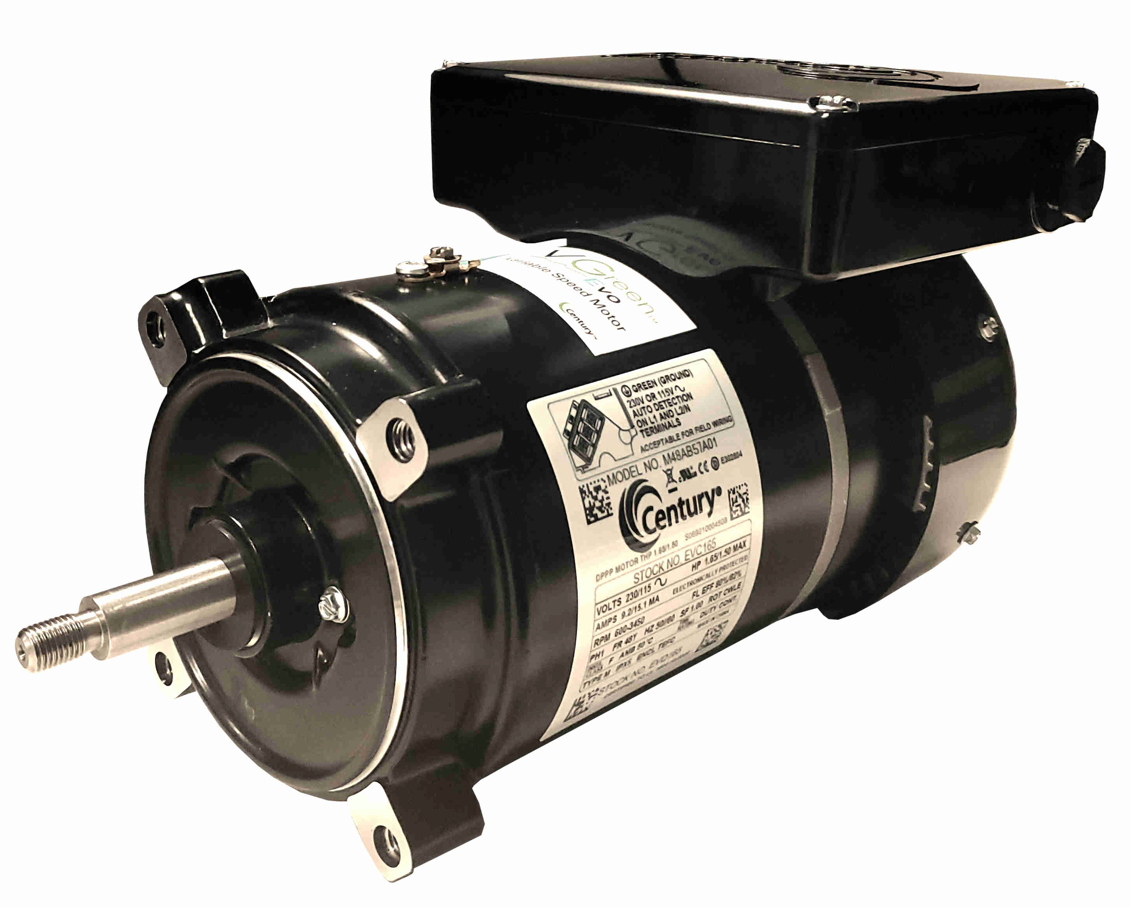

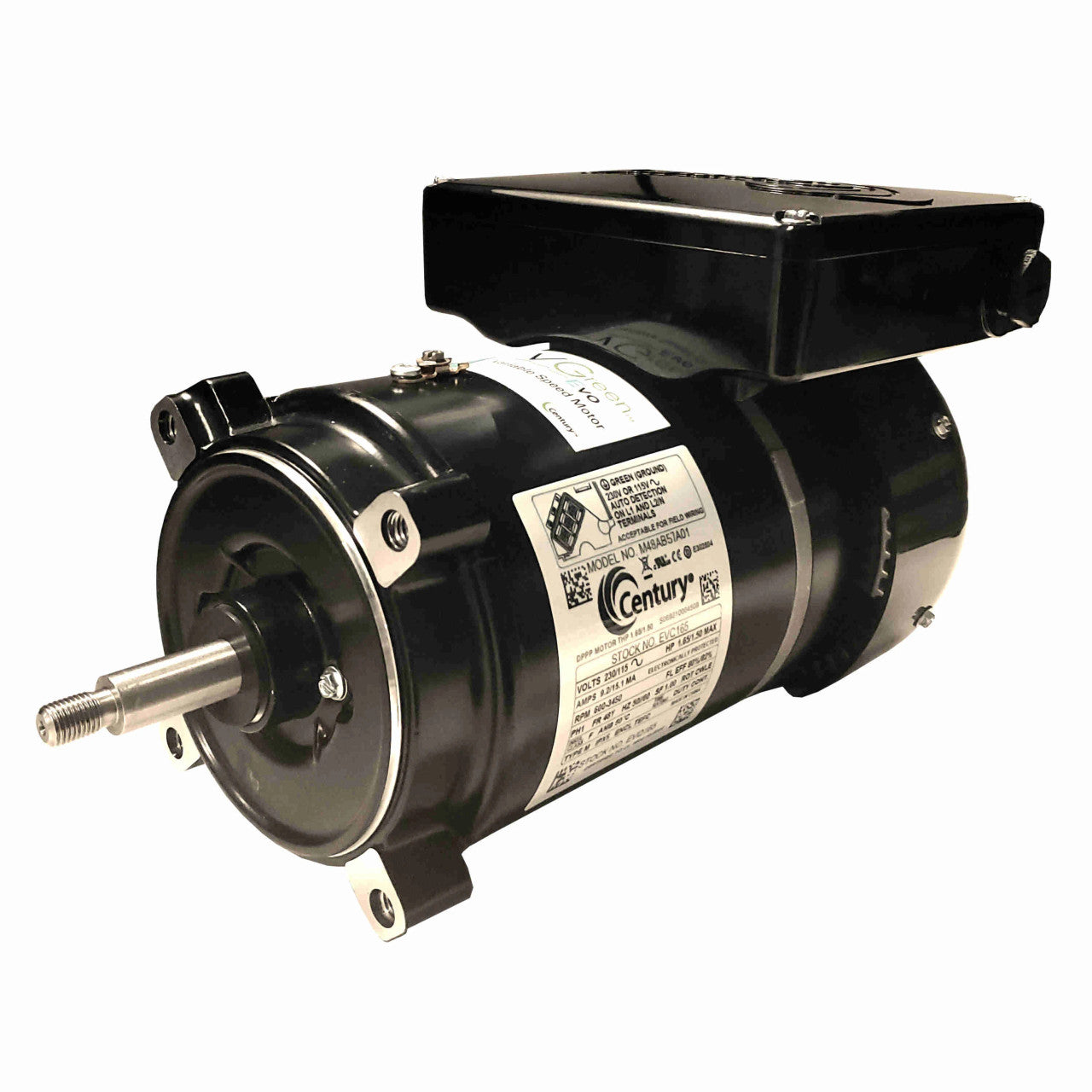

Regal Beloit EVC165 VGreen Evo Thread Motor 1.65 HP

Product Description

The Regal Beloit EVC165 VGreen Evo Thread Motor delivers versatile performance with a variable speed range of 600-3450 RPM. Designed for easy installation, this motor features a simplified single-button user interface and dual voltage 230/115 VAC with automatic detection. Ideal for applications requiring precise speed control and energy-efficient performance.

• Variable Speed Operation (600-3450 RPM)
• Simplified Single Button User Interface
• Dual Voltage 230/115 VAC, with Automatic Voltage Detection

Product Highlights

Offers versatile performance with variable speed, simplified user interface, and dual voltage for energy-efficient speed control.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: EVC165
• Country of Origin: United States

Technical Specifications

• Brand: REGAL BELIOT AMERICA INC
• MPN: EVC165
• Manufacturer: REGAL BELIOT AMERICA INC
• UPC: 786674077233
• Country of Origin: United States
• Horsepower: 1.65 HP
• Electric motor type: AC Motor
• Electrical phase: Single Phase
• Volts: 230/115
• Maximum motor speed: 3450 rpm
• Design: TEFC
• Rotation: CCWPE
• Phase: Single Phase
• Frequency: 50/60 Hz
• Shaft: 303 Stainless Steel
• Insulation: Class F Insulation
• Ambient: 50°C
• Motor Series: VGreen EVC165
• Speed: Variable Speed
• Service Factor: 1.0
• THP: Up to 1.65 THP ( Max )
• RPM Range: 600 to 3450 RPM
• Voltage: 230/115 Volts
• Maximum Amp: 10.5 - 17.7 Amps
• Flange: Round/Circular Flange
• Frame: 56J
• TEFC: TEFC
• Percent Energy Savings: 80%
