Product Description

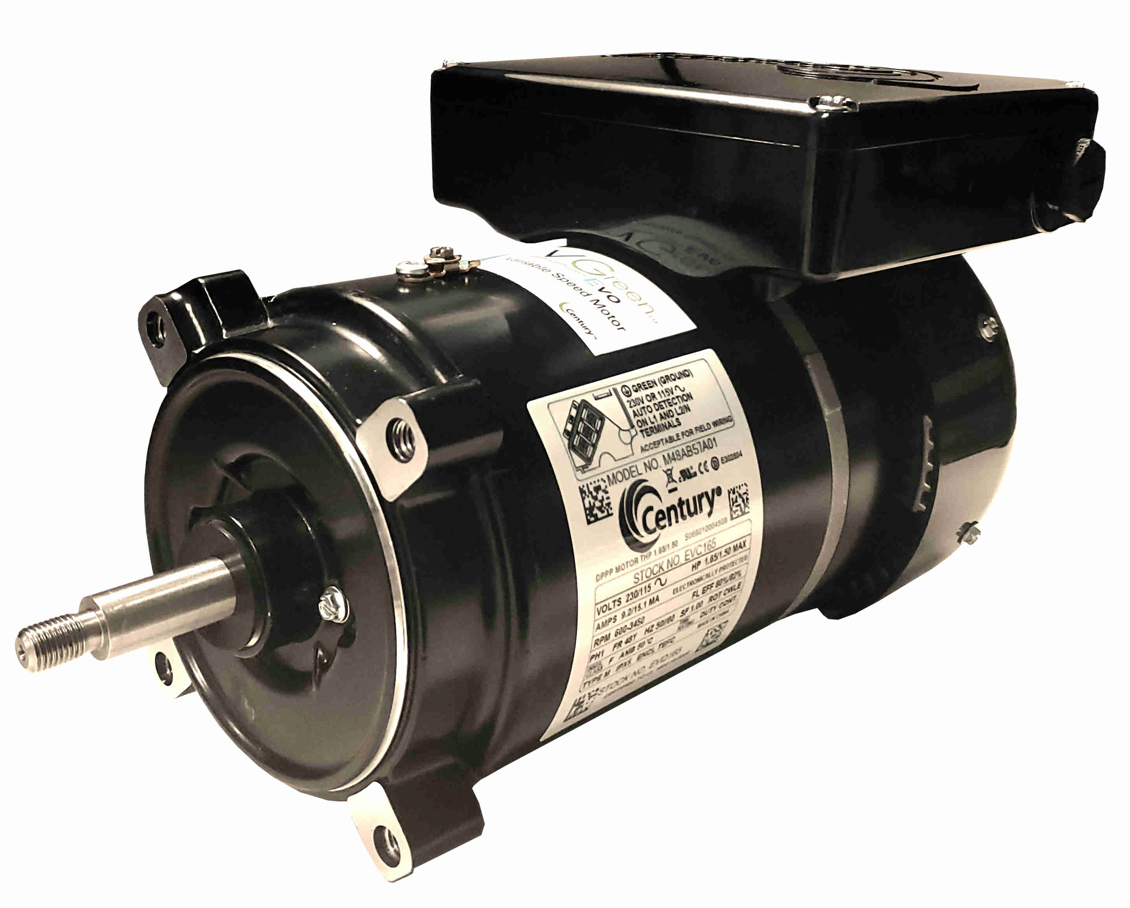

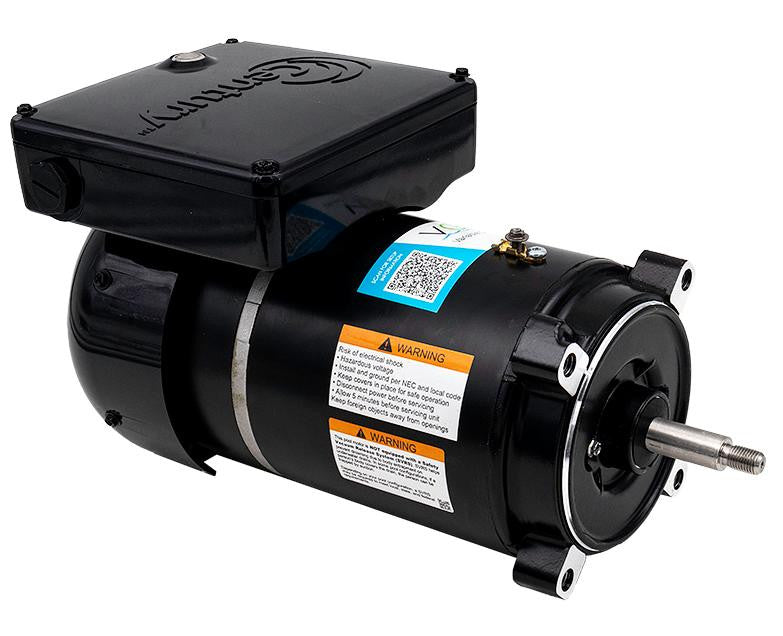

The REGAL BELOIT EVC130 VGreen Evo motor is a cost-effective variable speed pool pump motor designed to provide pool owners with maximum savings. The variable speed design allows the motor to be programmed at the optimal settings for energy savings. It offers ease of installation as a direct drop-in replacement for pool filter pump applications.
- New simplified user interface allows for easier programming and motor setup.
- IPX5 moisture intrusion rating provides enhanced protection against moisture.
- Lightweight, compact design, and rotatable mains wiring compartment allow for ease of installation.
Product Highlights
The VGreen Evo motor features a simplified user interface and offers various pre-programmed variable speed operating schedules.
Product Information
Standard Information
-
Brand: REGAL BELOIT
-
Manufacturer Part Number: EVC130
Technical Specifications
-
Dual Voltage: 230/115 VAC with Automatic Voltage Detection
-
Variable Speed Operation: 600-3450 RPM
-
Design: TEFC
-
Rotation: CCWPE
-
Phase: Single Phase
-
Frequency: 50/60 Hz
-
Shaft: 303 Stainless Steel
-
Insulation: Class F Insulation
-
Ambient Temperature: 50°C
-
Pump Speed: Variable Speed
-
Manufacturer: Regal Beloit America, Inc
-
Brand: Century Electric ( Formally AO Smith )
-
Motor Series: VGreen EVC130
-
Speed: Variable Speed
-
HP Rated: 1.30 HP
-
Service Factor: 1.0
-
THP: Up to 1.30 THP ( Max )
-
RPM Range: 1050 to 3450 RPM
-
Voltage: 230/115 Volts
-
Maximum Amp: 10.5 - 17.7 Amps
-
Flange: Round/Circular Flange
-
Frame: 56J
-
TEFC: TEFC
-
MPN: EVC130
