Regal Beloit EM3737F Century Economaster Condenser Fans Motor 1/3 HP 460 V

Product Description

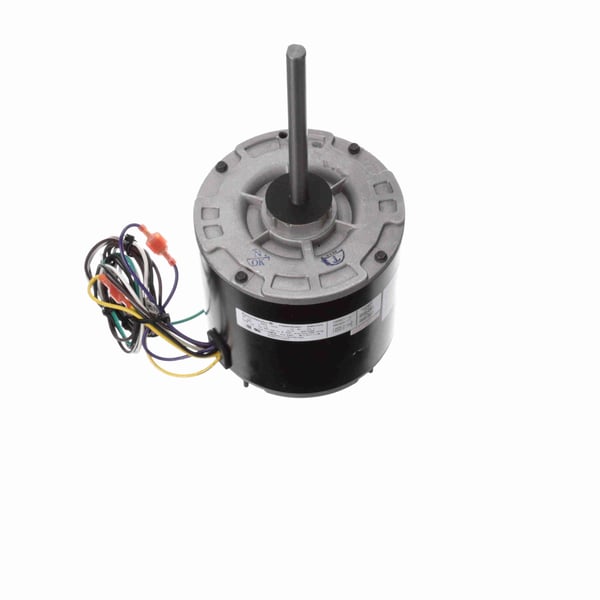

The REGAL BELOIT EM3737F Century Economaster Condenser Fan Motor is a 1/3 HP, single-phase motor operating at 60 Hz and 460 V, with a speed of 1075 RPM. This enclosed motor features a 48 frame and is thermally protected. It requires a 7.5 Mfd-370 Volts capacitor (not supplied).

• Permanent Split Capacitor (PSC) design.
• Thermally protected and Totally Enclosed Air Over.
• Features ball bearing and a 1/2" diameter shaft with double flat.

Product Highlights

This condenser fan motor is designed for HVAC/R applications, offering reliable performance with its robust construction and thermal protection.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: EM3737F
• Country of Origin: Mexico

Technical Specifications

• Brand: regal beloit
• Manufacturer: regalrexnord
• Model / MPN: EM3737F
• Product Type: ELECTRIC_MOTOR
• Frame: 48
• Phase: 1
• Output HP: 1/3 Hp
• Output KW: 0.25 kW
• Voltage: 460 V
• Speed: 1075 rpm
• Service Factor: 1
• Enclosure: Totally Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Current: 1.3 A
• Duty: Air Over
• Insulation Class: F
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 11.80 in
• Frame Length: 4.63 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6.0 in
• Application Type: Condenser Fan Motor
• Bearing Type: Ball
• Mounting Type: Extended Stud
• Shaft Size: 1/2 in Dia x 6 in L
• Special Features: Permanent Split Capacitor Motor
• Temperature Rating: 70 deg C
• Type: 6-Pole
