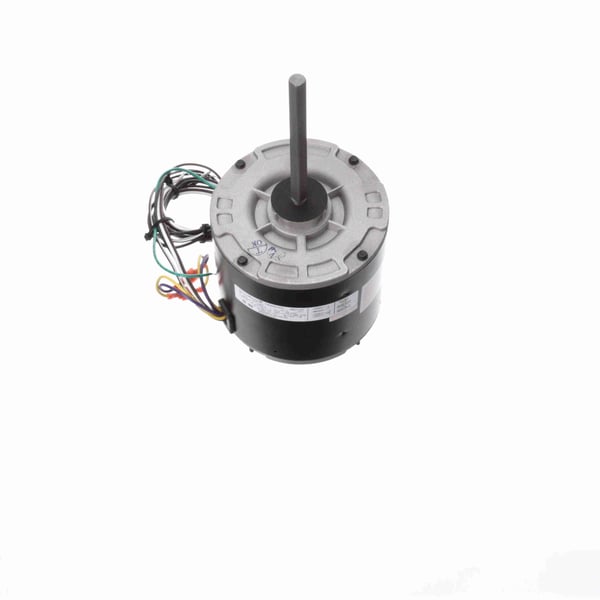

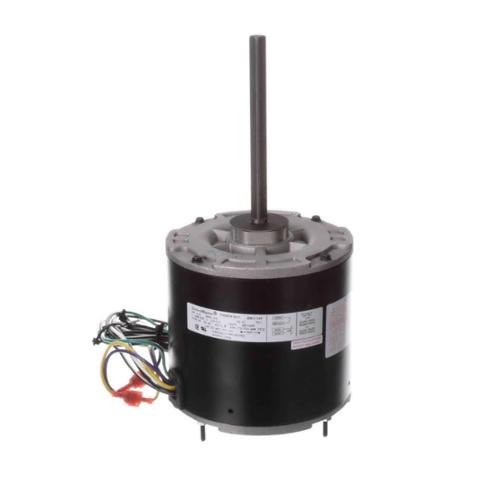

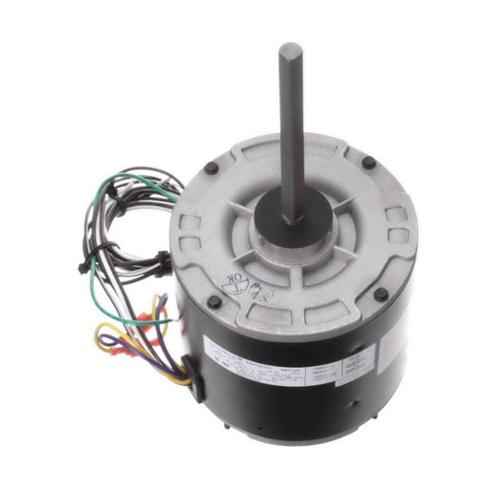

Regal Beloit EM3730F Condenser Fan Motor 1/2 HP 230V 1075 RPM

Product Description

The REGAL BELOIT EM3730F is a 1/2 HP condenser fan motor operating at 230V and 1075 RPM. This motor is thermally protected and features a 1/2 in Dia shaft with double flat. It comes with 36 in leads and extended studs lead end, mounting holes in shell, and belly band. Ideal for HVAC/R applications.

• Thermally protected
• 1/2 in Dia shaft with double flat
• 36 in leads

Product Highlights

Condenser fan motor with thermal protection, 1/2 in shaft, and extended studs for easy mounting.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: EM3730F

Technical Specifications

• HP Rating: 1/2 hp
• Voltage Rating: 208 to 230 V
• Amperage Rating: 3/3.5 A
• Frequency Rating: 60 Hz
• Phase: 1 ph
• Speed Rating: 1075 rpm
• Number of Speeds: 1
• Enclosure Type: Totally Enclosed Air Over
• Frame: 48Y
• Shaft Size: 1/2 in Dia x 4-1/2 in L
• Service Factor: 1
• Bearing Type: Ball
• Mounting Type: Extended Stud
• Temperature Rating: 70 deg C
• Insulation Class: Class F
• Housing Material: Steel
• Overall Height: 11.67 in
• Application Type: Condenser Fan Motor
• Material: Rolled Steel
• Rotation: Reversible
• Special Features: Permanent Split Capacitor Motor
• Speed: 1075 rpm
• Type: 6-Pole
