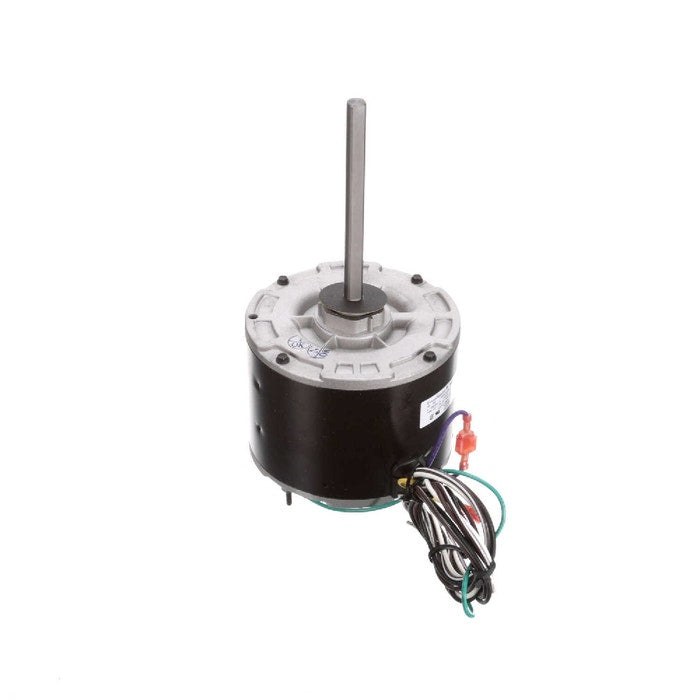

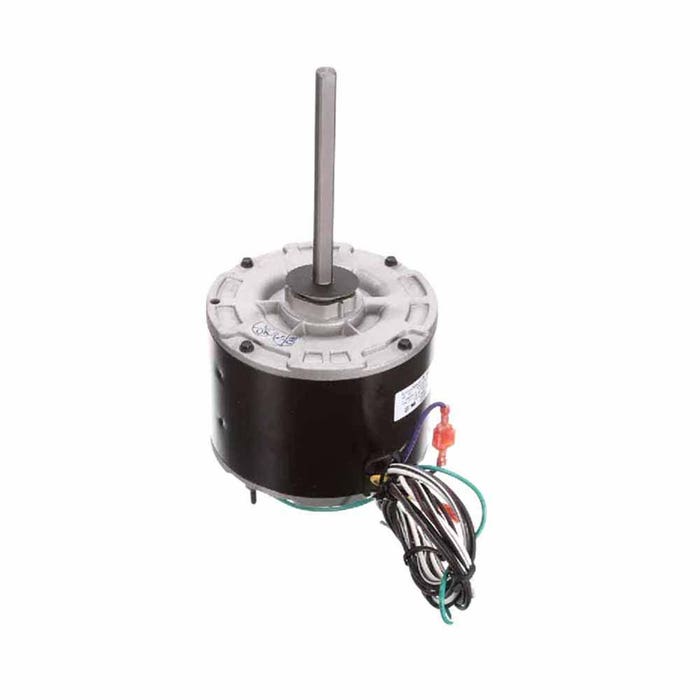

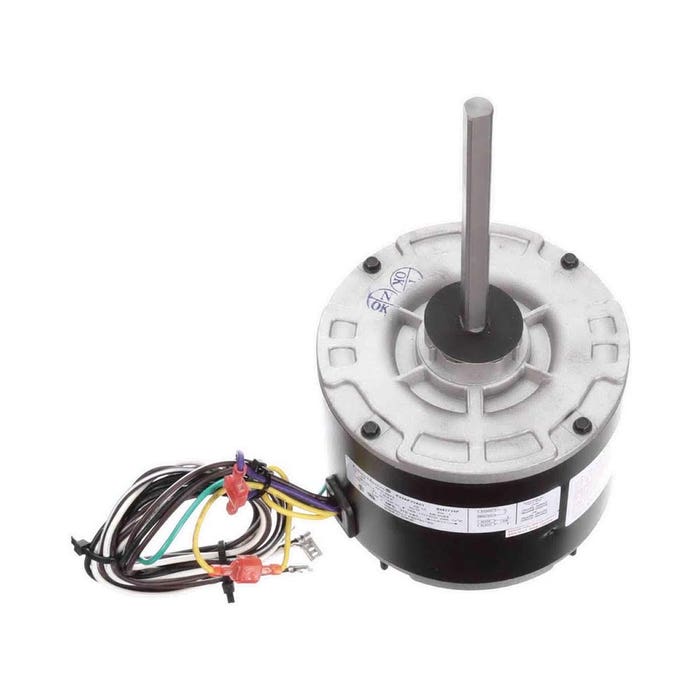

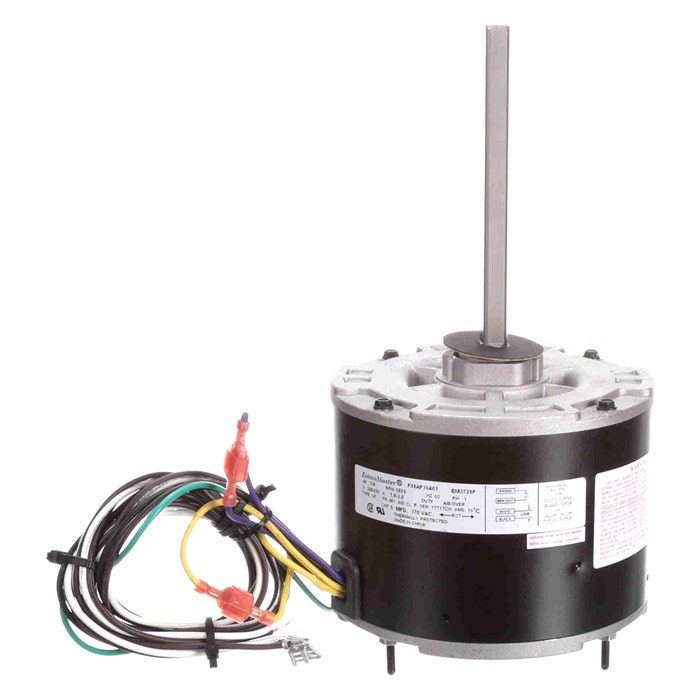

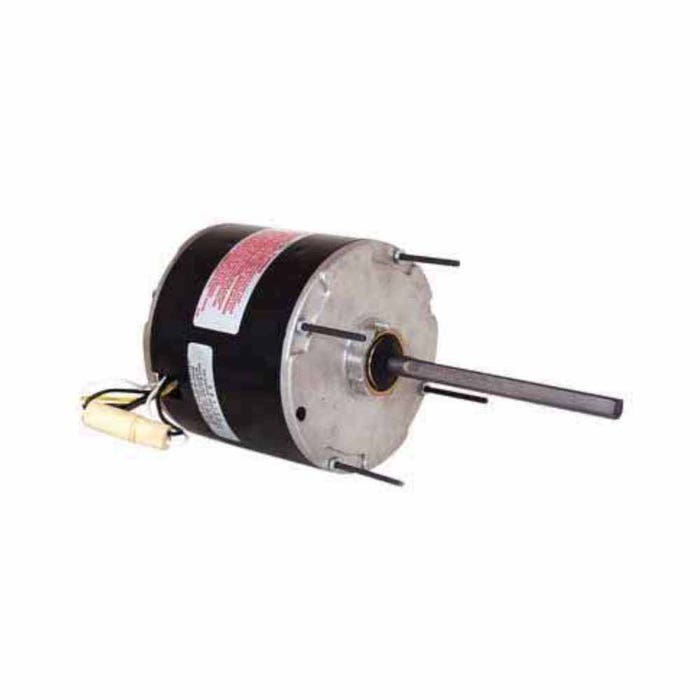

Regal Beloit EM3728F Condenser Fan Motor, 1/4 hp, 208 to 230 VAC, 60 Hz, 1 ph, NEMA 48Y, 1075 rpm, Band/Stud Mount, Enclosed

Product Description

The Regal Beloit EM3728F condenser fan motor is rated at 1/4 hp, 208 to 230 VAC, 60 Hz, 1 ph, NEMA 48Y, and 1075 rpm. This motor is designed for condenser fan applications and features an enclosed design with band/stud mounting. It requires a 5 uF at 370 VAC capacitor and has auto protector for safety.

• Auto protector
• Energy efficient
• 25 in L leads

Product Highlights

The Regal Beloit EM3728F is an energy-efficient condenser fan motor with reversible rotation and a NEMA 48Y frame. It operates at 1075 rpm and requires a 5 uF capacitor.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: EM3728F
• Country of Origin: India

Technical Specifications

• Application Type: Condenser Fan Motors
• Bearing Type: Ball
• Enclosure Type: Enclosed
• Frame: NEMA 48Y
• Frequency Rating: 60 Hz
• Horsepower: 1/4 hp
• Insulation Class: Class B
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Mounting Style: Band/Stud
• Number of Phases: 1 ph
• Number of Speeds: 1
• Rotation: Reversible
• Shaft Size: 1/2 in Dia x 6 in L
• Speed: 1075 rpm
• Temperature Rating: 60 deg C Ambient
• Voltage Rating: 208 to 230 VAC
• Motor Type: PSC
• Motor Enclosure: TEAO
• Capacitor Required: 5 MFD
• Motor Application: Condenser Duty
• Phase: 1
• Service Factor: 1
• Material: Steel
• Mounting Type: Extended Stud
