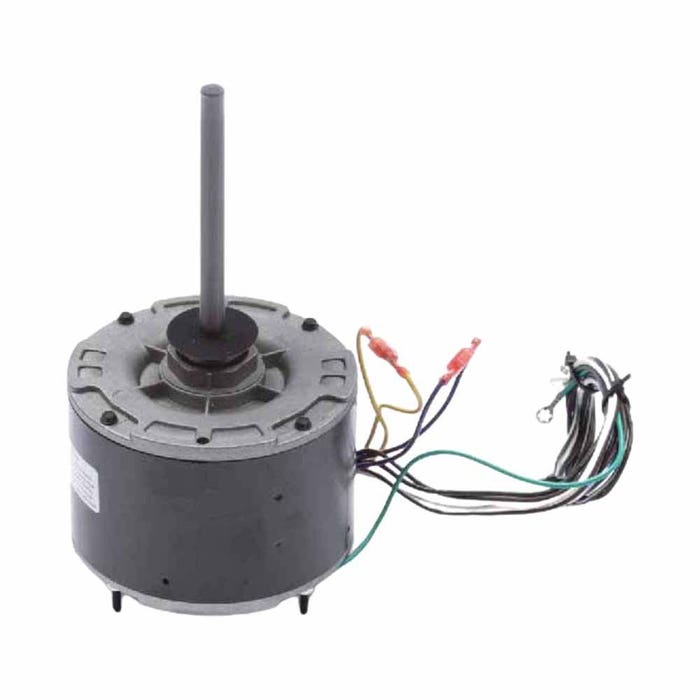

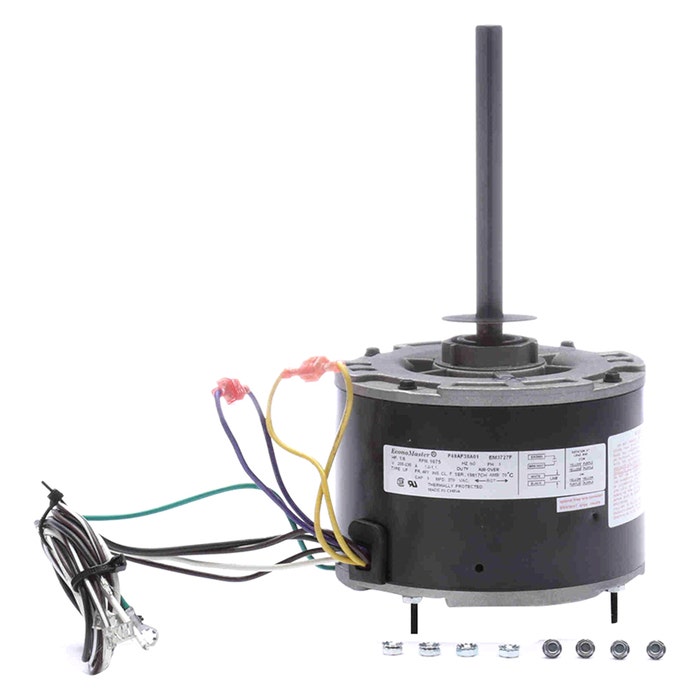

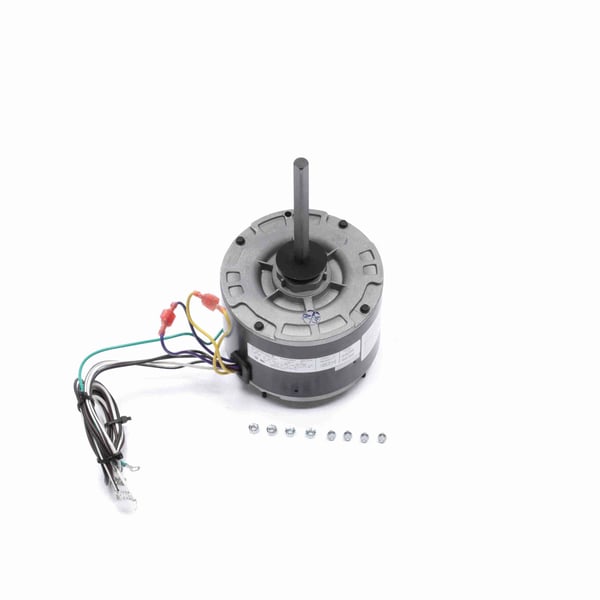

Regal Beloit EM3727F Condenser Fan Motor 1/6HP 1075RPM

Product Description

The Regal Beloit EM3727F condenser fan motor is a 1/6HP, 1-phase motor operating at 1075RPM. It features a totally enclosed air over design and class F insulation, suitable for 70°C ambient temperatures. The motor has a 1/2" diameter shaft with double flat and includes 36" leads for connection. Capacitor required: 5 mfd-370 volts (not supplied with motor).

• Thermally protected for safe operation.
• Ball bearing construction ensures smooth performance.
• Reversible rotation for flexible application.

Product Highlights

This condenser fan motor is designed for HVAC/R applications, offering reliable performance with its robust construction and thermal protection.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: EM3727F
• Country of Origin: India

Technical Specifications

• Rotation: Reversible
• Motor Type: PSC
• Frame Type: 48
• Motor Enclosure: TEAO
• Shaft Diameter: 1/2"
• Horsepower: 1/6 hp
• Input Voltage: 208V, 230V
• Phase: 1 Phase
• Hertz: 50/60Hz
• RPM: 1075
• Number of Speeds: 1
• Capacitor Required: 5 MFD
• Output KW: 0.13 kW
• Service Factor: 1
• Enclosure: Totally Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Duty: Air Over
• Insulation Class: F
• UL: Recognized
• CSA: Y
• CE: N
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Mounting: Extended Studs
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.42 in
• Frame Length: 3.25 in
• Shaft Extension: 6.0 in
• Application Type: Condenser Fan Motor
• Bearing Type: Ball
• Enclosure Type: Totally Enclosed Air Over
• Shaft Size: 1/2 in Dia x 6 in L
• Special Features: Permanent Split Capacitor Motor
• Speed: 1075 rpm
• Temperature Rating: 70 deg C
