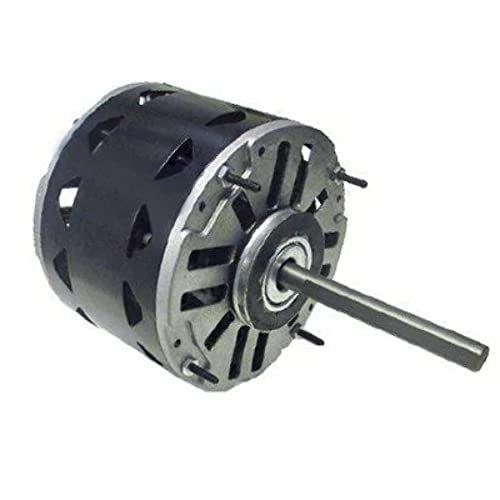

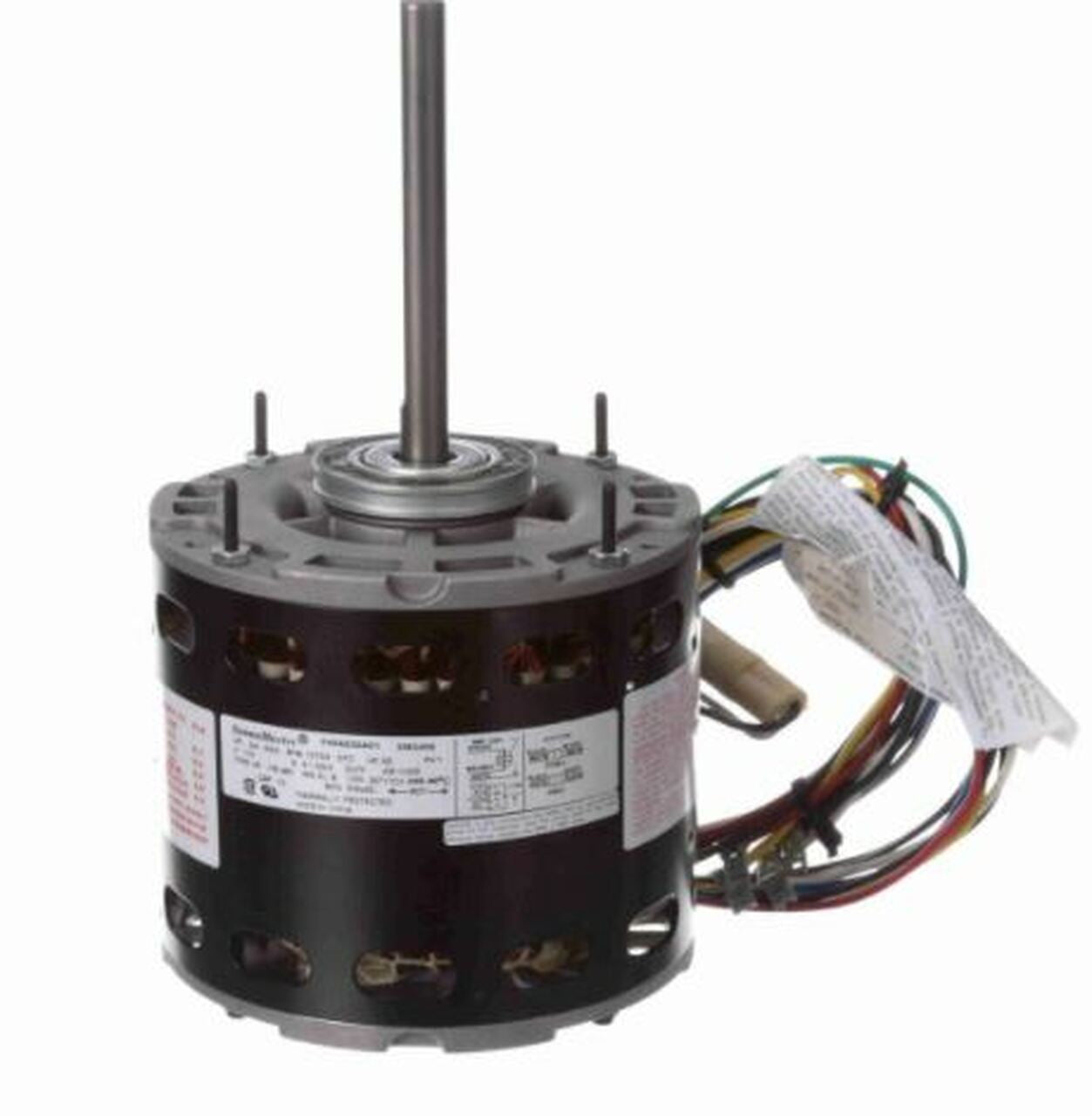

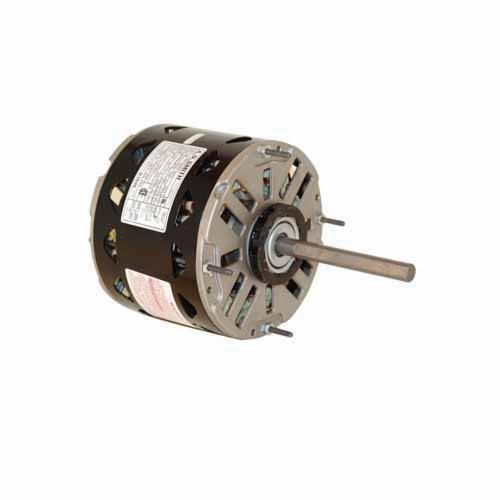

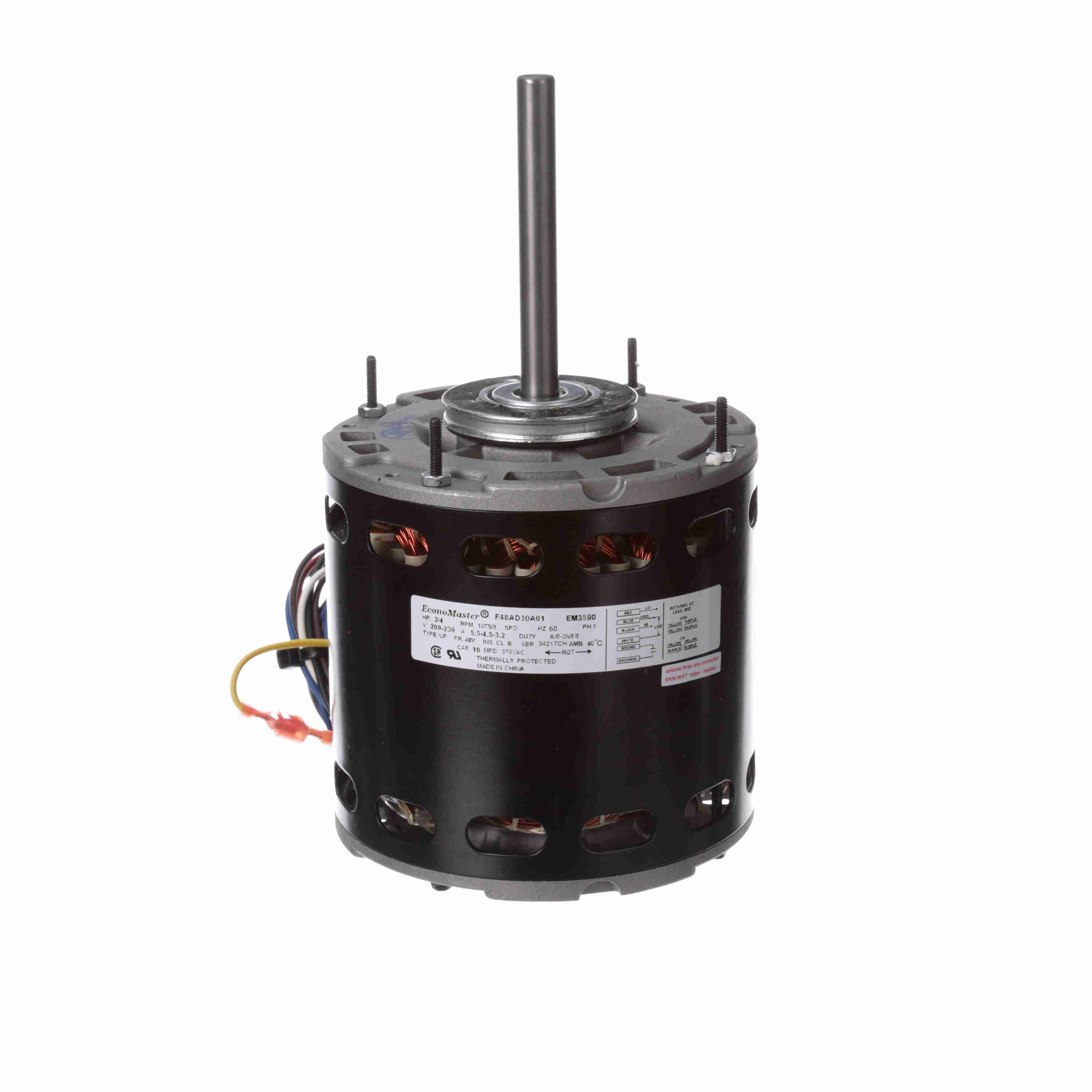

Regal Beloit EM3590 Em3590 3/4Hp 230V 1075Rpm Blwr

Product Description

The REGAL BELOIT EM3590 is a 3/4HP 230V 1075RPM blower motor. This direct drive blower motor features a permanent split capacitor and is thermally protected. Designed with an open enclosure and reversible rotation, it is suitable for fan and blower applications. Operates at 60 Hz and requires a 10MFD-370V capacitor.

• Features resilient rings and a reversing plug.
• Includes extended thru-bolts for secure mounting.
• Thermally protected for enhanced safety.

Product Highlights

Direct drive blower motor with open enclosure, reversible rotation, and thermal protection, ideal for various fan and blower applications.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: EM3590
• Country of Origin: India

Technical Specifications

• Horsepower: 3/4
• Voltage: 208-230
• Amps: 5.50
• RPM: 1075
• Frequency: 60 Hz
• Length: 5-3/8"
• Enclosure: Open
• Shaft Dim: 1/2” x 4.00”
• Type: Permanent Split Capacitor
• Speeds: 3
• Diameter: 5-5/8"
• Frame: 48Y
• Bearings: Sleeve
• Rotation: Reversible
• Protector: Thermally Protected
• Phase: 1
• Ambient Temperature: 40 °C
• Capacitor Rating: 10MFD-370V
• Application Type: Fan & Blower Motors
• Insulation Class: Class B
• Mounting Style: Band/Ring/Stud
• Number of Phases: 1 ph
• Service Factor: 1
• Thermal Protection: Automatic
• Duty: Air Over
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Mounting: Extended Studs
• Motor Orientation: Horizontal
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.36 in
• Frame Length: 5.49 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 4.0 in
• SF: 1.0
• Shaft: 1/2" x 4.5"
• Item Name: MOTOR,ALTERNATING CURRENT
• Part Number: EM3590
• OVERALL HEIGHT: 5.51 INCHES
• OVERALL WIDTH: 4.72 INCHES
• ROTOR SPEED RATING IN RPM: 1075.0 SINGLE FULL LOAD
