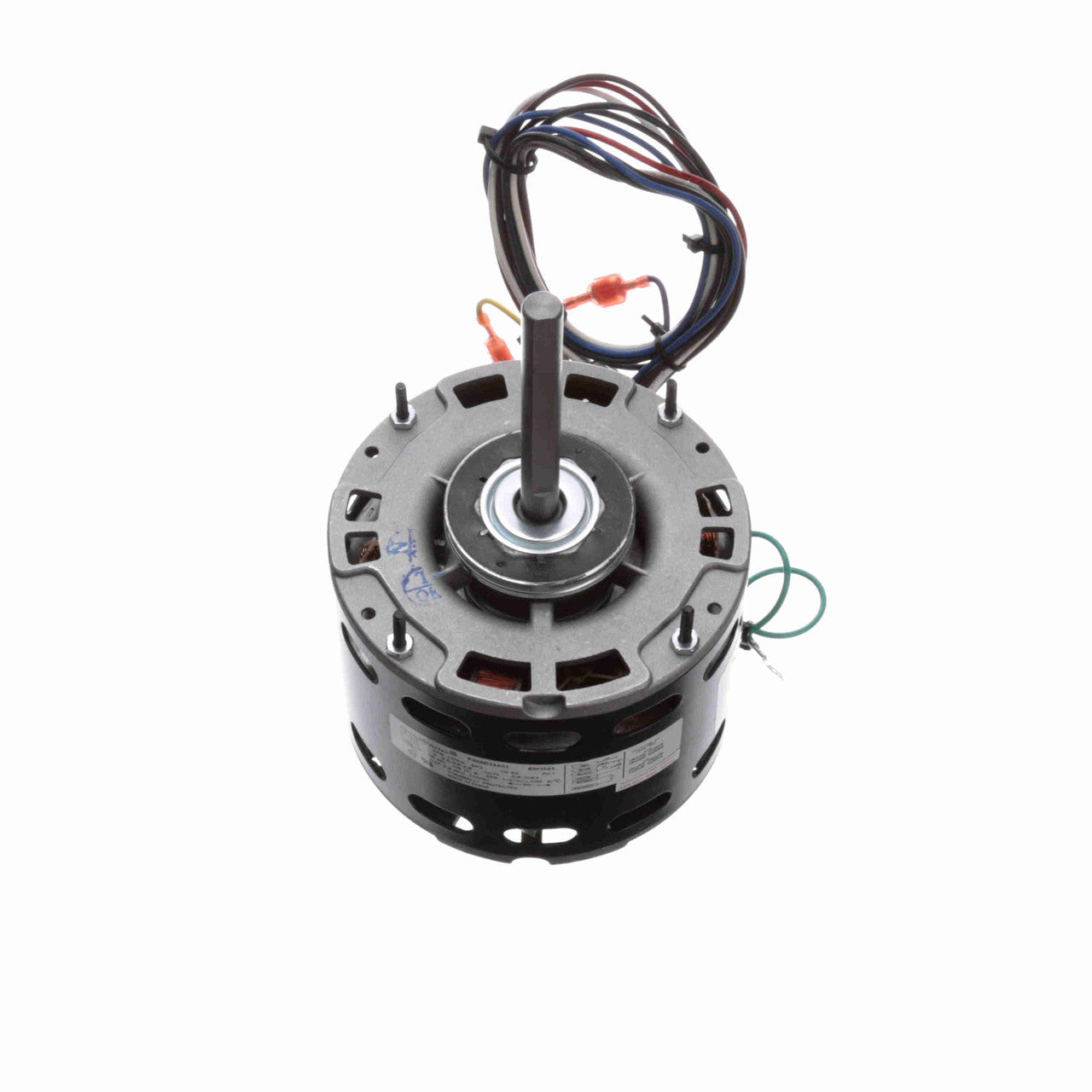

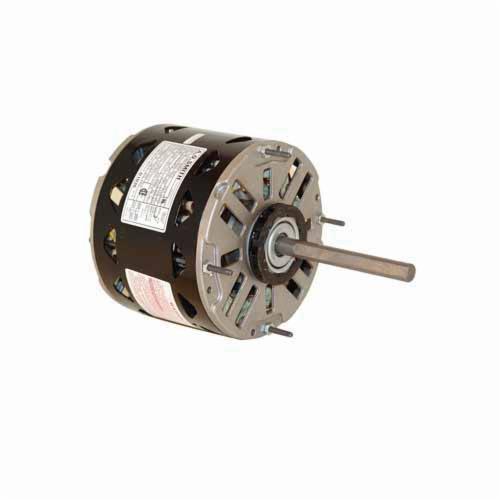

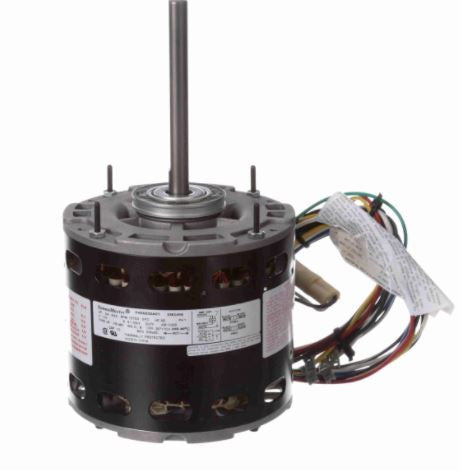

Regal Beloit EM3585 Blower Motor 1/3 HP

Product Description

The REGAL BELOIT EM3585 is a 1/3 HP blower motor designed for fan and blower applications. This direct drive motor operates at 115 VAC, 60 Hz, and 1075 RPM with 3 speeds. It features an auto protector and is energy efficient. Requires a 7.5 uF at 370 VAC capacitor.

• Auto protector
• Energy efficient
• 25 in L leads
• Requires 7.5 uF at 370 VAC capacitor

Product Highlights

This motor is ideal for HVAC systems, ensuring efficient airflow and quiet operation in fan and blower systems.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: EM3585
• Country of Origin: Mexico

Technical Specifications

• MPN: EM3585
• Brand: REGAL BELOIT
• Amperage Rating: 5.5/3/2 A
• Application Type: Fan & Blower Motors
• Bearing Type: Sleeve
• Enclosure Type: Open
• Frame: NEMA 48Y
• Frequency Rating: 60 Hz
• Horsepower: 1/3 hp
• Insulation Class: B
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Mounting Style: Band/Ring/Stud
• Number of Phases: 1 ph
• Number of Speeds: 3
• Rotation: Reversible
• Shaft Size: 1/2 in Dia x 4 in L
• Speed: 1075 rpm
• Temperature Rating: 40 deg C Ambient
• Voltage Rating: 115 VAC
• Output HP: 1/3 Hp
• Output KW: 0.25 kW
• Service Factor: 1
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Duty: Continuous Air Over
• Poles: 6
• Electrical Type: Permanent Split Capacitor
• Mounting: Resilient Rings
• Motor Orientation: Any
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 9.39 in
• Frame Length: 3.82 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 4.00 in
• Height: 6.81 IN
• Length: 13.78 IN
• Width: 6.41 IN
• Starting Method: Across The Line
• CAPACITOR: Requires 7.5 MFD capacitor (not included)
