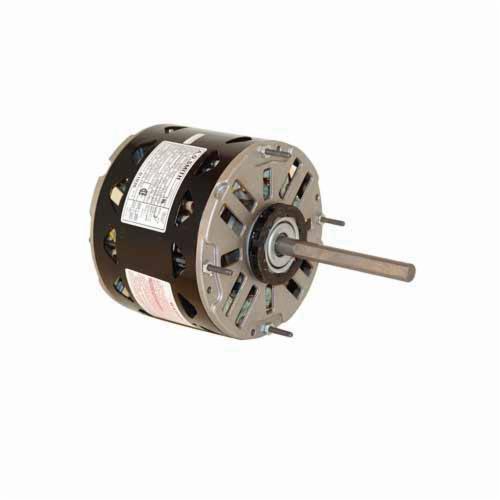

Regal Beloit EM3584 EconoMaster Direct Drive Blower Motor 1/4 hp

Product Description

The Regal Beloit EM3584 EconoMaster Direct Drive Blower Motor is a 1/4 hp motor operating at 208 to 230 VAC and 60 Hz. This motor is designed for fan and blower applications, featuring a NEMA 48Y frame and an open enclosure. It operates at 1075 rpm with 3 speeds and includes an auto protector.

• Energy efficient design.
• Requires a 5 uF at 370 VAC capacitor.
• Features a reversible rotation.

Product Highlights

The Regal Beloit EM3584 is ideal for direct drive blower applications. It offers multiple mounting options and thermal protection.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: EM3584
• Country of Origin: India

Technical Specifications

• Amperage Rating: 2/1.1/0.9 A
• Application Type: Fan & Blower Motors
• Bearing Type: Sleeve
• Enclosure Type: Open
• Frame: NEMA 48Y
• Frequency Rating: 60 Hz
• Horsepower: 1/4 hp
• Insulation Class: Class B
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Mounting Style: Band/Ring/Stud
• Number of Phases: 1 ph
• Number of Speeds: 3
• Rotation: Reversible
• Shaft Size: 1/4 in Dia x 4 in L
• Speed: 1075 rpm
• Temperature Rating: 40 deg C Ambient
• Voltage Rating: 208 to 230 VAC
• Brand: REGAL REXNORD
• MPN: EM3584
• Output HP: 1/4 Hp
• Output KW: 0.19 kW
• Voltage: 208-230 V
• Service Factor: 1
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Current: 2.0 A
• Duty: Air Over
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Mounting: Resilient Rings
• Motor Orientation: Horizontal
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 9.11 in
• Frame Length: 3.50 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 4.5 in
