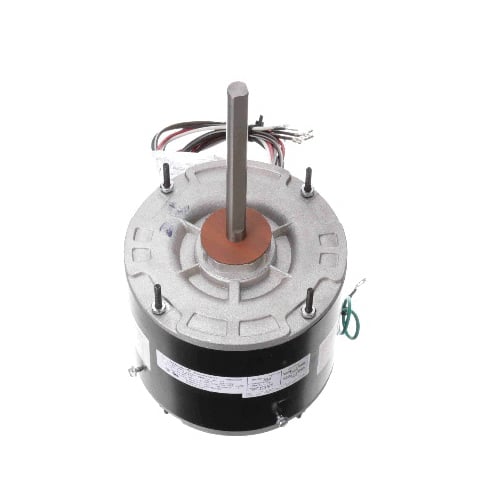

Regal Beloit EM3465F Century PRO-E SERIES Condenser Fan Motor 1/3, 1/5 HP 208-230 V

Product Description

The REGAL BELOIT EM3465F Century PRO-E SERIES Condenser Fan Motor is a 1/3, 1/5 HP motor designed for condenser fan applications. It operates at 208-230 V, 60 Hz, and 1075 RPM with two speeds. The motor features a totally enclosed air over enclosure and automatic thermal protection. It has extended studs for mounting and a reversible rotation.

• Requires a 7.5 or 5 Mfd-370V capacitor (not supplied).
• Features ball bearing and class F insulation, suitable for 70°C ambient temperatures.
• Includes 48" leads for electrical connection.

Product Highlights

This condenser fan motor is designed for HVAC/R applications, offering reliable performance with its thermally protected design and reversible rotation.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: EM3465F
• Country of Origin: India

Technical Specifications

• Phase: 1
• Output HP: 1/3, 1/5 Hp
• Output KW: 0.25 kW
• Voltage: 208-230 V
• Speed: 1075 rpm
• Service Factor: 1.0
• Frame: 48Y
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Current: 2.6, 1.6 A
• Duty: Air Over
• Insulation Class: F
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 2
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 11.42 in
• Frame Length: 4.93 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6.0 in
• Application Type: Condenser Fan Motor
• Bearing Type: Ball
• Material: Rolled Steel
• Shaft Size: 1/2 in Dia x 6 in L
• Special Features: Permanent Split Capacitor Motor
• Temperature Rating: 70 deg C
• Type: 6-Pole
