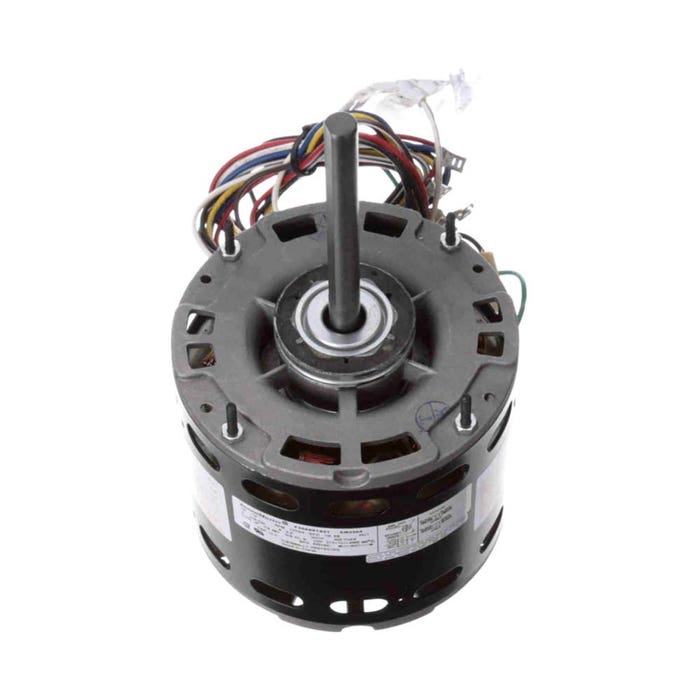

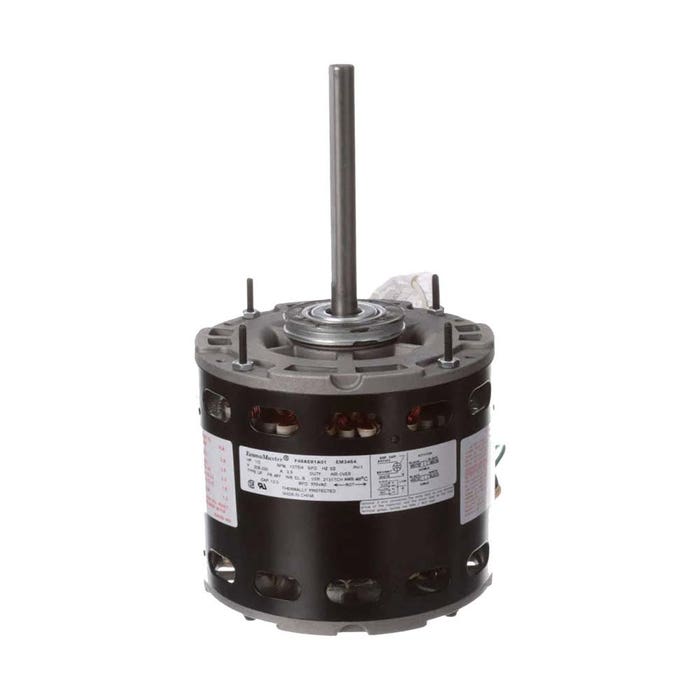

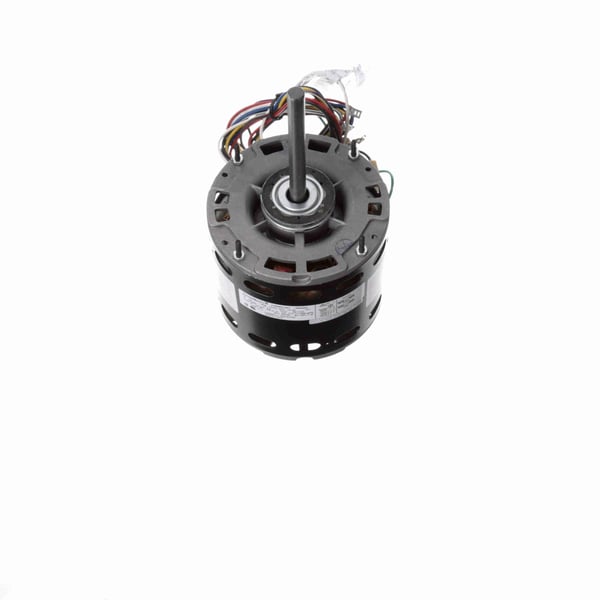

Regal Beloit EM3464 Blower Motor 1/6-1/2 hp 230V 1075RPM

Product Description

The REGAL BELOIT EM3464 blower motor is a 1-Phase motor with 4 speeds and ball bearings. It features a 1/2" shaft and operates at 1075RPM with a voltage of 230V. Designed for fan and blower applications, this motor offers reliable performance in HVAC/R systems.

• 1/2 in diameter shaft with flat
• Thermally protected
• Automatic overload protector

Product Highlights

This blower motor is ideal for HVAC/R applications, providing efficient and consistent performance with its multiple speed options and robust design.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: EM3464

Technical Specifications

• Motor Enclosure: OAO
• Motor Type: PSC
• Supplier Part Number: EM3464
• UPC: 786674060389
• Frame Type: 48
• Phase: 1 Phase
• Supply Voltage: 208V, 230V
• Hertz: 50/60Hz
• Horsepower (HP): 1/6
• Amps: 0.35 A
• Motor Application: Fan / Blower
• Number of Speeds: 4
• RPM: 1075
• Application Type: Fan and Blower Motor
• Bearing Type: Ball
• Enclosure Type: Open Enclosure Air over
• Frame: 48Y
• Frequency Rating: 60 Hz
• Insulation Class: Class B
• Material: Rolled Steel
• Mounting Type: Extended Stud
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 in Dia x 4-1/2 in L
• Special Features: Permanent Split Capacitor Motor
• Speed: 1075 rpm
• Temperature Rating: 40 deg C
• Type: 6-Pole
• Voltage Rating: 208 to 230 V
