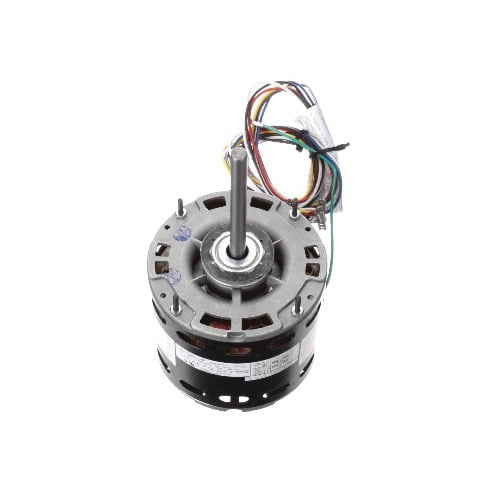

Regal Beloit EM3463 Century 6-Pole HVAC/R Motor 1/2 hp Extended Stud Mount

Product Description

The REGAL BELOIT EM3463 Century 6-Pole HVAC/R Motor is a 1/2 hp motor designed for fan and blower applications. It operates at 115 V and 60 Hz with a speed of 1075 rpm. The motor features an open enclosure and extended stud mounting. It requires a 10 Mfd 370 V capacitor (not included).

• Features a 1/2 in diameter shaft with flat.
• Equipped with an automatic overload protector and is thermally protected.
• Includes 36-1/2 in leads with quick connect terminal.

Product Highlights

This Century HVAC/R motor is suitable for direct drive fan blower applications. It has a reversible rotation and a Class B insulation.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: EM3463

Technical Specifications

• Amperage Rating: 7 A
• Application Type: Fan and Blower Motor
• Bearing Type: Ball
• Enclosure Type: Open Enclosure Air over
• Frame: 48Y
• Frequency Rating: 60 Hz
• Horsepower: 1/2 hp
• Insulation Class: Class B
• Material: Rolled Steel
• Mounting Type: Extended Stud
• Number of Speeds: 4
• Phase: 1
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 in Dia x 4-1/2 in L
• Special Features: Permanent Split Capacitor Motor
• Speed: 1075 rpm
• Temperature Rating: 40 deg C
• Type: 6-Pole
• Voltage Rating: 115 V
