Regal Beloit EM3459F EconoMaster Condenser Fan Motor 1/3 to 1/6 hp

Product Description

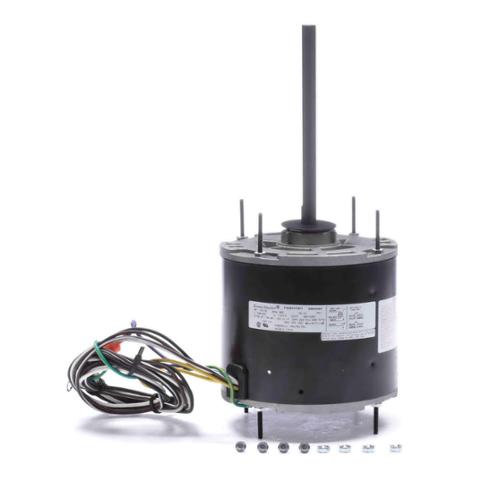

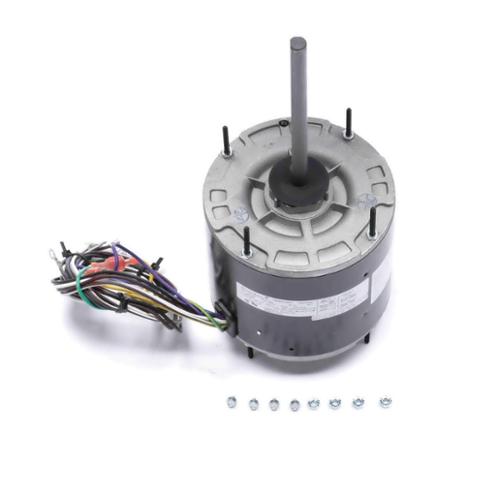

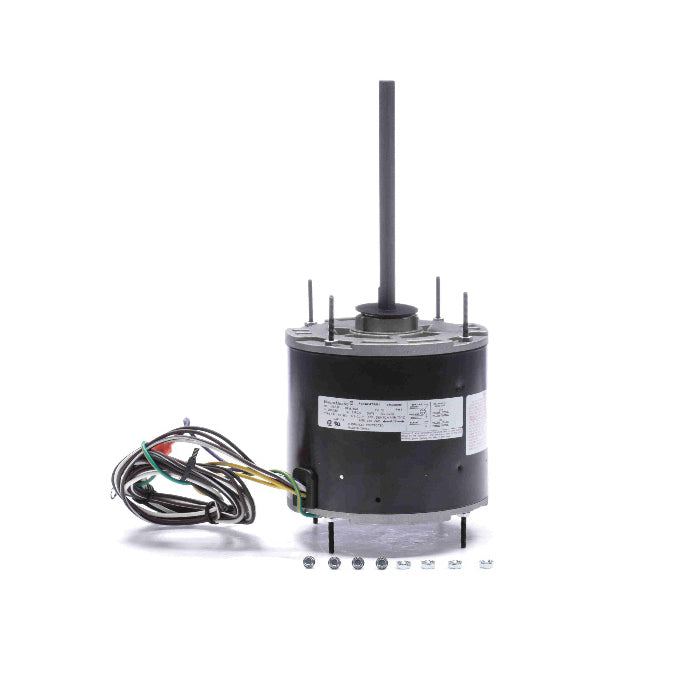

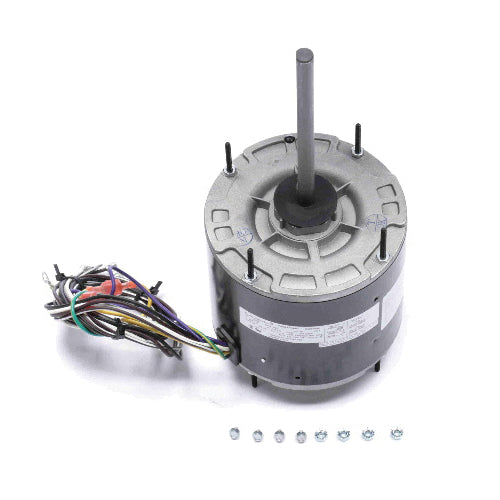

The Regal Beloit EM3459F EconoMaster condenser fan motor is a 4-in-1 motor operating at 208 to 230 VAC and 60 Hz. This motor features a NEMA 48Y frame, enclosed design, and runs at 825 rpm. It is designed for band or stud mounting and includes an automatic overload protector.

• Requires a 7.5 Mfd 370 V capacitor (not included).
• Features a 1/2 in diameter shaft with double flat.
• Includes extended stud shaft end and lead end with mounting holes in shell and belly band.

Product Highlights

This condenser fan motor is thermally protected and suitable for various condenser fan applications.

Product Information

Standard Information

• Brand: Regal Beloit
• Manufacturer Part Number: EM3459F
• Country of Origin: India

Technical Specifications

• Amperage Rating: 1.8 to 2 A
• Application Type: Condenser Fan Motors
• Bearing Type: Ball
• Enclosure Type: Enclosed
• Frame: NEMA 48Y
• Frequency Rating: 60 Hz
• Horsepower: 1/3 to 1/8 hp
• Insulation Class: Class B
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Mounting Style: Band/Stud
• Number of Phases: 1 ph
• Number of Speeds: 1
• Rotation: Reversible
• Shaft Size: 0.5 in Dia x 6.7 in L
• Speed: 825 rpm
• Temperature Rating: 60 deg C Ambient
• Type: 4-in-1
• Voltage Rating: 208 to 230 VAC
• Output KW: 0.25 kW
• Service Factor: 1
• Thermal Protection: Automatic
• Duty: Air Over
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 8
• Motor Orientation: Any
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 12.45 in
• Frame Length: 4.94 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6.7 in
• Housing Material: Steel
