Regal Beloit EM3458F Cond Mtr Ht 1/3-1/6 HP

Product Description

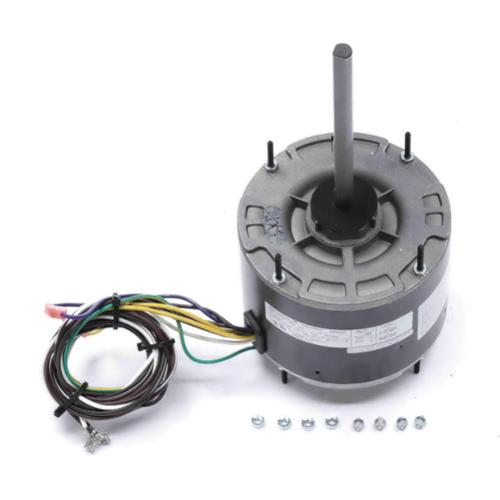

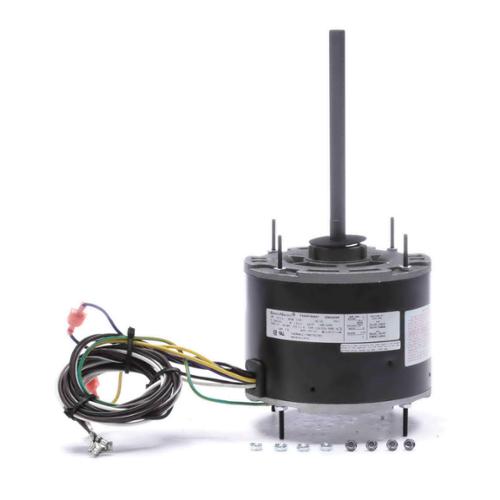

The REGAL BELOIT EM3458F is a 1/3-1/6 HP condenser fan motor designed for various applications. It features thermal protection and a 1/2 in Dia shaft with a double flat. The motor includes 48 in leads and extended studs on both the shaft and lead ends, along with mounting holes in the shell and a belly band.

• Thermally protected
• 1/2 in Dia shaft with double flat
• 48 in leads

Product Highlights

Condenser fan motor with thermal protection, 48 in leads and extended studs for versatile mounting.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: EM3458F

Technical Specifications

• HP Rating: 1/3 hp
• Voltage Rating: 208 to 230 V
• Amperage Rating: 1.8/2 A
• Frequency Rating: 60 Hz
• Phase: 1 ph
• Speed Rating: 1075 rpm
• Number of Speeds: 1
• Enclosure Type: Totally Enclosed Air Over
• Frame: 48Y
• Shaft Size: 1/2 in Dia x 3-1/2 in L
• Service Factor: 1
• Bearing Type: Ball
• Mounting Type: Extended Stud
• Temperature Rating: 70 deg C
• Insulation Class: Class F
• Housing Material: Steel
• Overall Height: 11.68 in
