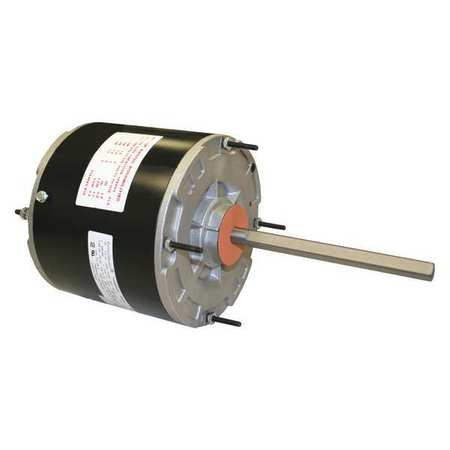

Regal Beloit EM3405 EconoMaster Condenser Fan Motor, 1/3 hp, 208 to 230 VAC, 60 Hz, 1 ph, NEMA 48Y

Product Description

The Regal Beloit EconoMaster EM3405 is a condenser fan motor designed for reliability and efficiency. With a power rating of one-third horsepower, this motor operates seamlessly at voltages of two hundred eight to two hundred thirty VAC. It is suitable for use in various HVAC applications, ensuring optimal performance in cooling systems.

• Amperage rating of 1.8 A
• Includes an auto protector for enhanced safety
• Energy efficient operation

Product Highlights

This motor offers a reversible rotation and is equipped with a ball bearing for smooth operation. Its enclosed design makes it suitable for outdoor environments.

Product Information

Standard Information

• Brand: Regal Beloit
• Part Number: L6343

Technical Specifications

• Frame: NEMA 48Y
• Speed: 825 rpm
• Horsepower: 1/3 hp
• Voltage Rating: 208 to 230 VAC
• Frequency Rating: 60 Hz
• Amperage Rating: 1.8 A
• Insulation Class: Class B
• Rotation: Reversible
• Mounting Style: Band/Stud
• Enclosure Type: Enclosed
• Number of Phases: 1 ph
• Number of Speeds: 1
• Temperature Rating: 60 deg C Ambient
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Shaft Size: 1/2 in Dia x 6 in L
