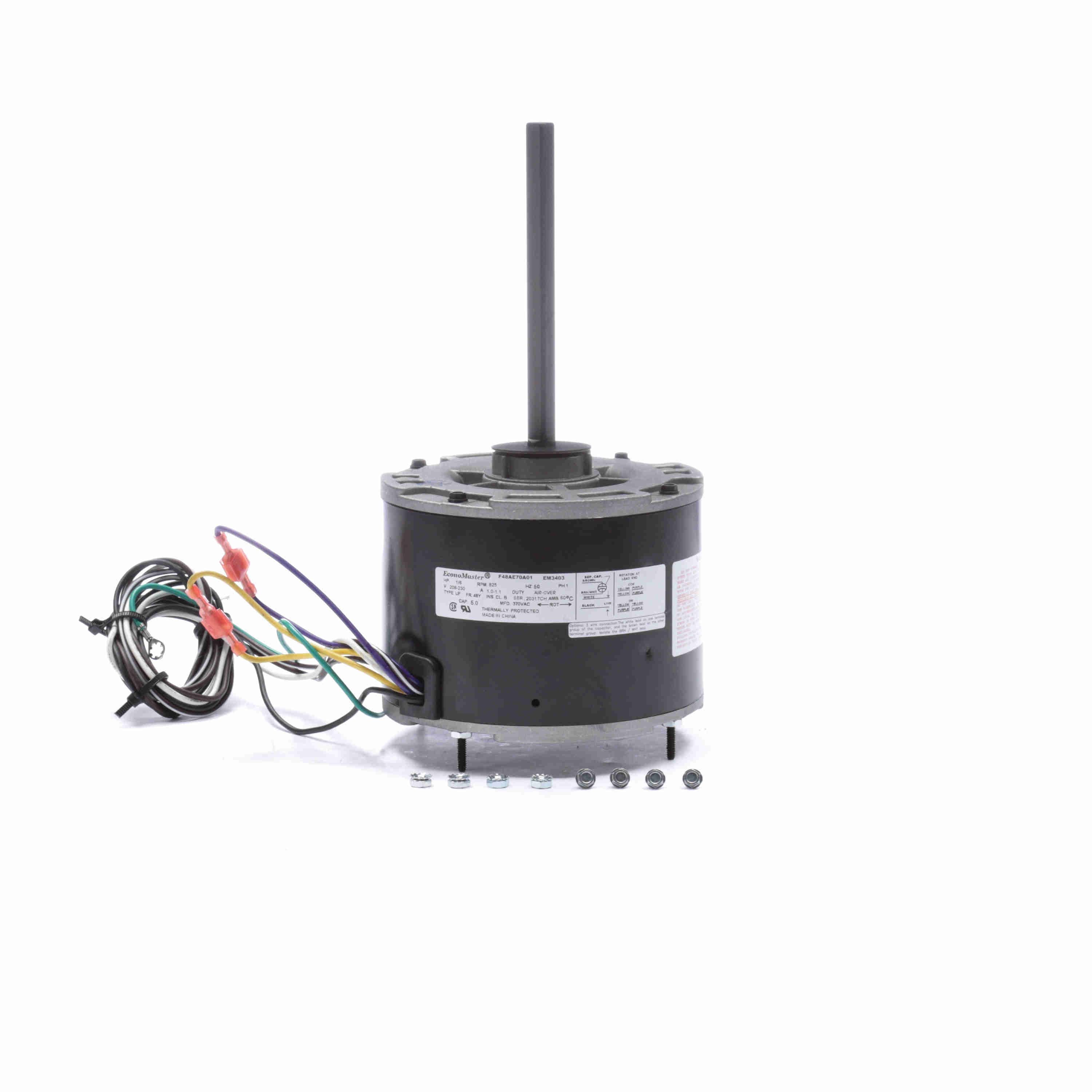

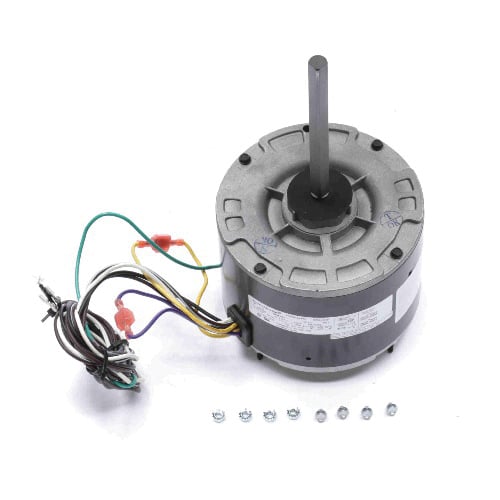

Regal Beloit EM3403F Economaster Condenser Fan Motor 1/6 hp

Product Description

The REGAL BELOIT EM3403F EconoMaster condenser fan motor is designed for HVAC/R applications. This motor operates at 208-230 V, 60 Hz, and 825 RPM. It features thermal protection and requires a 5 Mfd-370V capacitor (not included).

• Requires 5 Mfd 370 V capacitor (not supplied with motor)
• Features a 1/2" diameter shaft with double flat and 36" leads
• Includes extended studs lead end, mounting holes in shell, and belly band

Product Highlights

This condenser fan motor has a totally enclosed air over enclosure and is suitable for various mounting orientations.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: EM3403F
• Country of Origin: India

Technical Specifications

• Phase: 1
• Output HP: 1/6 Hp
• Output KW: 0.13 kW
• Voltage: 208-230 V
• Speed: 825 rpm
• Service Factor: 1
• Frame: 48Y
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 60 °C
• Frequency: 60 Hz
• Current: 1.0-1.1 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 8
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Steel
• Shaft Type: Flat
• Overall Length: 10.71 in
• Frame Length: 4.11 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6.0 in
• Application Type: Condenser Fan Motor
• Bearing Type: Ball
• Mounting Type: Extended Stud
• Type: 8-Pole
• Voltage Rating: 208 to 230 V
