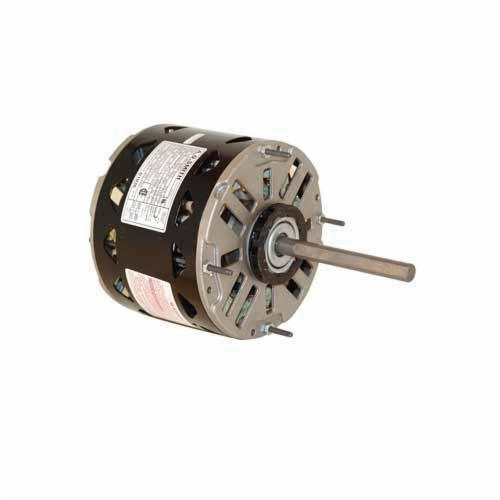

Regal Beloit DL1076 Century by Packard Direct Drive Blower Motor 3/4 hp 115 VAC 60 Hz 1 ph

Product Description

The Regal Beloit DL1076 is a direct drive blower motor designed for various fan and blower applications. This motor operates at three-quarter horsepower (3/4 hp) with a voltage rating of 115 VAC and a frequency of sixty Hertz (60 Hz).

• Features automatic overload protection.
• Offers reversible rotation for flexible installation.
• Includes a mounting kit for easy setup.

Product Highlights

This motor is suited for use in HVAC systems, providing reliable airflow in residential and commercial settings.

Product Information

Standard Information

• Brand: Regal Beloit
• Part #: L6319

Technical Specifications

• Amperage Rating: 8.9 A
• Application Type: Fan & Blower Motors
• Bearing Type: Sleeve
• Country of Origin: CN
• Dimensions: 5-5/8 in Dia
• Enclosure Type: Open
• Frame: NEMA 48
• Frequency Rating: 60 Hz
• Horsepower: 3/4 hp
• Insulation Class: Class B
• Mounting Style: Mounting Kit
• Number of Phases: 1 ph
• Number of Speeds: 3
• Package Height: 7.0 in
• Package Length: 15.5 in
• Package Width: 6.75 in
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 in Dia x 4-1/2 in L
• Speed: 1075 rpm
• Temperature Rating: 40 deg C Ambient
• Voltage Rating: 115 VAC
