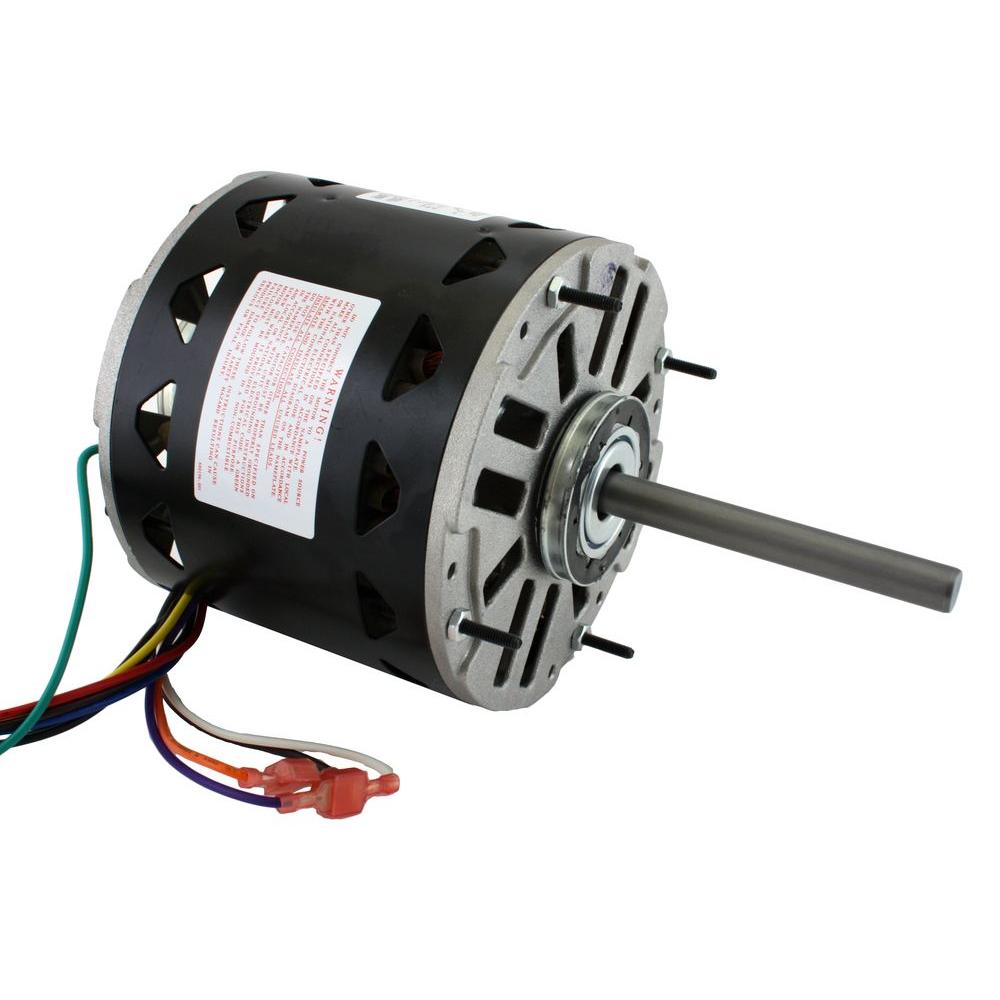

Regal Beloit DL1056 Century UF Blower AC Motor 1/2 hp 115 VAC 60 Hz 1 ph NEMA 48

Product Description

The Regal Beloit DL1056 is a reliable UF blower AC motor with a power rating of one-half horsepower. This motor operates with a voltage of one hundred fifteen VAC and a frequency of sixty Hertz. It features a NEMA 48 frame and has a speed of one thousand seventy-five rpm. The open enclosure design allows for continuous air-over cooling, making it suitable for various applications.

• Continuous air-over cooling
• Standard efficiency for optimal performance
• Reversible rotation for flexible installation

Product Highlights

This motor is ideal for indoor and dual wheel blower applications, ensuring efficient operation within HVAC systems.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: DL1056

Technical Specifications

• Amperage Rating: 7.1 A
• Applications: Indoor and Dual Wheel Blower
• Application Type: Fan Coil Motors
• Bearing Type: Sleeve
• Dimensions: 5.625 inches Dia x 9.49 inches L
• Enclosure Type: Open
• Frequency Rating: 60 Hz
• Horsepower: 1/2 hp
• Includes: 2-1/4 inch Ring and 2-1/2 inch Adapter
• Insulation Class: Class B
• Manufacturing Standards: CSA Certified, UL Listed
• Number of Phases: 1 ph
• Number of Speeds: 3
• Package Weight: 15.0 lb
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 4-1/2 inches L
• Speed: 1075 rpm
• Temperature Rating: 40 deg C
• Type: UF
• Voltage Rating: 115 VAC
