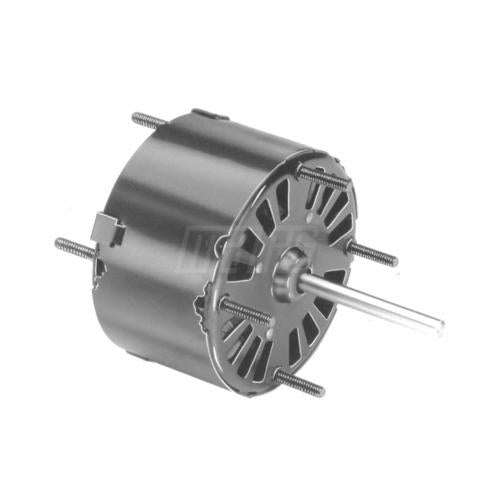

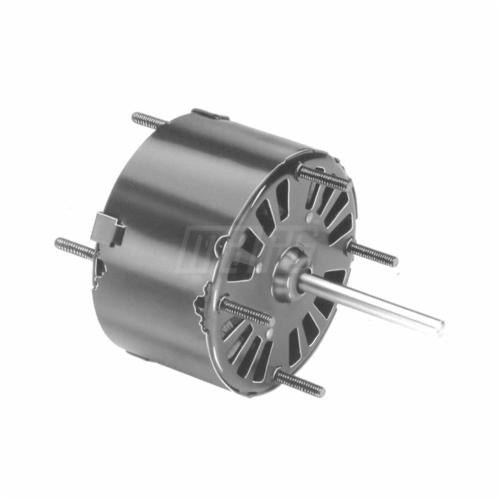

Regal Beloit D126 Fasco by Mars Shaded Pole Refrigeration Motor 1/40 hp 115 VAC 60 Hz

Product Description

The Regal Beloit D126 is a shaded pole refrigeration motor designed for efficient operation. This motor operates at 1/40 horsepower and is rated for 115 volts with a frequency of 60 hertz. It rotates at a speed of 1500 rpm.

• Power: 1/40 HP
• Voltage: 115 VAC
• Speed: 1500 RPM

Product Highlights

This motor is suitable for refrigeration applications and features an open ventilated enclosure for optimal cooling. The design ensures reliability and efficiency in various cooling environments.

Product Information

Standard Information

• Brand: Regal Beloit
• Part #: L6406

Technical Specifications

• Amperage Rating: 1.1 FLA
• Application Type: Refrigeration Motors
• Bearing Type: Sleeve
• Dimensions: 3.3 in Dia
• Enclosure Type: Open Ventilated
• Frequency Rating: 60 Hz
• Horsepower: 1/40 hp
• Number of Speeds: 1
• Rotation: CW
• Shaft Size: 5/16 in Dia x 2-1/4 in L
• Speed: 1500 rpm
• Temperature Rating: 40 deg C
• Type: Shaded Pole
• Voltage Rating: 115 VAC
