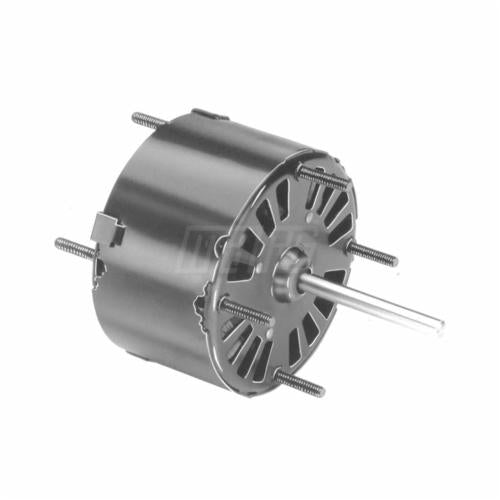

Regal Beloit D121 Fasco by Mars Shaded Pole Refrigeration Motor 1/70 hp 115 VAC

Product Description

The Regal Beloit D121 is a shaded pole refrigeration motor designed with a power of 1/70 horsepower. At 115 volts AC and a frequency of 60 Hertz, this motor operates at a speed of 1500 rpm. The open ventilated enclosure allows for optimal airflow, making it suitable for various refrigeration applications.

• Operates at 1500 rpm with 1/70 horsepower.
• Thermally protected with a rated voltage of 115 VAC.
• Designed for use in the airstream for efficient cooling.

Product Highlights

This motor is thermally protected and features four studs for mounting on 2.84-inch centers. It is constructed for use in refrigeration systems and is easy to install.

Product Information

Standard Information

• Brand: Regal Beloit
• Part Number: L6401

Technical Specifications

• Amperage Rating: 0.7 FLA
• Application Type: Refrigeration Motors
• Bearing Type: Sleeve
• Dimensions: 3.3 inches Diameter
• Enclosure Type: Open Ventilated
• Frequency Rating: 60 Hz
• Horsepower: 1/70 hp
• Number of Speeds: 1
• Rotation: CCW
• Shaft Size: 1/4 inches Diameter x 2-1/4 inches Length
• Speed: 1500 rpm
• Temperature Rating: 40 degrees Celsius
• Type: Shaded Pole
• Voltage Rating: 115 VAC
