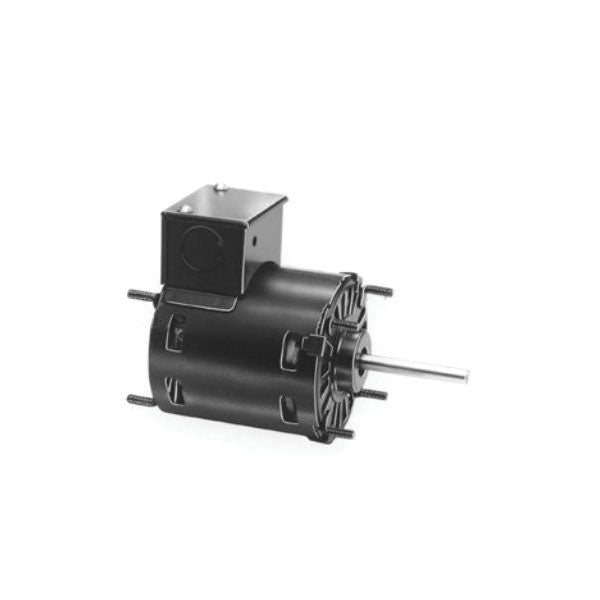

Regal Beloit D1142 Century Shaded Pole Replacement Motor 1/15 hp 115/230 VAC

Product Description

The Regal Beloit D1142 is a shaded pole replacement motor designed for use in refrigeration applications. This motor operates on both 115 and 230 volts, making it flexible for various electrical setups. With a horsepower of 1/15 and a speed of 1500 RPM, it delivers reliable performance in cooling systems.

• Totally enclosed shaded pole motor
• Thermally protected for safety
• Designed with mounting hardware included

Product Highlights

This shaded pole motor is thermally protected and recognized by CSA or UL standards, ensuring it meets safety requirements for electrical motors. It features extended hubs with rubber rings, allowing easy base mounting.

Product Information

Standard Information

• Brand: Regal Beloit
• Power: 1/15 hp

Technical Specifications

• Voltage Rating: 115/230 VAC
• Frequency Rating: 60 Hz
• Number of Phases: 1 ph
• Amperage Rating: 1.7 to 9 A
• Shaft Size: 5/16 in Dia x 2-1/2 in
• Rotation: CW
• Frame: NEMA 3.3
• Temperature Rating: 104 deg F Ambient
• Enclosure Type: Open Ventilated
• Speed: 1500 rpm
