Regal Beloit CT1102 Century Motor 1hp 115v 230v 1-Speed 56Cfr C-Face Thd EE

Product Description

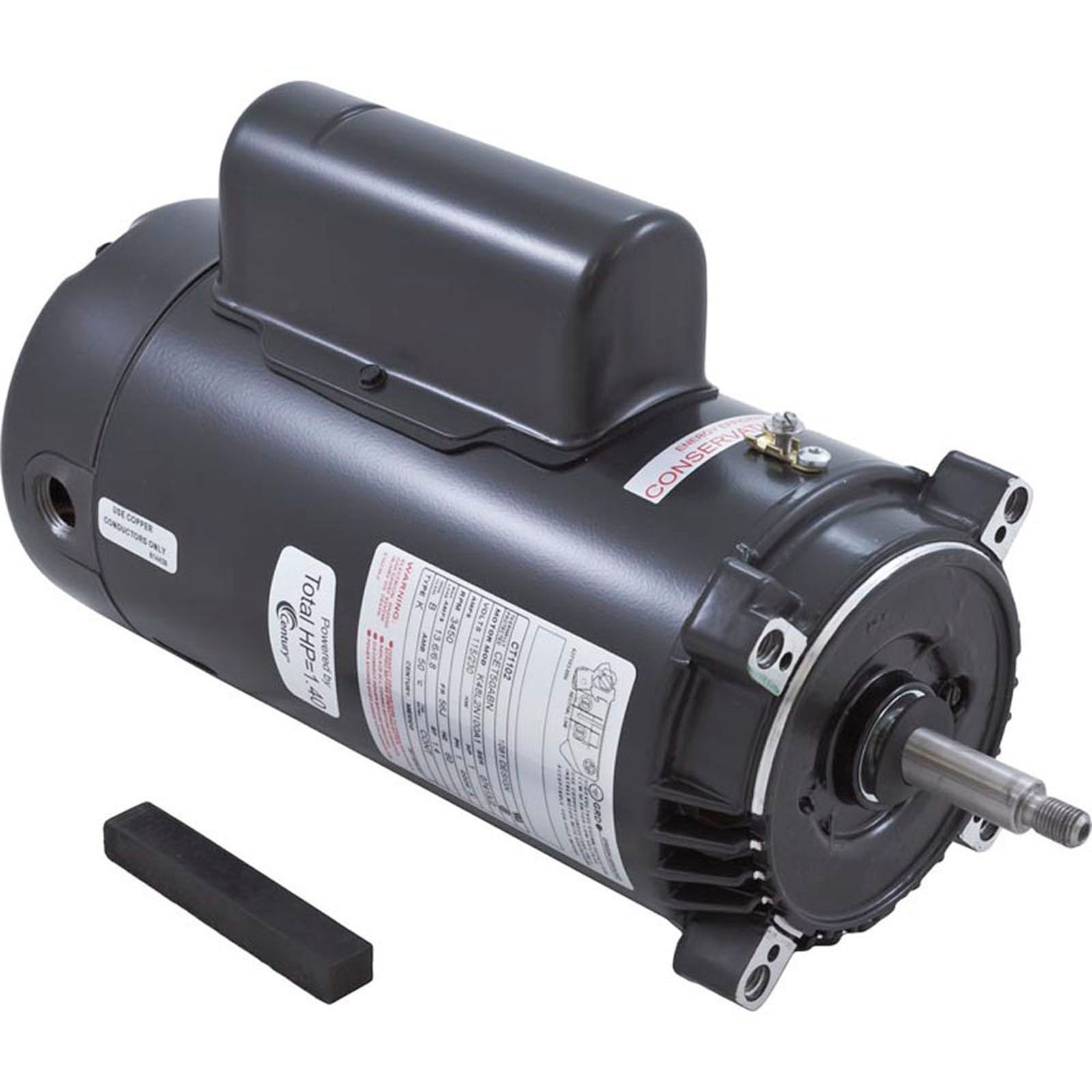

The REGAL BELOIT CT1102 Century Motor is a 1hp, 115v/230v, 1-speed motor with a 56Cfr C-Face Thd design. This motor is suitable for pool applications. It features a threaded motor shaft and a capacitor on top. It operates at 3450 RPM and is thermally protected.

• Suitable for pool applications
• Features a threaded motor shaft
• Thermally protected

Product Highlights

The REGAL BELOIT CT1102 is ideal for pool applications, offering a 1hp motor with a threaded shaft and thermal protection.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: CT1102
• Country of Origin: Mexico

Technical Specifications

• Motor Type: Pool
• Motor Amperage: 13.6A/6.8A
• Voltage: 115/230 V
• Phase: 1 Phase (1ph)
• Frame Type: 56C
• Speed: 3450 rpm
• Horsepower: 1.0hp
• Motor Shaft Type: Threaded
• Motor Style: C-Face

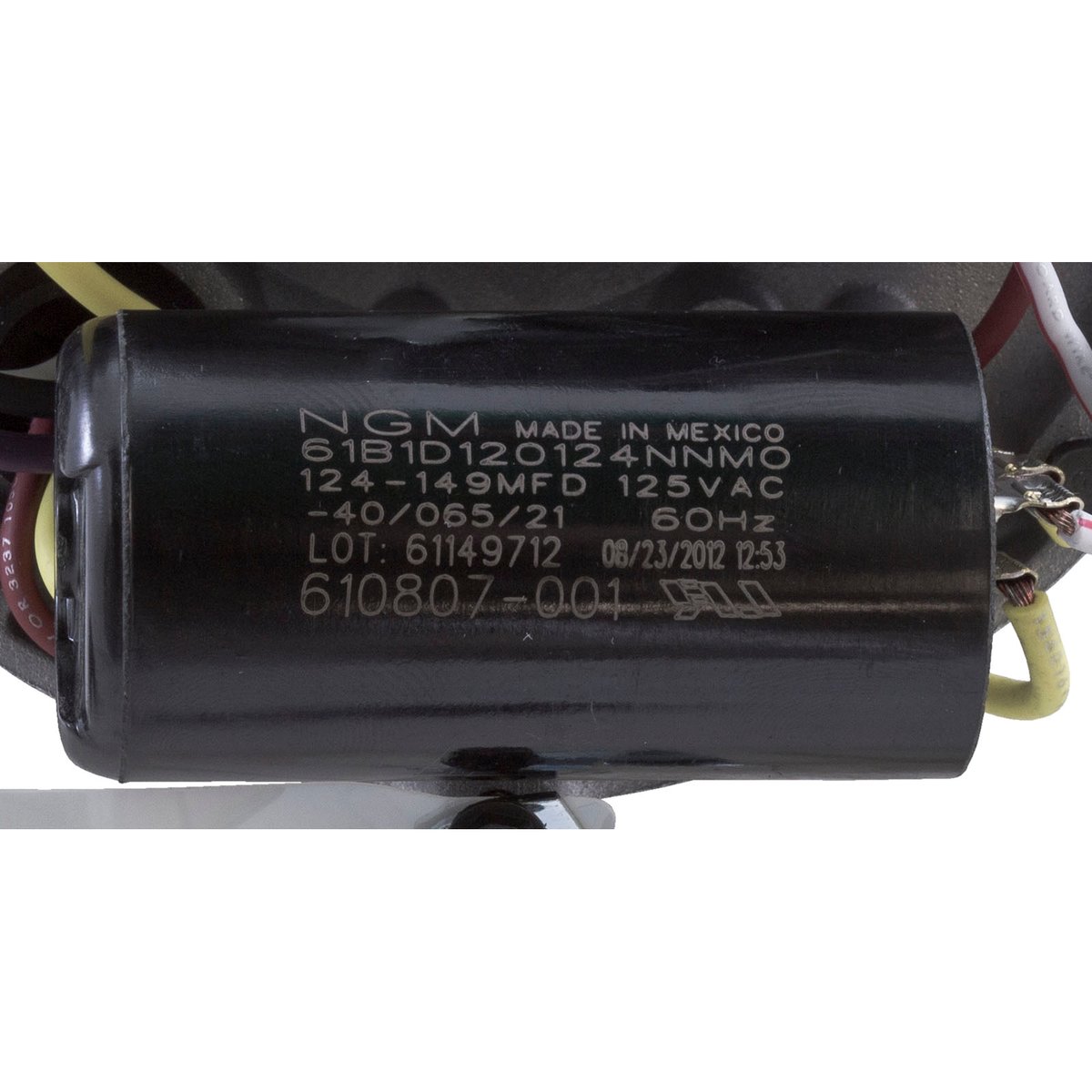

• Capacitor On Top: Yes
• Manufacturer: AO Smith/Century/Regal Beloit
• CAT: CT1102
• MODEL: K48L2N100A1
• TYPE: K
• FR: 56J
• HP: 1
• SF: 1.4
• PH: 1
• HZ: 60 Hz
• RPM: 3450
• ROT: CCWPE
• MAX AMPS: 13.6/6.8
• TIME: CONT
• ENCL: THERMALLY PROTECTED CET50ABN
• CODE: K
• INSUL CLASS: B
• Ambient Temperature: 50 deg C
• Bearing Type: Sealed Ball
• Brand: Regal Beloit
• Diameter: 6-1/2 Inch
• Duty Cycle: Continuous
• Efficiency Group: High
• Enclosure Design: Open Dripproof
• Finish Color: Satin Black
• Flange Material: Aluminum
• Frequency Rating: 60 Hz
• Full Load Amps: 13.6/6.8 A
• Insulation Class: B
• Item: Two-Compartment Pool Filter Motor

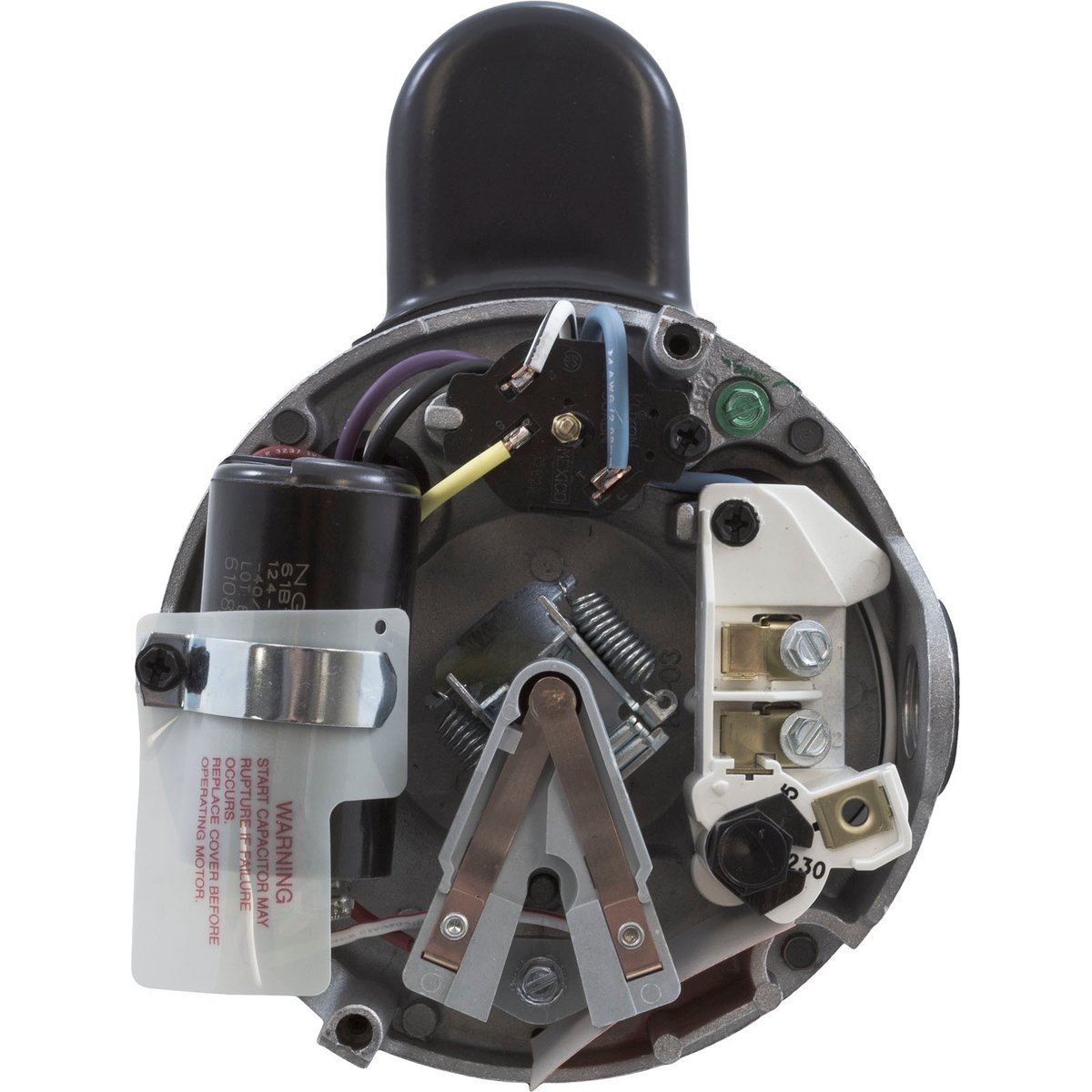

• Motor Design: Capacitor Start/Run
• Motor Shaft Rotation: CCWPE
• Motor Thermal Protection: Auto

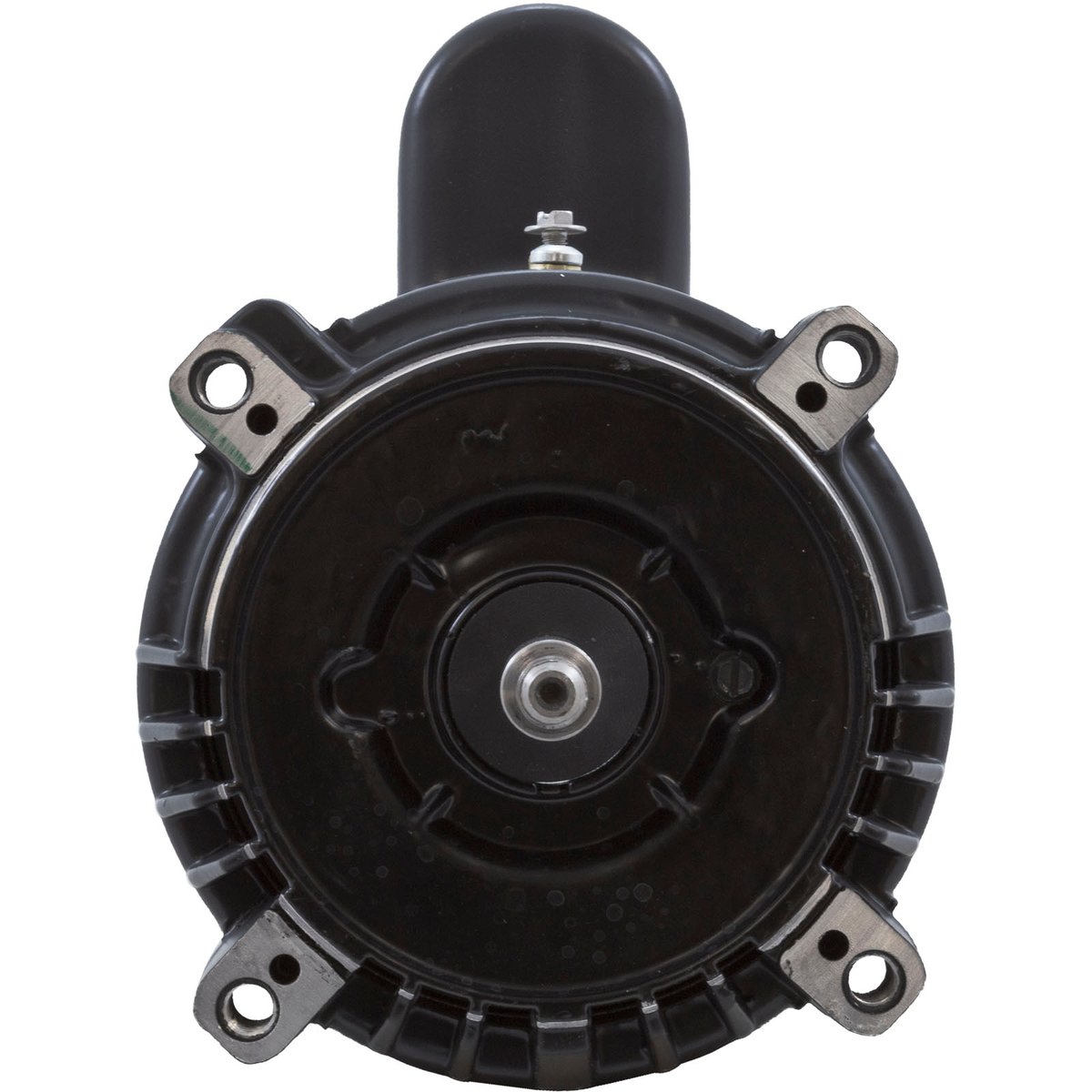

• Mounting Type: C-Face
• Number of Speed: 1-Speed
• Overall Length: 12.13 Inch
• Service Factor: 1.40
• Shaft Design: Threaded
• Shaft Diameter: 5/8 Inch
• Shaft Length: 2-9/16 Inch
• Shaft Material: 303 Stainless Steel
• Standards Approvals: UL Approved, UL Recognized (E25022), CSA Certified (LR43341)
• Sub Brand: Century®
• Voltage Rating: 115/230 V
• Output HP: 1 Hp
• Output KW: 0.75 kW
• Thermal Protection: Automatic
• Current: 6.8/13.6 A
• Number of Speeds: 1
• Electrical Type: Capacitor Start Capacitor Run
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Enclosure: Open Drip Proof
