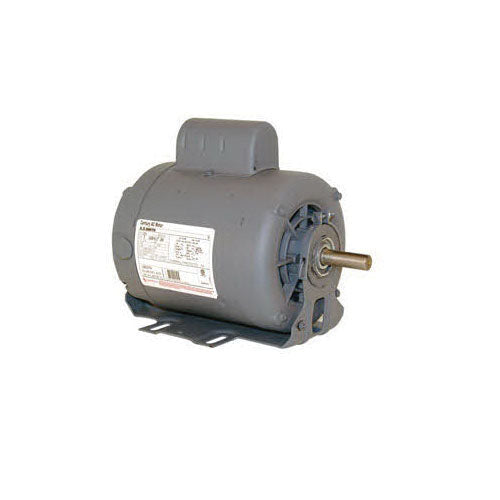

Regal Beloit C235 Century AC Motor, 1 hp, 208 to 230/115 VAC, 60 Hz, 1 ph, NEMA 56

Product Description

The Regal Beloit C235 Century AC motor is designed for various applications, delivering reliable performance in a wide range of settings. Its power output reaches one horsepower, and it operates on voltages of two hundred eight to two hundred thirty or one hundred fifteen VAC. The robust construction supports extensive use in equipment such as pumps, conveyors, and milking machines.

• High start torque for demanding applications
• Reversible rotation for flexibility in use
• Open enclosure style for efficient cooling

Product Highlights

This AC motor features a resilient base mounting style, making it easy to install. The NEMA 56 frame ensures compatibility with various industrial setups, and its speed of one thousand seven hundred twenty-five rpm meets many operational requirements.

Product Information

Standard Information

• Brand: Regal Beloit
• Part Number: L6380

Technical Specifications

• Amperage Rating: 6.2 to 6.3/12.6 A
• Application: Pumps, Conveyors and Milking Machines
• Application Type: Compressor Motors, Fan & Blower Motors
• Bearing Type: Ball
• Dimensions: 6.5 inches Dia x 11.4 inches L
• Enclosure Type: Open
• Frame: NEMA 56
• Frequency Rating: 60 Hz
• Horsepower: 1 hp
• Insulation Class: Class B
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Mounting Style: Resilient Base
• Number of Phases: 1 ph
• Package Weight: 31.0 lb
• Rotation: Reversible
• Service Factor: 1.25
• Special Features: Capacitor Start Motors
• Speed: 1725 rpm
• Temperature Rating: 40 deg C
• Voltage Rating: 208 to 230/115 VAC
