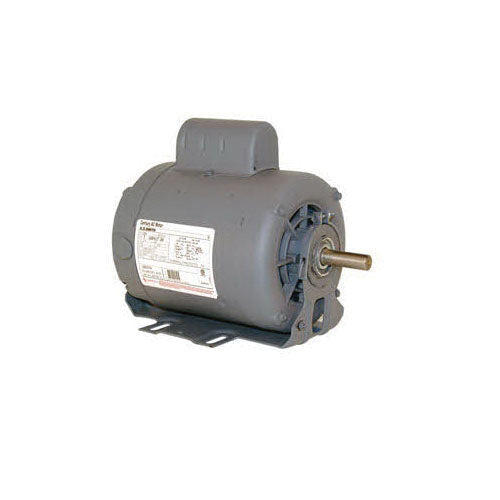

Regal Beloit C235 AC Motor 1 hp NEMA 56

Product Description

The REGAL BELOIT C235 AC Motor is a 1 hp motor operating at 208 to 230/115 VAC and 60 Hz. It features a NEMA 56 frame, operates at 1725 rpm, and has a resilient base mount with an open enclosure. Suitable for pumps, conveyors, and milking machines.

• High start torque
• 2, 4 and 6 pole
• CSA Certified, UL Listed

Product Highlights

This AC motor is designed for compressor, fan, and blower motor applications. It has ball-type bearings and reversible rotation.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: C235
• Country of Origin: Mexico

Technical Specifications

• Amperage Rating: 6.2 to 6.3/12.6 A
• Application: Pumps, Conveyors and Milking Machines
• Application Type: Compressor Motors, Fan & Blower Motors
• Bearing Type: Ball
• Enclosure Type: Open
• Frame: NEMA 56
• Frequency Rating: 60 Hz
• Horsepower: 1 hp
• Insulation Class: Class B
• Mounting Style: Resilient Base
• Number of Phases: 1 ph
• Rotation: Reversible
• Service Factor: 1.25
• Special Features: Capacitor Start Motors
• Speed: 1725 rpm
• Temperature Rating: 40 deg C
• Voltage Rating: 208 to 230/115 VAC
• Output KW: 0.75 kW
• Voltage: 115/208-230 V
• Current: 13.6/6.7-6.8 A
• Duty: Continuous
• Thermal Protection: No Protection
• Ambient Temperature: 40 °C
• KVA Code: K
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• Electrical Type: Capacitor Start Induction Run
• Starting Method: Across The Line
• Poles: 4
• Motor Orientation: Any
• Frame Material: Rolled Steel
• Shaft Type: NEMA 56
• Shaft Diameter: 0.625 in
• Enclosure: Drip Proof
