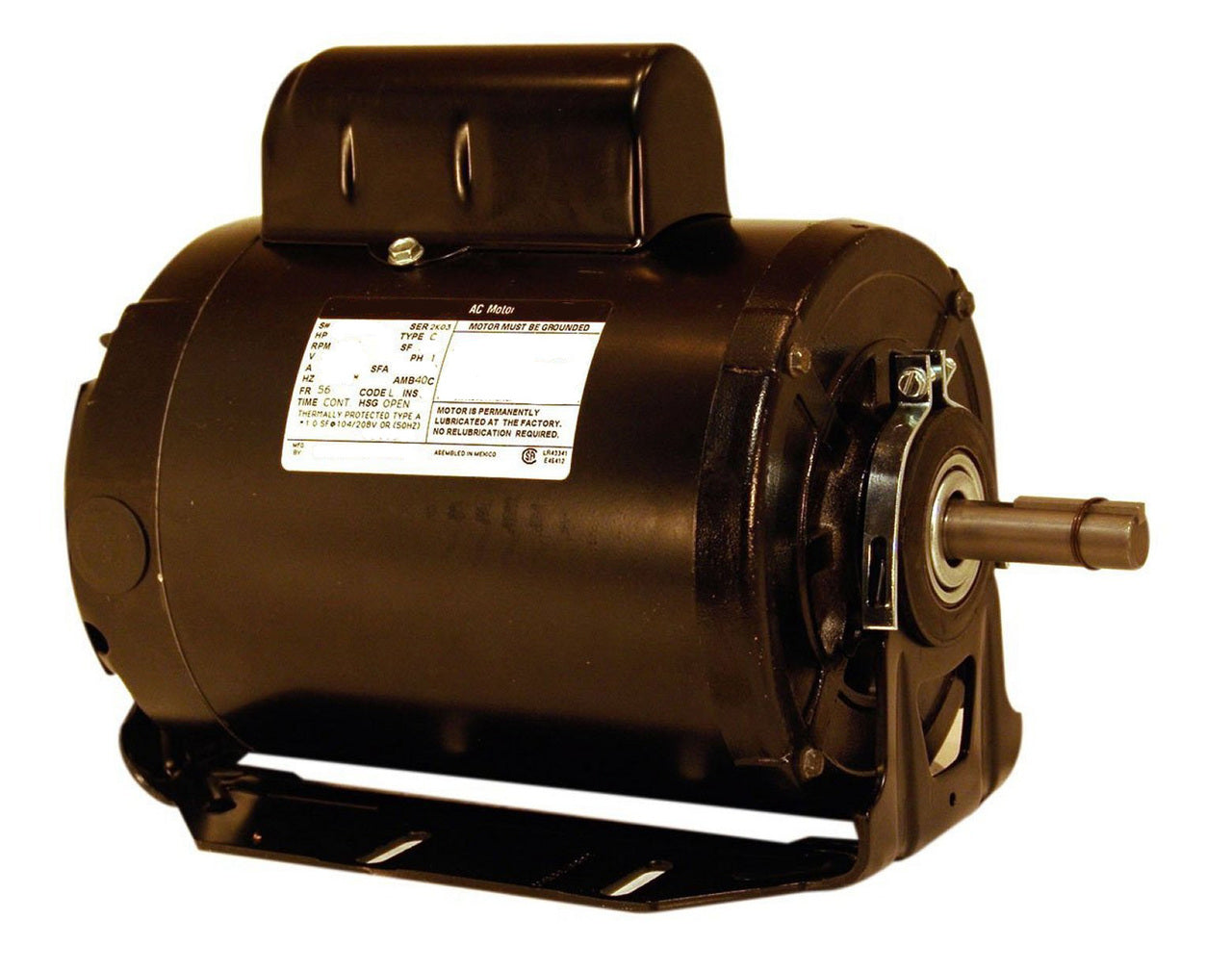

Regal Beloit C1483 Marathon C1483 5KC46LN0254X 0.75 hp AC Motor Open Drip-Proof Enclosure Replacement MPN

Product Description

The Regal Beloit C1483 is a Marathon 5KC46LN0254X continuous-duty AC motor designed for various applications. This motor operates at 0.75 horsepower with voltage ratings of one hundred fifteen to two hundred thirty VAC, suitable for a range of electrical needs. The open drip-proof enclosure ensures reliable performance even in damp environments, while the resilient base mount promotes stability and ease of installation.

• High start torque
• Suitable for pumps, conveyors, and milking machines
• Capacitor start motor with reversible rotation

Product Highlights

This AC motor is ideal for HVAC technicians and tradespeople, providing robust performance for compressors, fan and blower systems.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: C1483

Technical Specifications

• Amperage Rating: 10.6/5.3 A
• Application: Pumps, Conveyors and Milking Machines
• Application Type: Compressor Motors, Fan & Blower Motors
• Bearing Type: Sleeve
• Dimensions: 6.5 inches diameter x 10.8 inches length
• Enclosure Type: Open
• Frame: NEMA 56
• Frequency Rating: 60 Hz
• Horsepower: 0.75 hp
• Insulation Class: Class B
• Mfg Standards/Approvals: CSA Certified
• Mounting Style: Resilient Base
• Number of Phases: 1 ph
• Package Weight: 22.0 lb
• Rotation: Reversible
• Service Factor: 1
• Special Features: Capacitor Start Motors
• Speed: 1725 rpm
• Temperature Rating: 40 deg C
• Voltage Rating: 115/208 to 230 VAC
