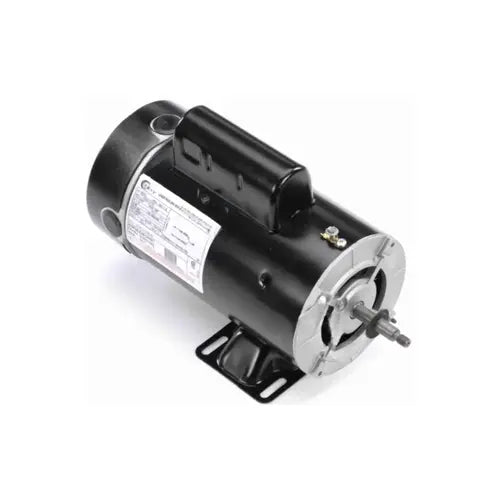

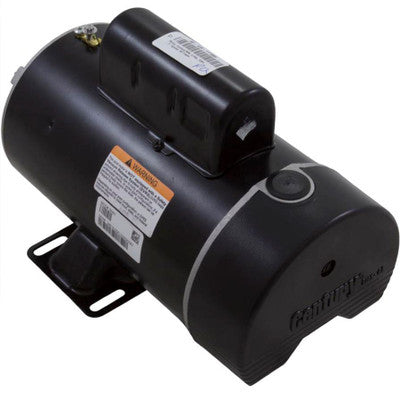

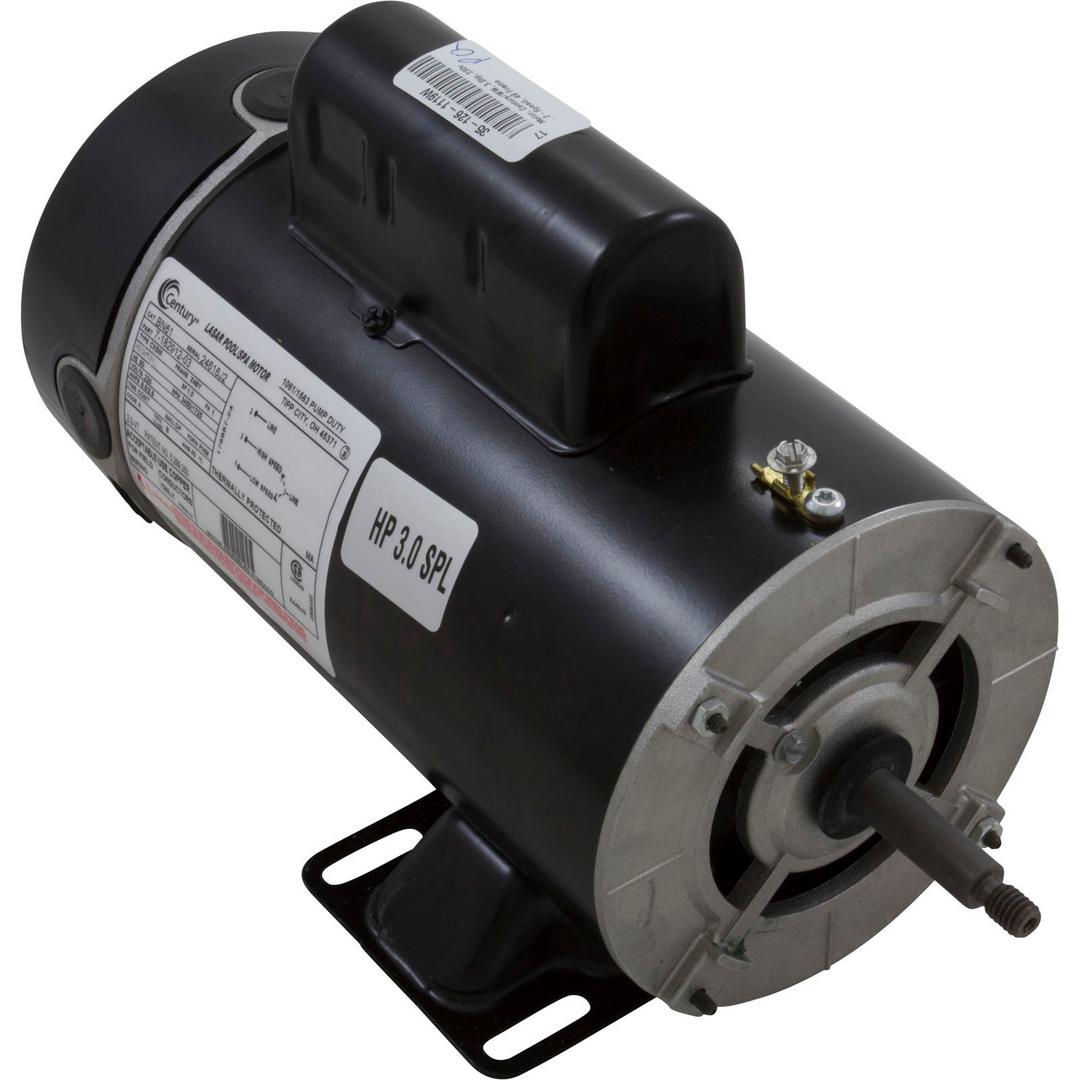

Regal Beloit BN61 Motor, Century, 3.0 SPL, 230V, 2 Speed, 48 Frame, EE

Product Description

The Regal Beloit BN61 is a Century Electric Motors pool motor. This 230V motor features dual speeds and a 48 Frame. It is designed for pool and spa pump applications. The motor has a threaded shaft and is thermally protected with auto-reset.

• Dual Speed
• 48 Frame
• 230V

Product Highlights

This Regal Beloit motor is designed for pool and spa pumps, offering reliable performance and thermal protection.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: BN61
• Country of Origin: USA

Technical Specifications

• Product Type: Pool Motor
• Manufacturer: Regal Beloit
• Pump Speed: Dual
• Motor Frame: 48 Frame
• Voltage: 230V
• P/N: BN61
• OEM: Regal Beloit America, Inc. (Century Electric Motors)
• OEM #: BN61
• Finish: Black
• Frame: 48Y
• Full Load Amps: 8.5/2.8
• HP: 2; 1/4
• Hz: 60
• Ins. Class: B
• Motor Application: Pump
• Motor Bearings: Ball
• Motor Design: Capacitor-Start
• Motor Enclosure Design: Open Dripproof
• Motor Mounting Type: Rigid Base
• Motor Service Factor: 1
• Motor Shaft Rotation: Counterclockwise Pulley End
• Motor Sub Application: Pool and Spa Pump
• Motor Thermal Protection: Automatic Reset
• Nameplate RPM: 3450/1725
• Phase: 1 Phase (1ph)
• RPM Range: 3001-3600
• Shaft: Threaded 3/8-16 UNC-2A RH
• Shaft Diameter: 0.5"
• Shaft Length: 2-5/16"
• Shaft Material: Steel
• Standards: 1563 Approvable, UL 1081
• Voltage Compatibility: 115/230, 120/240, 230, 240
• RPM: 3450/1725
• Application: Spa, above ground swimming pool and jetted tub pumps
• Type: CXSM
• OverallLength: 13.33 Inch
• FrequencyRating: 60 Hz
• MountingType: Thru-Bolt, Rigid Base
• StandardsApprovals: UL Approved, UL Recognized (E14663), CSA Certified (LR4642), Meets California Energy Commission Appliance Regulations 2008
• SubBrand: Century®
• VoltageRating: 230 V
• ShaftDesign: Threaded
• DutyCycle: Continuous
• ShaftHeight: 3-1/2 Inch
• NumberofSpeed: 2-2-VT
• MotorShaftRotation: CCWPE
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 2-Speed
• Ambient temperature: 40 degrees Celsius
• Thrust HP: 2
• RPMs Min: 1725
• RPMs Max: 3450
• Amps Low Speed: 2.8
• Frequency Rating (Hz): 60
• Amps High Speed: 8.5
• Volts@Hz: 230V@60Hz
• HP cd: 2.0
• HP spl: 4.0
• Amps High/Low: 8.5 / 2.8
• Ambient (C): 50
• Nema/IEC Frame: 48Y
• Motor Amperage: 8.5A/2.8A
• Frame Type: 48Y
• Total Horsepower: 2.0thp
• Motor Shaft Type: Threaded
• Motor Style: Thru Bolt
• Capacitor On Top: Yes
• Service Factor: 1
