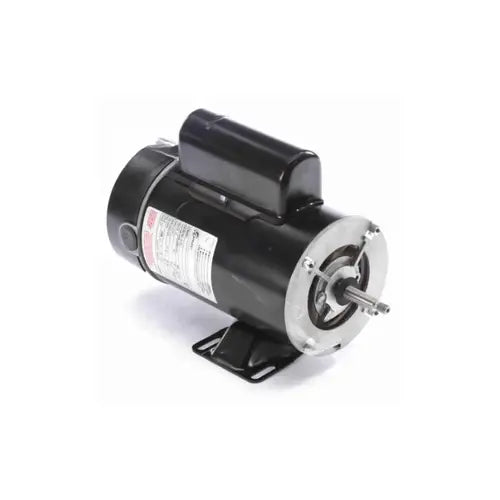

Regal Beloit BN50V1 Motor, Century, 1.5hp, 115v, 2-spd, SF 1.00, 48y Frame

Product Description

The REGAL BELOIT BN50V1 is a Century spa motor with 1.5hp, designed for 115v operation and two-speed functionality. It features a 48Y frame and is suitable for spa applications. This motor has 12 & 3 O’Clock Conduit Entries and Class B Insulation. It is designed for thru-bolt mounting and has a 3-1/2” shaft height.

• 12 & 3 O’Clock Conduit Entries
• 40°C Ambient, Class B Insulation
• Rotation: CCW Pump End

Product Highlights

This 1.5hp motor is designed for spa applications, featuring two-speed operation and a 48Y frame.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: BN50V1
• Country of Origin: Mexico

Technical Specifications

• Motor Type: Spa
• Motor Amperage: 13.5A/4.7A
• Voltage: 115v
• Phase: 1 Phase (1ph)
• Frame Type: 48Y
• Speed: 2 Speed (2-Spd)
• Horsepower: 1.0/0.125hp
• Total Horsepower: 1.5thp
• Motor Shaft Type: Threaded
• Motor Style: Thru Bolt
• Capacitor On Top: Yes
• Manufacturer: AO Smith/Century/Regal Beloit
• Output HP: 1.5/.188 Hp
• Output KW: 1.1 kW
• RPM: 3450/1725 rpm
• Service Factor: 1.00
• Enclosure: Open Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 13.5/4.7 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• Number of Speeds: 2
• Electrical Type: Cap Start Low Speed, Psc High Speed
• Starting Method: Across The Line
• Poles: 2/4
• Rotation: Counterclockwise Pump End
• Mounting: Thru Bolt
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Diameter: 0.500 in
• Overall Length: 13.21 in
• Frame Length: 8.00 in
• Shaft Extension: 2.375 in
• Application: Spa, above ground swimming pool and jetted tub pumps
• Diameter: 5-5/8 Inch
• Full Load Amps: 13.5/4.7 A
• Item: Pool and Spa Pump Motor
• Mounting Type: Thru-Bolt, Rigid Base
• Sub Brand: Century®
• Thrust Horsepower: 1.5
• Voltage Rating: 115 V
• Enclosure Design: Open Dripproof
• Shaft Length: 1-13/16 Inch
• Shaft Material: Stainless Steel
• Shaft Height: 3-1/2 Inch
• Motor Thermal Protection: Auto
• Motor Design: Capacitor Start on Low Speed, PSC on High Speed
• Motor Shaft Rotation: CCWSE
• Shaft Design: 3/8 Threaded
• Thrust HP: 0.188
• RPMs Min: 1725
• RPMs Max: 3450
• Amps Low Speed: 4.7
• Frequency Rating (Hz): 60
• Amps High Speed: 13.5
• Motor Capacitor Type: Start
• Motor Enclosure Type: Open Drip Proof
• Motor Frame Size: 48Y
