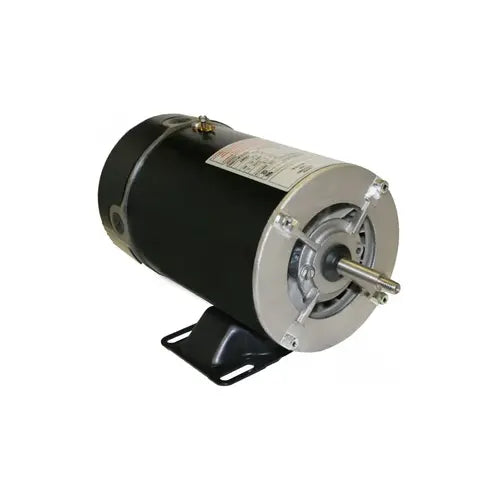

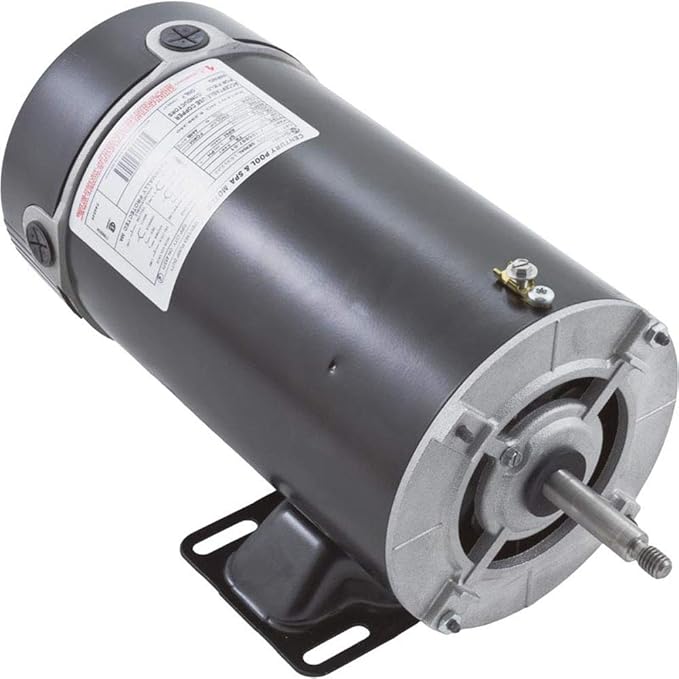

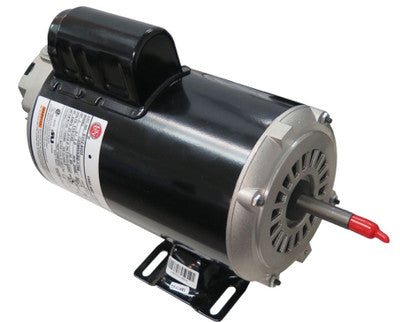

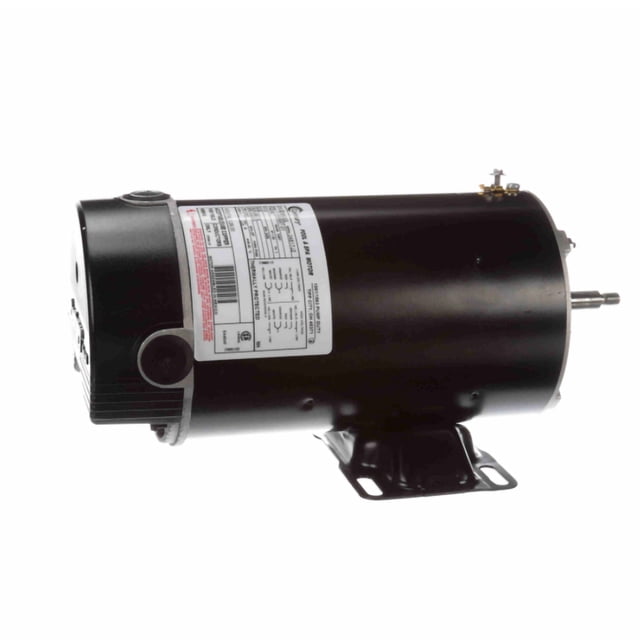

Regal Beloit BN40SS Thru Bolt 2Hp 115/230V

Product Description

The Regal Beloit BN40SS is a 2 HP motor ideal for jetted tubs, spas, and above-ground swimming pools. It features 19 and 3 O'clock conduit entries and CCW pump end rotation. Designed to withstand ambient temperatures up to 40C and constructed with Class B insulation. The motor's capacitor start allows for improved starting ability.

• 19 and 3 O'clock Conduit Entries
• Rotation: CCW Pump End
• 3-1/2". Shaft Height

Product Highlights

Durable and efficient motor for various water flows, designed for easy mounting and improved starting ability.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: BN40SS

Technical Specifications

• Brand: REGAL BELOIT AMERICA INC
• Model Name: BN40SS
• Horsepower: 2 Horsepower
• Material: Copper
• AmbientTemperature: 40 deg C
• RPM: 3450
• ShaftHeight: 3-1/2 Inch
• VoltageRating: 115/230 V
• DutyCycle: Continuous
• MotorDesign: Capacitor Start
• Frame: 48Y
• FullLoadAmps: 10.0/20.0 A
• ServiceFactor: 1.00
• StandardsApprovals: UL 1081/1563/1795 Approved, UL Recognized (E14663), CSA Certified (LR4642)
• ShaftDesign: Threaded
• MotorShaftRotation: CCWPE
• Phase: 1-Phase
• ShaftMaterial: Stainless Steel
• MountingType: Thru-Bolt, Rigid Base
• InsulationClass: B
• ShaftDiameter: 1/2 Inch
• Application: Spa, above ground swimming pool and jetted tub pumps
• FrequencyRating: 60 Hz
• NumberofSpeed: 1-Speed
• OverallLength: 13.33 Inch
• Diameter: 5-5/8 Inch
• ShaftLength: 2-5/16 Inch
• MotorThermalProtection: Auto
• Bearing Type: Sealed Ball
• EnclosureDesign: Open Dripproof
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Service Factor: 1
• Motor Frame Size: 48Y
• RPMs Min: 3450
• Motor Capacitor Type: Start
• RPMs Max: 3450
• Frequency Rating (Hz): 60
• Motor Shaft Rotation: Counterclockwise Pulley End
• Motor Thermal Protection: Automatic Reset
• Motor Amperage: 20.0A/10.0A
• Speed: 1 Speed (1-Spd)
• Motor Shaft Type: Threaded
• Motor Style: Thru Bolt
• Manufacturer: AO Smith/Century/Regal Beloit
• Volts: 230/115 V
• Pump operating phase: Single Speed
• Height: 9.5 in
