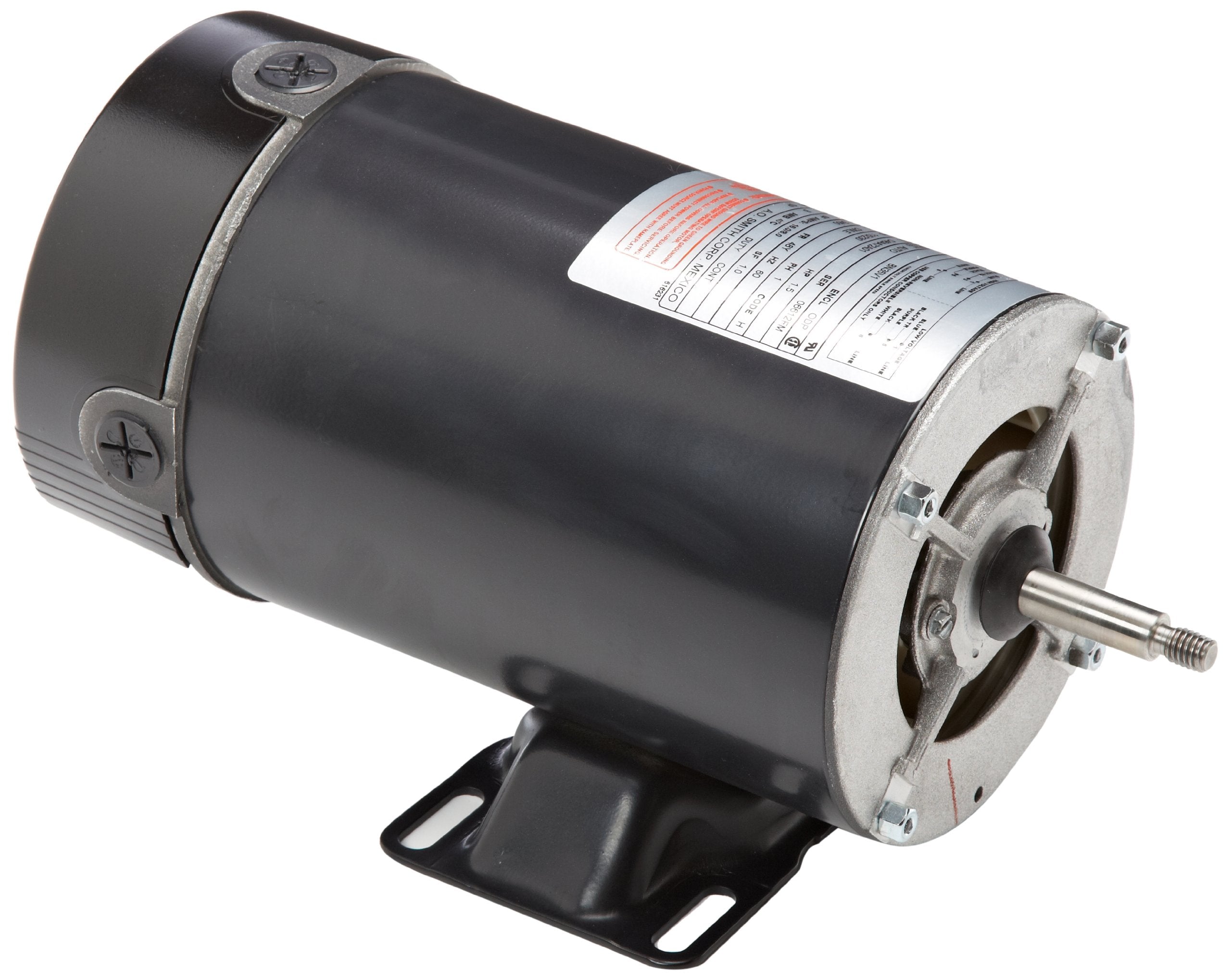

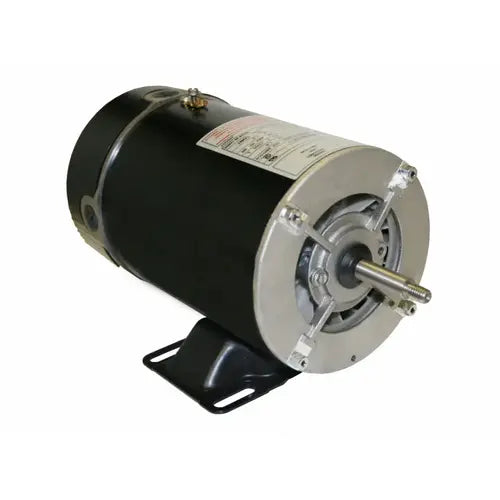

Regal Beloit BN35V1 AO Smith Motor 1.5 HP 230-115 Volt Single Speed Motor

Product Description

The REGAL BELOIT BN35V1 AO Smith Motor is a 1.5 HP, 230-115 Volt single-speed motor. Designed for above-ground pool and spa pumps, it features a single-phase, open drip-proof design. This motor operates at 3450 RPM and includes automatic thermal overload protection. It is a leading choice for pool professionals and homeowners.

• Features 12 & 3 O'clock Conduit Entries
• Rotation is CCW Pump End
• Has Class B Insulation

Product Highlights

This 1.5 HP motor is suitable for pool and spa pumps, offering reliable performance and protection.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: BN35V1
• Country of Origin: China

Technical Specifications

• Speed: 3450 RPM
• Voltage: 115/230 V
• Horsepower: 1.5 hp
• Frequency: 60 Hz
• Full Load Amperes: 8.0/16.0
• Service Factor: 1.0
• Frame: 48Y
• Shaft: Threaded
• Overload Protector: Auto
• Ambient Temperature: 40 deg C
• Insulation Class: B
• Rotation: CCW Pump End
• Shaft Height: 3-1/2 Inch
• Mounting Type: Thru-Bolt, Rigid Base
• Bearing Type: Ball
• Enclosure Design: Open Dripproof
• Phase: 1 Phase (1ph)
• Motor Shaft Type: Thru Bolt
• Motor Thermal Protection: Auto
• Shaft Diameter: 1/2 Inch
• Overall Length: 12.08 Inch
• Diameter: 5-5/8 Inch
• Shaft Length: 1-13/16 Inch
• StandardsApprovals: UL 1081/1563/1795 Approved, CSA Certified
