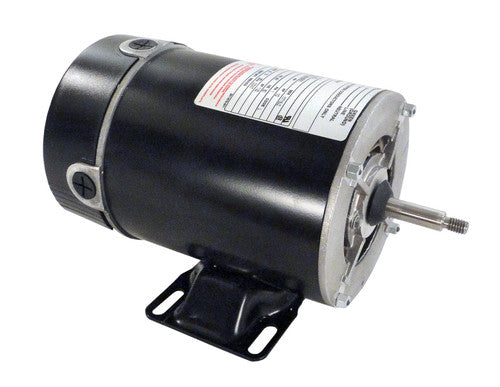

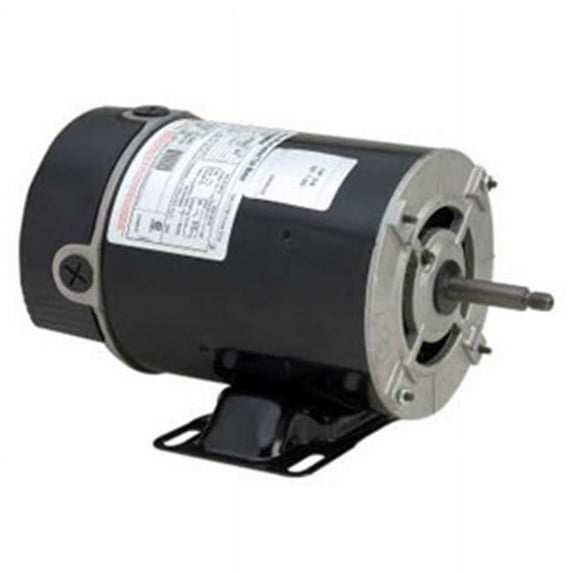

Regal Beloit BN23V1 Century Pool Pump Motor 1/2 HP 115 V

Product Description

The REGAL BELOIT BN23V1 Century Pool Pump Motor is a 1/2 HP motor designed for pool and spa pump applications. Operating at 115 V and 3450 RPM, this motor features a 48Y frame and a drip-proof enclosure. It is thermally protected and suitable for continuous duty. Designed with a stainless steel threaded shaft, it ensures durability and efficient performance for spa, above ground swimming pool and jetted tub pumps.

• Features 12 & 3 O'clock Conduit Entries
• Designed with a 3-1/2" Shaft Height
• Suitable for 40°C Ambient Temperatures

Product Highlights

This 1/2 HP motor is ideal for pool and spa pumps, offering reliable performance and robust construction.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: BN23V1
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• Output HP: 1/2 Hp
• Output KW: 0.37 kW
• Voltage: 115 V
• Speed: 3450 rpm
• Service Factor: 1
• Frame: 48Y
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 deg C
• Frequency: 60 Hz
• Current: 7.0 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• Number of Speeds: 1
• Electrical Type: Split Phase, Induction Run, Single Or Dual Voltage
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting Type: Thru Bolt, Rigid Base
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 3/8 Threaded
• Overall Length: 10.84 Inch
• Frame Length: 6.13 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 1.812 in
• UPC: 786674056276
• VoltageRating: 115 V
• DutyCycle: Continuous
• MotorDesign: Split-Phase
• FullLoadAmps: 7 A
• StandardsApprovals: UL 1081/1563/1795 Approved, CSA Certified
• RPM: 3450
• ShaftDesign: Threaded
• MotorShaftRotation: CCWPE
• ShaftMaterial: Stainless Steel
• ThrustHorsepower: 0.5
• HP: 0.5
• Type: SP
• Application: Spa, above ground swimming pool and jetted tub pumps
• FrequencyRating: 60 Hz
• MotorThermalProtection: Auto
• Bearing Type: Ball
• EnclosureDesign: Open Dripproof
• ShaftHeight: 3-1/2 Inch
• Shaft Length: 1-13/16 Inch
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Motor Frame Size: 48Y
• RPMs Min: 3450
• RPMs Max: 3450
• Amps Low Speed: 7
• Frequency Rating (Hz): 60
• Motor Shaft Rotation: Counterclockwise Pulley End
• Amps High Speed: 7
• OEM: Regal Beloit America, Inc. (Century Electric Motors)
• OEM #: BN23V1
• Ins. Class: B
• Motor Application: Pump
• Motor Bearings: Ball
• Motor Mounting Type: Rigid Base
• Motor Service Factor: 1
• Motor Sub Application: Pool and Spa Pump
• Nameplate RPM: 3450
• RPM Range: 3001-3600
• Shaft: Threaded 3/8-16 UNC-2A RH
• Shaft Material: Steel
• Standards: CSA Pending, UL
• Voltage Compatibility: 115, 120
• Fountain, pond & pool pump type: Above-Ground Pool Pump
• Volts: 115 V
• Pump operating phase: Single Speed
