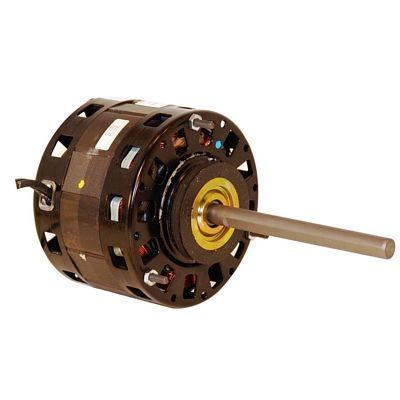

Regal Beloit BL6505 Century FLL Single Shaft Fan/Blower AC Motor, 1/5 to 1/10 hp

Product Description

The Regal Beloit BL6505 is a Century FLL single shaft fan/blower AC motor designed for heating and cooling applications. This motor operates from one-fifth to one-tenth horsepower and is rated for one phase at a voltage of 115 VAC. It is designed for continual airflow, making it ideal for use in furnaces and air handlers.

• Continuous air-over design
• Reversible rotation
• NEMA 42Y frame

Product Highlights

The BL6505 features an open enclosure and is equipped with resilient mounting rings. The motor is CSA certified and UL listed, ensuring its compliance with safety standards.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: BL6505

Technical Specifications

• Amperage Rating: 3.2/2.1/1.7 A
• Application: Furnaces and Air Handlers
• Application Type: Air Conditioner Motors, Fan Coil Motors
• Bearing Type: Sleeve
• Dimensions: 5 in Dia x 9.38 in L
• Enclosure Type: Open
• Frame: NEMA 42Y
• Frequency Rating: 60 Hz
• Horsepower: 1/5 to 1/10 hp
• Includes: Resilient Mounting Rings
• Insulation Class: Class B
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Number of Phases: 1 ph
• Number of Speeds: 3
• Package Weight: 10.0 lb
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 in Dia
• Speed: 1075 rpm
• Temperature Rating: 40 deg C
• Type: FLL
• Voltage Rating: 115 VAC
