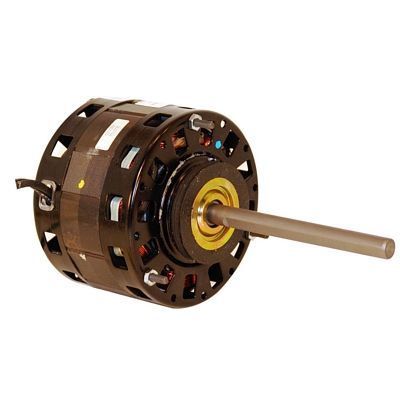

Regal Beloit BL6414 Century Shaded Pole FE Single Shaft Fan/Blower AC Motor, 1/5 to 1/10 hp, 115 VAC

Product Description

The Regal Beloit BL6414 is a shaded pole fan and blower AC motor designed for continuous duty applications. With a horsepower range of one fifth to one tenth and a voltage rating of one hundred fifteen volts, this motor is suitable for various uses. Its design is compliant with NEMA standards and operates at a speed of one thousand fifty revolutions per minute.

• Continuous duty rated for reliable performance
• Compatible with furnace blowers, attic ventilators, and air handlers
• Open enclosure and includes resilient mounting rings

Product Highlights

This motor is ideal for HVAC systems and ventilation. It features three-speed options and a standard rotation of counterclockwise lead end. Constructed for durability and efficiency, the BL6414 meets CSA and UL standards.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: BL6414

Technical Specifications

• Amperage Rating: 6.5/4/3 A
• Application: Furnace blowers, attic ventilators, air handlers
• Application Type: Fan coil motors
• Bearing Type: Sleeve
• Dimensions: 5 inches Dia x 9.38 inches L
• Enclosure Type: Open
• Frame: NEMA 42Y
• Frequency Rating: 60 Hz
• Horsepower: 1/5 to 1/10 hp
• Includes: Resilient mounting rings
• Insulation Class: Class A
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Number of Phases: 1 ph
• Number of Speeds: 3
• Package Weight: 11.0 lb
• Rotation: CCWLE
• Service Factor: 1
• Shaft Size: 1/2 inch Dia
• Speed: 1050 rpm
• Temperature Rating: 40 deg C
• Type: Shaded pole FE
• Voltage Rating: 115 VAC
