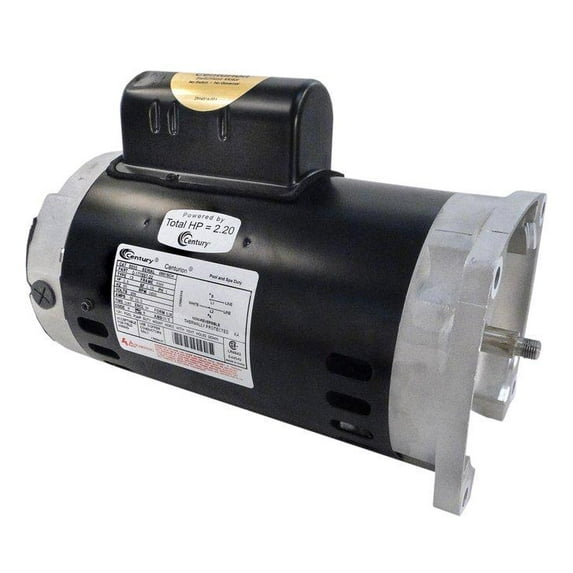

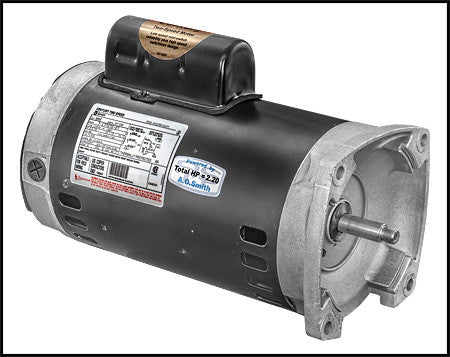

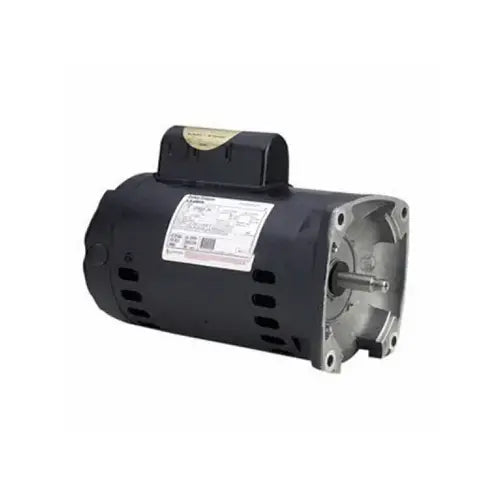

Regal Beloit B985 Epc Motor 2-0.3 HP 230V 2 Speed

Product Description

The Regal Beloit B985 Epc Motor features a permanent split capacitor, operates on a single phase, and is drip-proof. This motor delivers 2-0.3 HP at 230V with 2 speeds. It is designed for pool and spa applications, offering efficient and reliable performance. The motor meets California Energy Commission Appliance Regulations 2008.

• Permanent Split Capacitor
• Single Phase
• Drip proof
• 2-0.3 Hp 230V 2 Speed

Product Highlights

Designed for pool and spa applications, this motor provides efficient and reliable performance.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B985
• Country of Origin: United States

Technical Specifications

• Brand: Regal Beloit
• MPN: B985
• Type: Up-Rated, CXPM
• RPM: 3450/1725
• Frame: 56Y
• OverallLength: 14.40 Inch
• Phase: 1-Phase
• Bearing Type: Sealed Ball
• AmbientTemperature: 50 deg C
• FrequencyRating: 60 Hz
• FullLoadAmps: 10.0/3.5 A
• HP: 2/0.33
• Item: Pool and Spa Pump Motor
• MountingType: C-Face
• SubBrand: Century®
• VoltageRating: 230 V
• EnclosureDesign: Open Dripproof
• FlangeMaterial: Aluminum
• ShaftDesign: Threaded
• InsulationClass: B
• ShaftLength: 1-7/8 Inch
• ShaftMaterial: 303 Stainless Steel
• ShaftDiameter: 5/8 Inch
• DutyCycle: Continuous
• MotorThermalProtection: Auto
• EfficiencyGroup: High
• NumberofSpeed: 2-2-VT
• MotorDesign: Capacitor Start/Run on Low Speed, PSC on High Speed
• FlangeType: Square
• ServiceFactor: 1.10
• MotorShaftRotation: CCWPE
• Voltage: 230V
• Application: Above Ground,Pool,Spa
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 2-2-VT
• Motor Rating: Up-Rated
• Motor Frame Size: 56Y
• RPMs Min: 1725
• Motor Capacitor Type: Start,Run
• RPMs Max: 3450
• Amps Low Speed: 3.5
• Frequency Rating (Hz): 60
• Motor Shaft Rotation: Counterclockwise Pulley End
• Amps High Speed: 10
• Motor Thermal Protection: Automatic Reset
• Horsepower: 0.3 HP
• Diameter: 6-1/2 Inch
