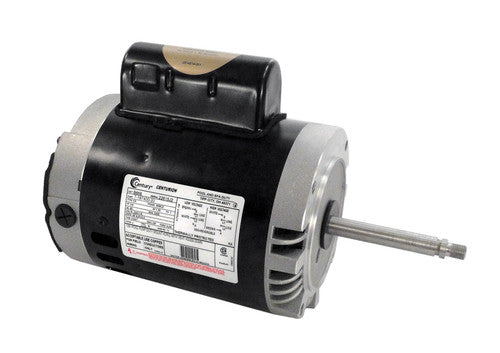

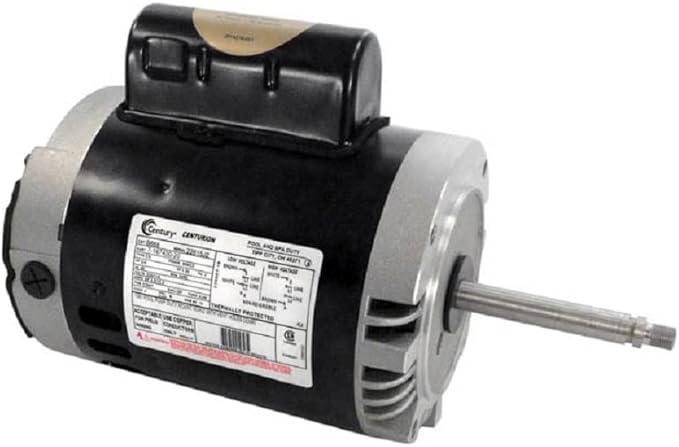

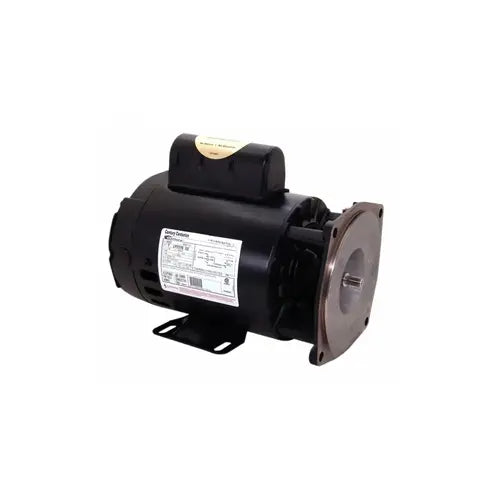

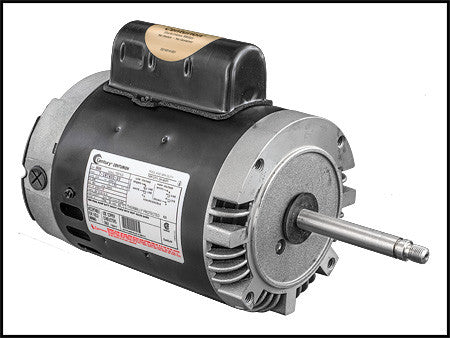

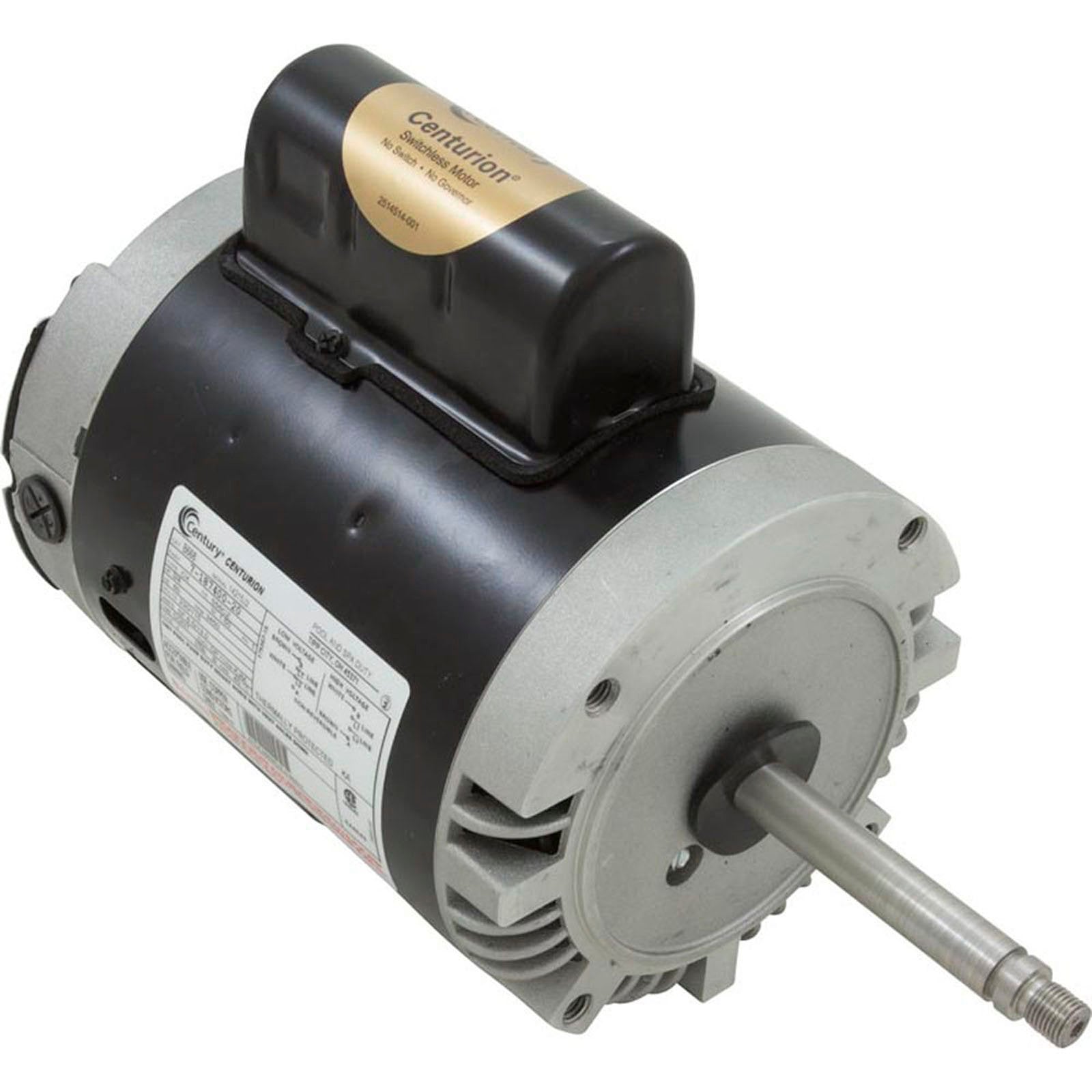

Regal Beloit B668 Letro Motor 0.75 hp 115/230V

Product Description

The REGAL BELOIT B668 Letro motor is a replacement pool cleaner pump motor. Designed with ball bearings and a stainless steel shaft, this motor is built to last and protects against wear and tear. It features a 40C ambient temperature rating and Class B insulation to prevent overheating. Operates at 3450 RPM and 60 Hz.

• Ball Bearings
• CW Non-Reversible
• Aluminum Adapter Bracket

Product Highlights

The REGAL BELOIT B668 is ideal for pool cleaning applications, offering robust construction and reliable thermal protection.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B668
• Country of Origin: China

Technical Specifications

• Brand: Regal Beloit
• Voltage: 115V,230V
• Horsepower: 0.75 horse power
• Material: Aluminum, Stainless Steel
• Manufacturer: REGAL BELOIT AMERICA - EPC
• Diameter: 6-1/2 Inch
• RPM: 3450
• Frame: 56CZ
• Type: CX
• OverallLength: 13.87 Inch
• Phase: 1-Phase
• Bearing Type: Sealed Ball
• AmbientTemperature: 40 deg C
• FrequencyRating: 60 Hz
• FullLoadAmps: 6.5/13.0 A
• HP: 0.75
• Item: Replacement Pool Cleaner Pump Motor
• MountingType: C-Face, No Base
• SubBrand: Century®
• VoltageRating: 115/230 V
• EnclosureDesign: Open Dripproof
• FlangeMaterial: Aluminum
• ThrustHorsepower: 1.13
• ShaftDesign: Threaded
• InsulationClass: B
• ShaftLength: 4-7/16 Inch
• ShaftMaterial: 303 Stainless Steel
• ShaftDiameter: 5/8 Inch
• DutyCycle: Continuous
• MotorThermalProtection: Auto
• EfficiencyGroup: Standard
• MountingPosition: Horizontal
• MotorDesign: PSC
• ServiceFactor: 1.50
• MotorShaftRotation: CCWPE
• Shaft Diameter: 0.625 inch
• Shaft Length: 4.4375 inch
• Motor Enclosure Type: Open Drip Proof
• Flange Type: Round
• Service Factor: 1.5
• Motor Frame Size: 56CZ
• RPMs Min: 3450
• RPMs Max: 3450
• Amps Low Speed: 6.5
• Frequency Rating (Hz): 60
• Motor Shaft Rotation: Counterclockwise Pulley End
• Amps High Speed: 13
• Motor Thermal Protection: Automatic Reset
• Series: Letro
