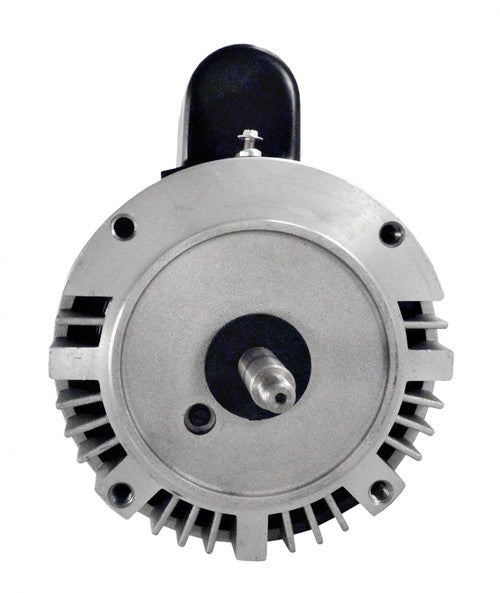

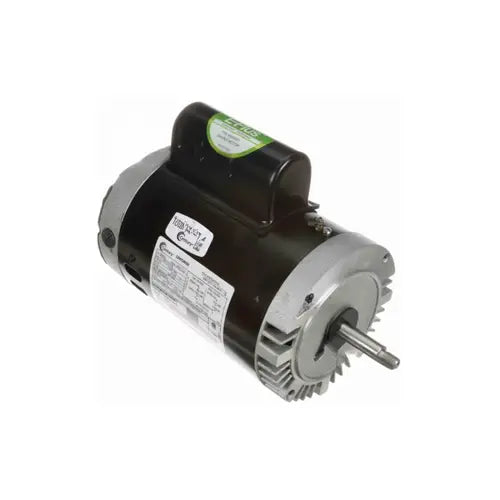

Regal Beloit B654 Pool and Spa Pump Motor 1 HP 115/208-230 V 56J Threaded Shaft

Product Description

The REGAL BELOIT B654 full-rated pool and spa pump motor operates at 1 HP and 3450 RPM with a voltage of 115/208-230 V. It features a 56J frame and a threaded shaft. Designed for residential, commercial, and industrial applications, this motor meets high standards of quality and efficiency.

• Energy efficient
• Aluminum NEMA "C" brackets
• 7/16-20 UNF-2A RH threaded shaft

Product Highlights

Full-rated motor with threaded shaft, designed for pool and spa pumps. It operates at 3450 RPM and is energy efficient.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B654

Technical Specifications

• Diameter: 6-1/2 Inch
• RPM: 3450
• Frame: 56J
• Type: Full-Rated, CX
• Overall Length: 13.19 Inch
• Brand: Regal Beloit
• Phase: 1-Phase
• Bearing Type: Sealed Ball
• Ambient Temperature: 50 deg C
• Finish Color: Black
• Frequency Rating: 60 Hz
• Full Load Amps: 6.4-5.9/11.8 A
• Horsepower: 1
• Item: Pool and Spa Pump Motor
• Mounting Type: C-Face, No Base
• Sub Brand: Century®
• Voltage Rating: 115/208-230 V
• Enclosure Design: Open Dripproof
• Flange Material: Aluminum
• Shaft Design: Threaded
• Insulation Class: B
• Shaft Length: 2-9/16 Inch
• Shaft Material: 303 Stainless Steel
• Shaft Diameter: 5/8 Inch
• Duty Cycle: Continuous
• Motor Thermal Protection: Automatic Reset
• Efficiency Group: High
• Number of Speed: 1-Speed
• Motor Design: PSC
• Service Factor: 1.40
• Motor Shaft Rotation: CCWPE
• Voltage: 115V,208V,230V
• Application: Above Ground,Pool,Spa
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Motor Rating: Full-Rated
• Thrust HP: 1.4
• RPMs Min: 3450
• RPMs Max: 3450
• Amps Low Speed: 6.4
• Amps High Speed: 11.8
